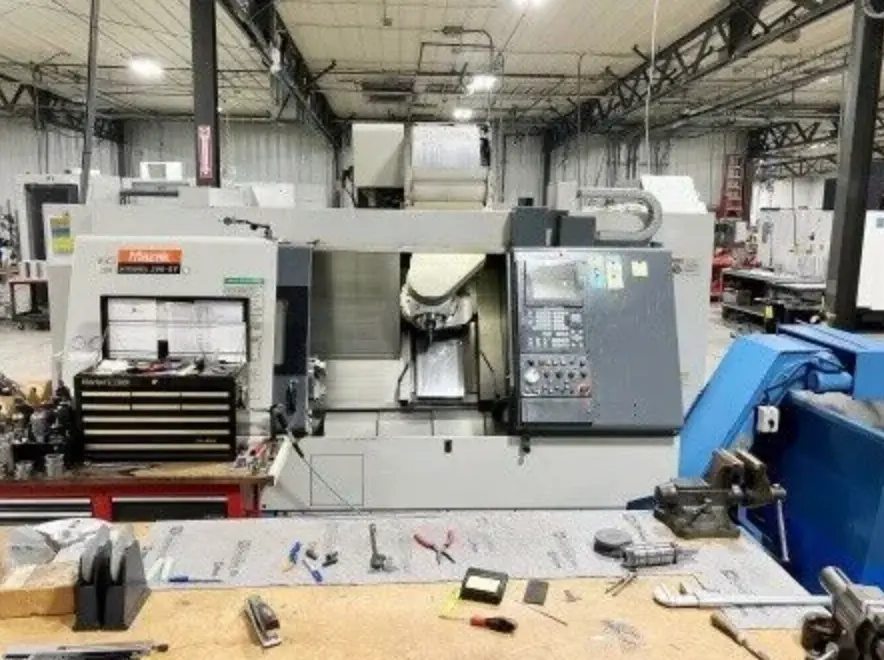

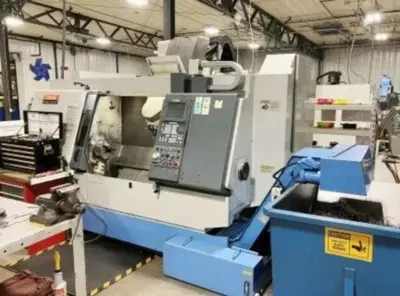

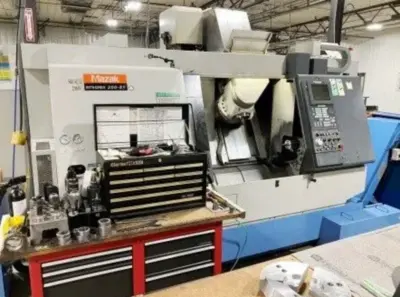

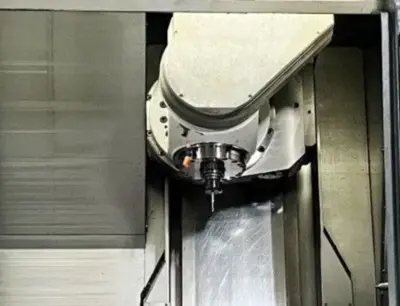

2001 MAZAK INTEGREX 200-II Y

Have one to sell?
513.486.0291
sales@ToolquipUSA.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
5-Axis or More CNC Lathes
Manufacturer:
MAZAK
Model:
INTEGREX 200-II Y
Year:
2001
Stock #:
X3X2244
Status:
For Sale

Description

Used 5-Axis CNC Lathe. Features 21.25" swing, 10" hydraulic chuck, 22 kW power, and 5,000 RPM max spindle speed. Equipped with Mazatrol Fusion 640MT, chip conveyor, and synchronized tapping.

# Axis55
Swing21.25"539.75 mm
Machining Length1,020 mm40.158"
Chuck Size10"254 mm
Bar Capacity65 mm2.5591"
Power22 kW29.5 hp
Max RPM5,000 RPM5,000 RPM
ControlCNC (Mazatrol Fusion 640MT)CNC (Mazatrol Fusion 640MT)

Swing 21.25"
Max Cutting Diameter 21.25"
Spindle Speed 5,000 RPM
Spindle Bore 2.4"
Rotary Speed 6,000 RPM

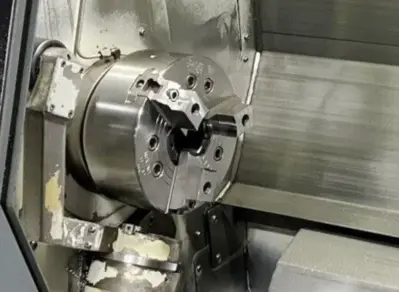

Chuck 10"

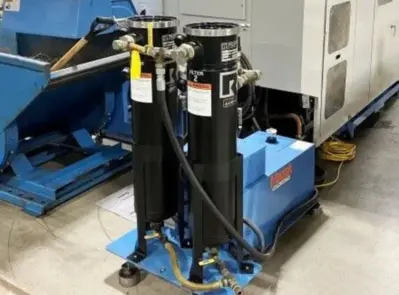

Mazatrol Fusion 640MT, 10" Thru-Hole Hydraulic Chuck, 40 ATC, Chip Conveyor, Mazak Super Flow 1000 PSI Coolant, Synchronized Tapping.
