| X | 41" | 1,041.4 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 50 | CAT 50 |
| Table-W | 21.65" | 549.91 mm |
| Table-L | 51.18" | 1,300 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mazatrol Matrix) | CNC (Mazatrol Matrix) |
X-Axis Travel: 41″
Y-Axis Travel: 20″
Z-Axis Travel: 20″
Rapid Traverse Rates: 1,417 IPM (X, Y, Z)
Cutting Feed Rate: 787 IPM (Approx.)
Table Size: 51.18″ × 21.65″
Table Load Capacity: 2,640 Lbs
Spindle Taper: CAT 50
Spindle Speeds: 6,000 RPM
Spindle Motor: 25 HP
Tool Changer Capacity: 24 Positions (Side-Mount ATC)
Tool Change Time (Chip-to-Chip): 1.3–2.9 Seconds
Max Tool Diameter: 4.9″
Max Tool Length: 13.8″
Max Tool Weight: 17 Lbs
Spindle Nose To Table Top: 5.9″ – 25.98″
Air Requirement: 80 PSI, 4 SCFM
Power Requirement: 220 V, ~35 kVA, 3-Phase
Mazatrol Matrix
Through Spindle Coolant
Through Spindle Air Blast
Rigid Tap

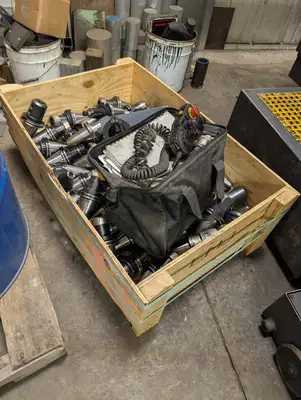

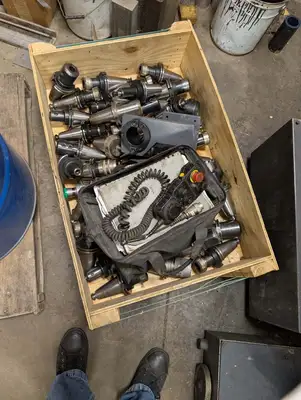

Tool Holders
