2001 MAZAK QUICK TURN 350
Sold

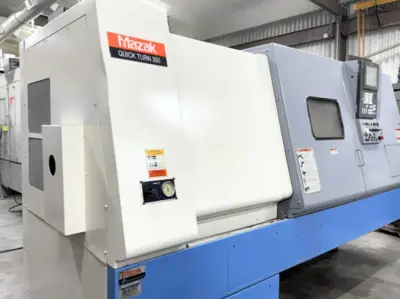

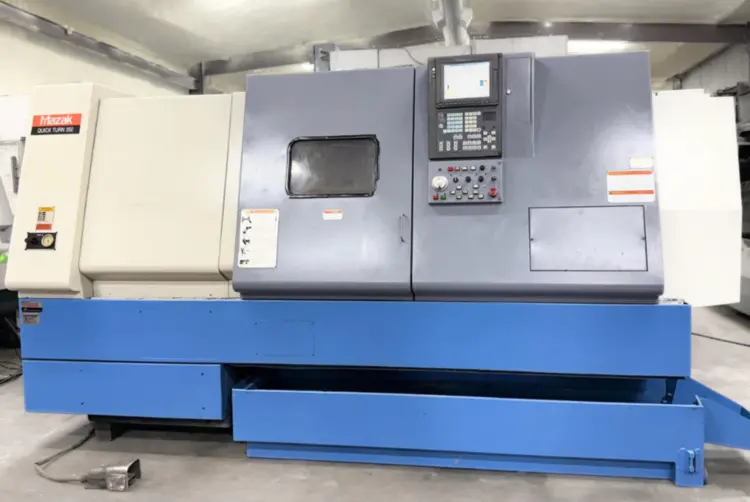

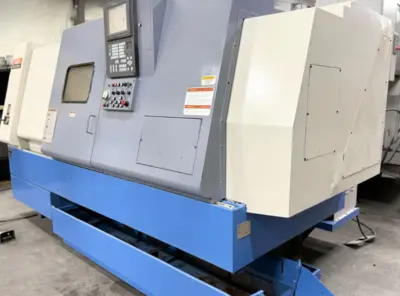

2001 MAZAK QUICK TURN 350

CNC Lathes
Manufacturer:
MAZAK
Model:
QUICK TURN 350
Year:
2001
Stock #:
X4X2199

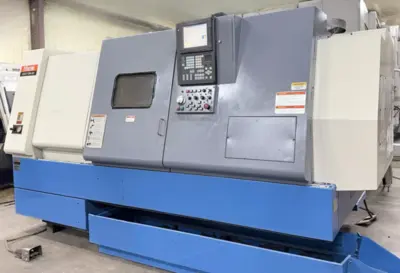

Used CNC lathe features a spindle bore of 4.4", max swing of 25.93", and 30HP. Equipped with MAZATROL PC-FUSION-CNC 640T control and a complete coolant system.

SPINDLE BORE: 4.4"
MAXIMUM SWING 24"
MAXIMUM SWING OVER CROSS SLIDE 16"
MAXIMUM CUTTING DIAMETER 15.35"
MAXIMUM CUTTING LENGTH 48" UNIVERSAL 47.6"
SPINDLE NOSE A2-8
STANDARD BAR CAPACITY 4"
SPEED 6-2500 RPM
SPEED RANGES 1
HORSEPOWER (CONT./30MIN) 30HP/35HP
TORQUE 530 FT-LBS
TYPE OF TURRET DRUM 12D/24P
MAXIMUM NUMBER OF TOOLS 24
TOOL SIZE:
TURNING & FACING 1"X1.25"X6"
BORING BAR MAX. DIA 2.0"
TURRET INDEX TIME (SEC) 0.3/1 POS 0.67/FULL STEP
X-AXIS TRAVEL 10.63"
Z-AXIS 48" UNIVERSAL 48.03"
X-AXIS RAPID TRAVERSE 472 IPM
Z-AXIS 48" UNIVERSAL 787 IPM
TAILSTOCK CENTER MT #4
QUILL DIAMETER 3.94"
QUILL TRAVEL 5.12"
BODY TRAVEL (48" UNIVERSAL) 37.8"
FLOOR SPACE (W X L) 48" UNIVERSAL 81.3" X 144.5"
MACHINE HEIGHT 75.2"
TOTAL MACHINE WEIGHT (48" UNIVERSAL) 15,620 LBS

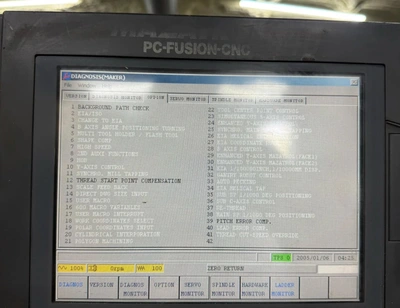

MAZATROL PC-FUSION-CNC 640T CONTROL (10.4" COLOR LCD)
RS232C INTERFACE
BACKGROUND TOOL PATH CHECKMACHINING NAVI-MONITOR
FLOPPY DISK UNIT
AUTOMATIC TOOL SETTING SYSTEM (TOOL EYE)
(TOOL SETUP/TOOL WEAR COMPENSATION/TOOL BREAKAGE DETECTION)
HYDRAULIC UNIT/STANDARD WORKLIGHT
COMPLETE COOLANT SYSTEM
CHIP & COOLANT SPLASH GUARDING (FULL COVERAGE)
PROGRAMMABLE TAILSTOCK WITH BUILT IN LIVE CENTER (MT#4)
SPINDLE SPEED 2500 RPM (4.4" SPINDLE BORE)
INVERTER CHIP CONVEYOR SIDE DISCHARGE FOR 48” UNIV.

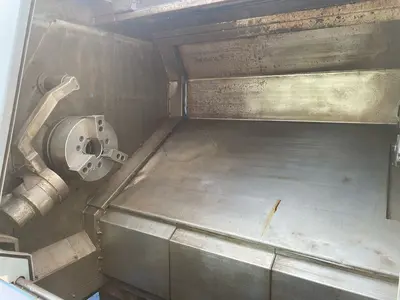

15" HYDRAULIC CHUCK

This equipment has been sold. Similar equipment available now is shown below.
