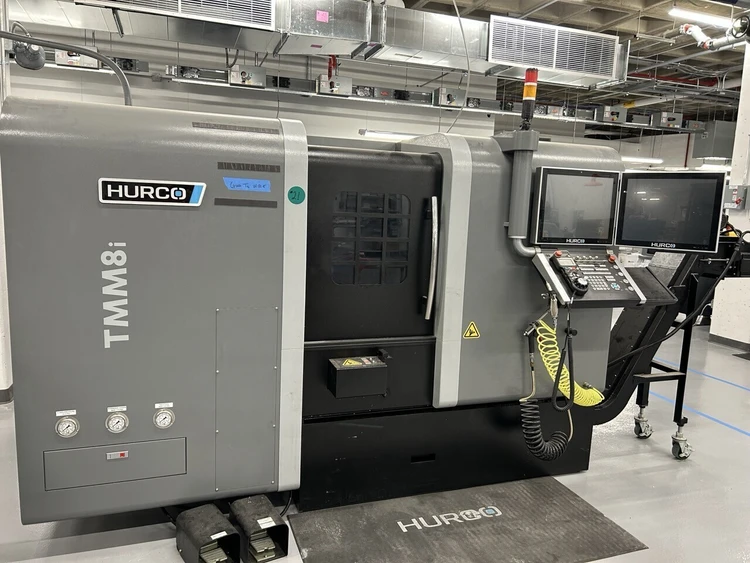

2017 HURCO TMM8I
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe offers an 8" chuck, 16" max turning diameter, and 24" max turning length. Features Winmax Classic, live tooling, C-axis, and more. Specifications include a 15 HP spindle motor, 12 turret stations, and Renishaw tool pre-setter.

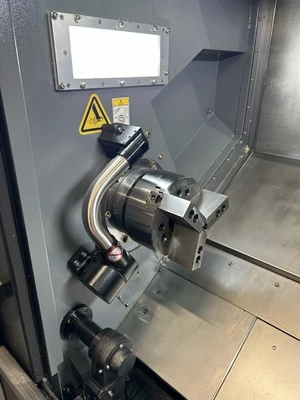

Chuck Size 8″ 3 jaw
Max Turning Diameter: 16″
Max Turning Length: 24″
Bar Capacity: 2.56″
Spindle Nose: A2-6
Spindle Bore: 2.68″
Spindle Speed: 3,500 RPM
Spindle Motor: 15 HP
Travels:
X-Axis: 9.1″
Z-Axis: 24″

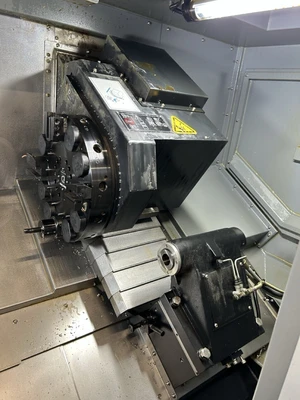

Turret Stations: 12
Dimensions:
Approx 126″ x 78″ x91″
Weight: Approx 12,125 lbs

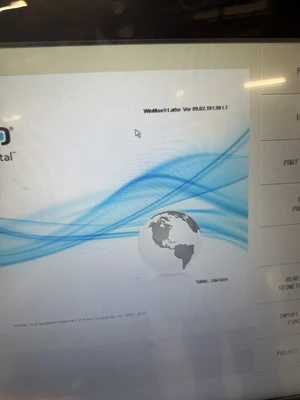

Winmax Classic
Live Tooling
C-Axis
Ultipocket
Rigid Tapping
Auxiliary Graphics Screen & Shelf
LCD Remote Jog
Renishaw Auto Position Tool Pre-Setter
Tailstock
Chip Conveyor
Oil Skimmer
Parts Catcher
