2024 HAAS VF-4
Have one to sell?
ConditionUsed
1 available

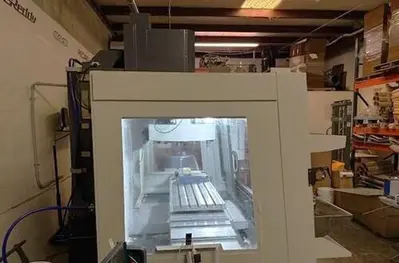

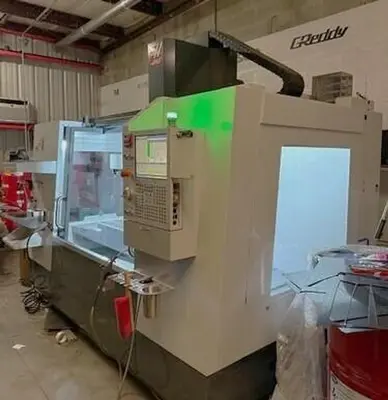

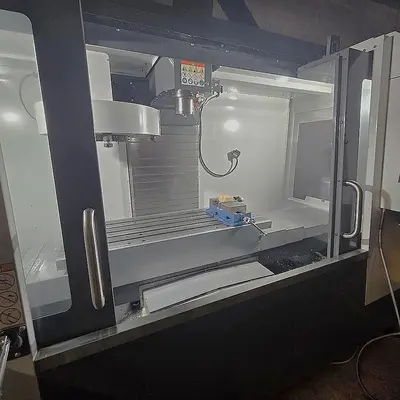

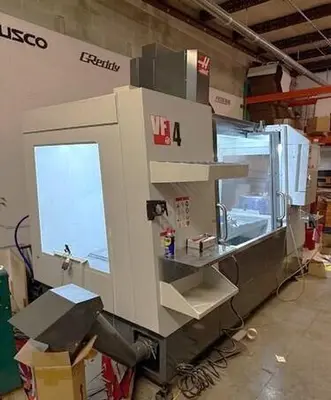

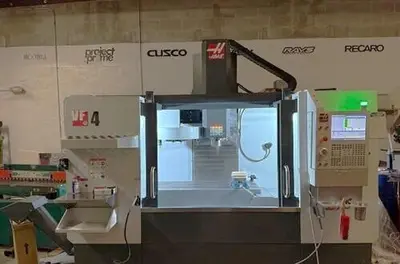

2024 HAAS VF-4 Vertical Machining Center with Haas NextGen Control. Features include a 52" x 18" table, 20-station ATC, CAT #40 spindle, WiFi, Ethernet, USB, and RS232 interfaces, Renishaw probing, and advanced management tools.
Control Haas NextGen Control
Table size - 52" x 18"
Maximum Weight on Table 3,500 lbs.
X-Axis Travel - 50"
Y-Axis Travel - 20"
Z-Axis Travel - 25"
Spindle Taper - CAT #40
Spindle Speeds - 0 - 8,100 RPM
Spindle Motor 30 Minutes/Continuous - 30 HP / 20 HP
Spindle Nose to Table Top - 4" - 29"
Number of Tool Positions - 20 Station ATC
Rapid Traverse Rates - 1000 IPM
Cutting Feedrates - 650 IPM
Auger Style Chip Conveyor
WIPS-R Renishaw Part & Tool Probe
User Definable Macros
Spindle Orientation
Coordinate Rotation & Scaling
Visual Part Programming System
Thru the Spindle Coolant Prepped
20 Station Umbrella Style Tool Changer
1 GB Programming Memory
Rigid Tapping
Haas Drop
Safe Run
Haas Connect: Remote Monitoring
Media Display M-Code M130
Advanced Tool Management
Early Power Failure Detection Module
WiFi Connection for Haas Control
Ethernet Interface
USB Port Interface
RS232 Port Interface
Coolant System with Tank & Pump
Window Air Blast
Chip Tray Filter Kit
Wired 220V Electrics
