2017 FANUC ROBODRILL ALPHA D21MIB5
Have one to sell?
ConditionUsed
1 available

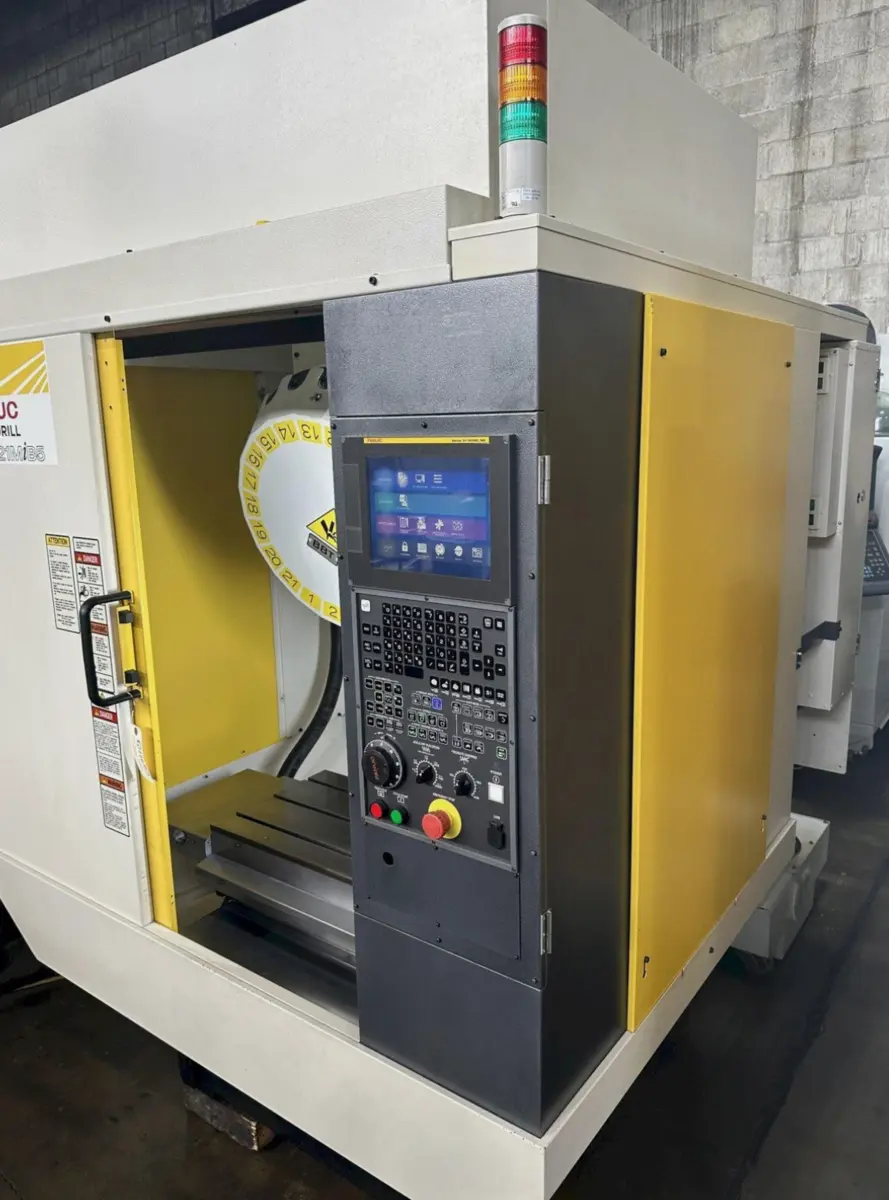

Used vertical machining center with 3-axis, 25.6"x15.75" table, 24,000 RPM spindle, 21 tool ATC, and Fanuc 31i-B5 control. Equipped with Renishaw probe, mist collector, and coolant tank.
# Axis 3

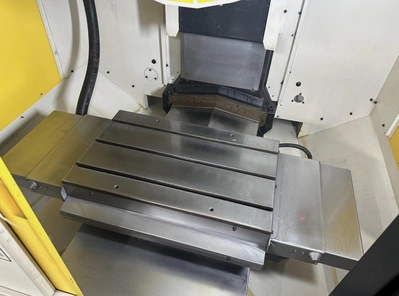

Table Size 25.6" x 15.75"
Table Load Capacity 661 LBS
X-Axis (Longitudinal Travel) 19.7"
Y-Axis (Cross Travel) 15.7"
Z-Axis (Vertical Travel) 12.9"
Max/Min Clearance Tabletop to Spindle Nose 22.8" / 9.84"
Feed Rates, All Axes 1,181 IPM
Rapid Traverse Rate, All Axes 2,125 IPM
Max Spindle RPM 24,000 RPM
Spindle Taper BT30

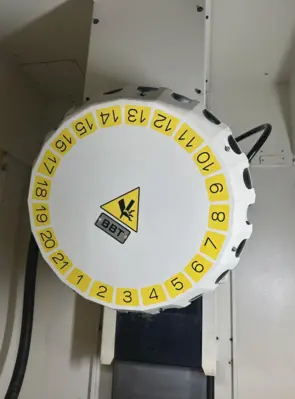

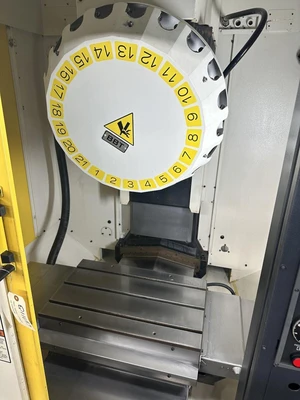

Automatic Tool Changer Capacity (ATC) 21
Tool Change Time 1.6 Sec
Electrics 220/3/60
Approximate Machine Dimensions 63" x 63" x 90"
Approximate Machine Weight 4,850 LBS

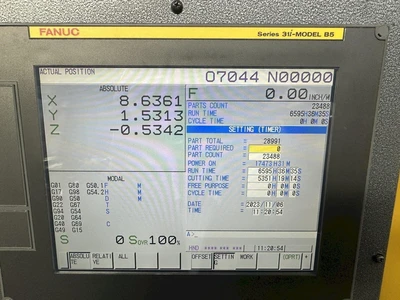

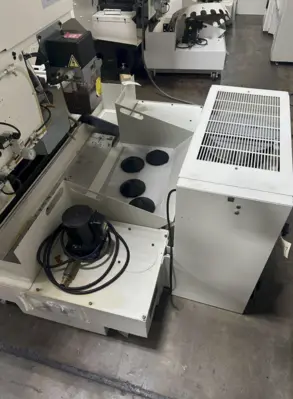

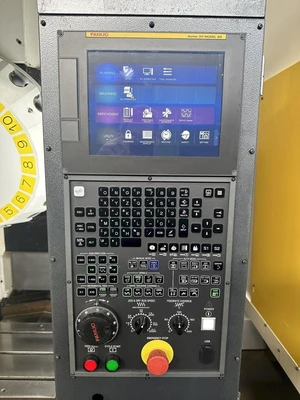

Fanuc Series 31i-B5 CNC Control, 24000 RPM Spindle, Renishaw OMP40-2 Part Probe, Mist Collector, Coolant Tank.
