2017 YAMA SEIKI BM-1020
Have one to sell?
ConditionUsed
1 available

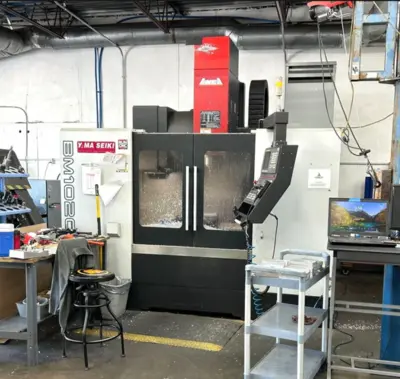

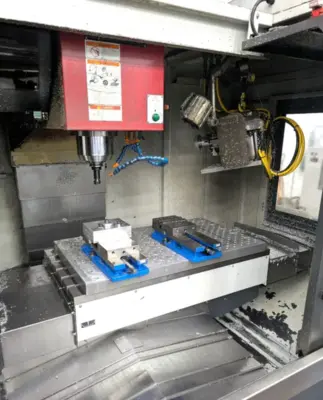

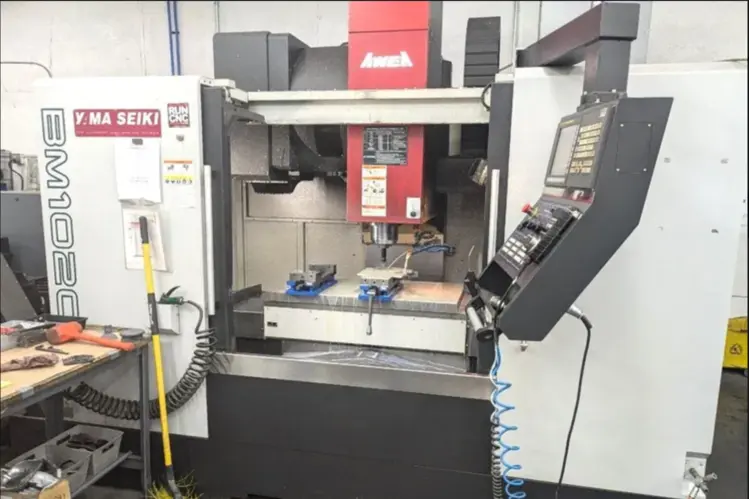

2017 YAMA SEIKI BM-1020 vertical machining center, equipped with FANUC Oi-MD CNC, 25 hp, CAT 40 spindle, 6,000 RPM, 40.2" x-axis travel, 24-tool ATC, and 4th axis drive. Includes through spindle coolant, chip conveyor, and rigid tapping.
TABLE LENGTH - 44.1"
TABLE WIDTH - 23.6"
TABLE CAPACITY - 2,210 lb
X-AXIS TRAVEL - 40.2"
Y-AXIS TRAVEL - 23.6"
Z-AXIS TRAVEL - 23.6"
DISTANCE FROM WORK FACE TO SPINDLE - 4.928"
SPINDLE SPEED - 6,000 RPM
SPINDLE MOTOR - 25 hp
SPINDLE TAPER - CAT 40
TOOL CAPACITY (ATC) - 24
RAPID TRAVERSE - X AXIS - 945 in/min.
RAPID TRAVERSE - Y AXIS - 945 in/min.
RAPID TRAVERSE - Z-AXIS - 788 in/min.
CUTTING FEEDRATE - 393 ipm
APPROX MACHINE WEIGHT - 15,000 lb
APPROX MACHINE DIMENSIONS - 128″ x 98″ x 110″
FANUC Oi-MD CNC CONTROL
GEARED HEAD SPINDLE
4TH AXIS DRIVE & WIRING
THROUGH SPINDLE COOLANT (1000 PSI)
93 GALLON COOLANT TANK
CHIP CONVEYOR
RIGID TAPPING
BOXWAY
USB
