2017 YAMA SEIKI BM-1020
Have one to sell?
ConditionUsed
1 available

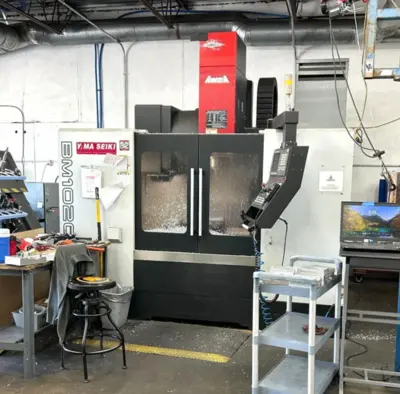

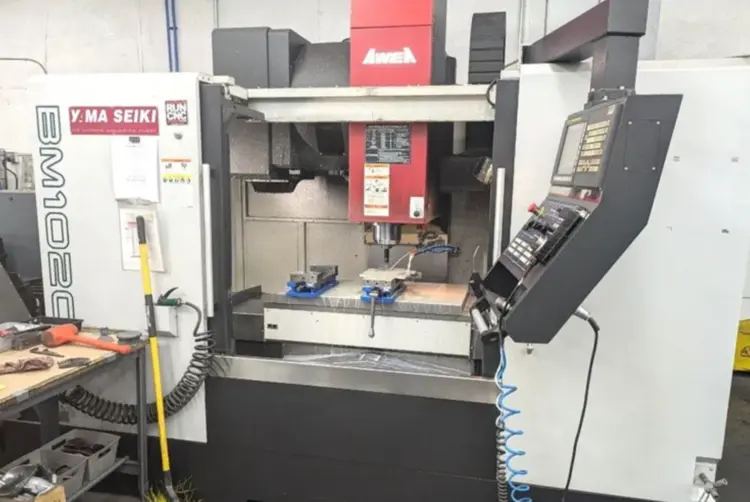

Used Vertical Machining Center with FANUC Oi-MD CNC, geared head spindle, and 4th axis drive. Features include a 40.2" x 23.6" x 23.6" travel, 20 hp, 8,000 RPM, and CAT 40 taper. Ideal for aluminum and SS machining. 93-gallon coolant tank included.
TABLE LENGTH 44.1"
TABLE WIDTH 23.6"
TABLE CAPACITY 2,210 lb
X-AXIS TRAVEL 40.2"
Y-AXIS TRAVEL 23.6"
Z-AXIS TRAVEL 23.6"
DISTANCE FROM WORK FACE TO SPINDLE 4.928"
SPINDLE SPEED 6,000 RPM
SPINDLE MOTOR 25 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 24
RAPID TRAVERSE - X AXIS 945 in/min.
RAPID TRAVERSE - Y AXIS 945 in/min.
RAPID TRAVERSE - Z-AXIS 788 in/min.
CUTTING FEEDRATE 393 ipm
APPROX MACHINE WEIGHT 15,000 lb
APPROX MACHINE DIMENSIONS 128″ x 98″ x 110″
FANUC Oi-MD CNC CONTROL
GEARED HEAD SPINDLE
4TH AXIS DRIVE & WIRING
THROUGH SPINDLE COOLANT (1000 PSI)
93 GALLON COOLANT TANK
CHIP CONVEYOR
RIGID TAPPING
BOXWAY
USB
** TSUDAKOMA RWE-200R 4TH AXIS ROTARY AVAILABLE SEPARATELY
** MACHINE CUTTING PRIMARILY ALUMINUM & SS

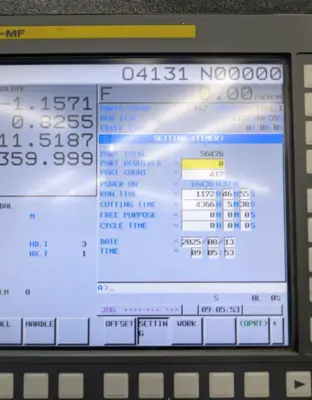

** AS OF JULY, 2025 - FEED CUTTING TIME HOURS: 4,356
