2021 HAAS UMC-500
Have one to sell?
ConditionUsed
1 available

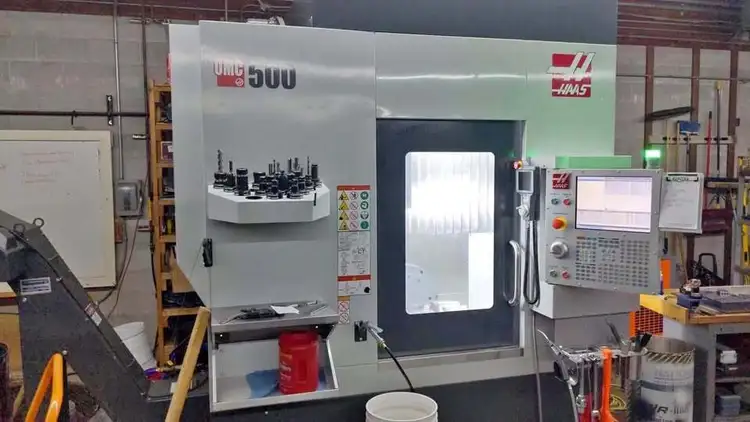

Used 5-axis vertical machining center, features 24"x16"x16" XYZ travel, 30 HP spindle at 15,000 RPM, 50+1 tool changer, and 360° motion. Equipped with WIPS, chip conveyor, and less than 1,383 hours.
X Axis: 24″
Y Axis: 16″
Z Axis: 16″
Spindle Power: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Platter Diameter: 15.70″
Max Weight on Platter: 500 lbs
Tool Changer: 50 + 1
B Axis Travel: 120 ° to 35- °
Max Speed: 50 °/sec
C Axis Travel: 360 °
Max Speed: 50 °/sec
Rapids (X,Y,Z): 900 ipm
Machine Weight: 12,000 lbs

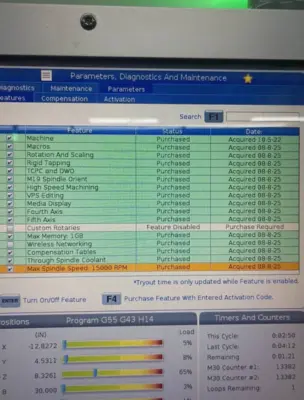

WIPS
Coolant Through Spindle
Macros
Rotation and Scaling
Rigid Tapping
Chip Conveyor
M19 Spindle Orientation
Rigid Tapping
High Speed Machining
Max Memory: 1GB

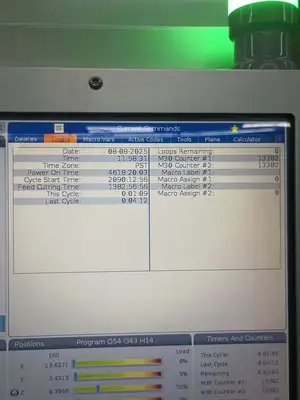

LOW HOURS LESS THAN 1,383
