SWING OVER BED 26.5"
MACHINING LENGTH 19.85"
DISTANCE BETWEEN CENTERS 24"
CHUCK SIZE 1 10"
SPINDLE NOSE 1 A2 - 8
SPINDLE BAR CAPACITY 1 3"
SPINDLE SPEEDS 1 4,000 RPM
SPINDLE HORSEPOWER 1 35 hp
SPINDLE BORE DIAMETER 1 3.4"
X1 - AXIS TRAVEL 9"
Z1 - AXIS TRAVEL 22.7"
RAPID TRAVERSE RATE - X1 1,181 in/min.
RAPID TRAVERSE RATE - Z1 1,299 in/min.

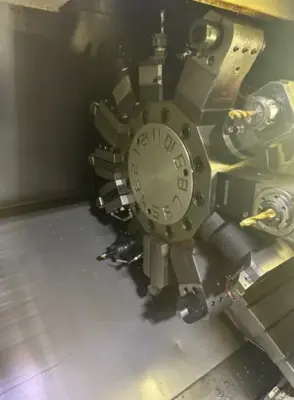

TURRET CONFIGURATION 1 12
TURRET ROTARY TOOL SPINDLE SPEED 1 4,500 RPM
TURRET ROTARY TOOL HORSE POWER 1 7.5 hp
TAILSTOCK TAPER MT 5
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 21.75"
# AXIS 3
BAR CAPACITY 3"
TAILSTOCK 'Yes'
LIVE TOOLING 'Yes'
SUB SPINDLE 'No'
WEIGHT 14000.00

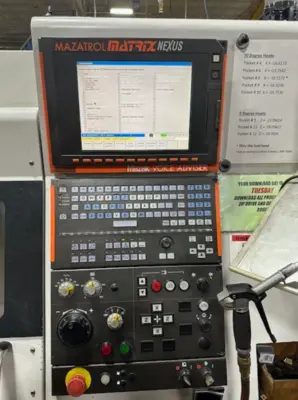

MAZATROL MATRIX CNC CONTROL

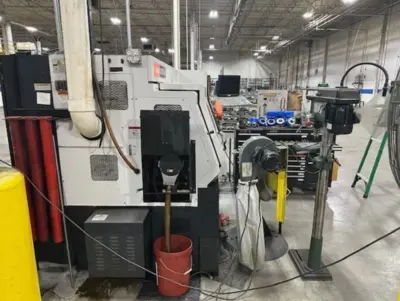

CHIP CONVEYOR

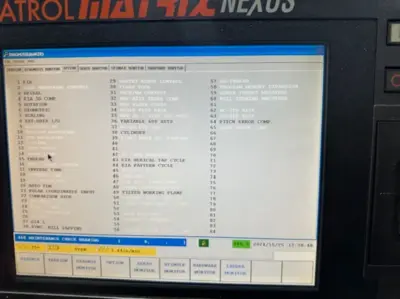

EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
THREAD, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT
COMPARISON STOP, G54.1, SYNC MILL TAP, VARIABLE 600 MACRO
CYLINDER
EIA HELICAL TAP, EIA PATTERN CYCLE, TILTED WORK PLANE
PITCH ERROR COMP
MAZAK HIGH PRESSURE COOLANT
MIST COLLECT SYSTEM

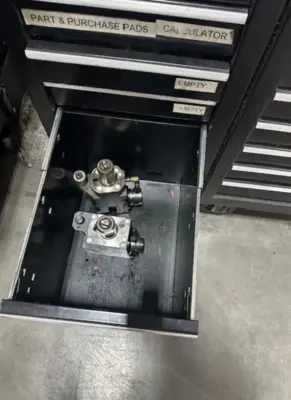

(2) O.D. ROTARY HEADS
(4) I.D. ROTARY HEADS
10" HYDRAULIC 3 JAW CHUCK

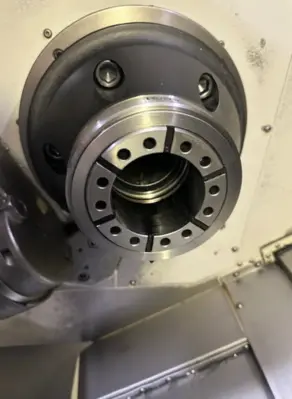

NEW ROYAL COLLET CHUCK

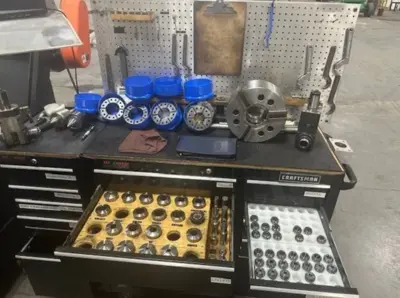

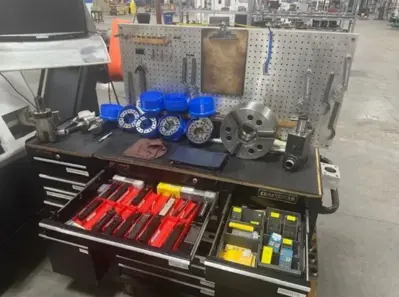

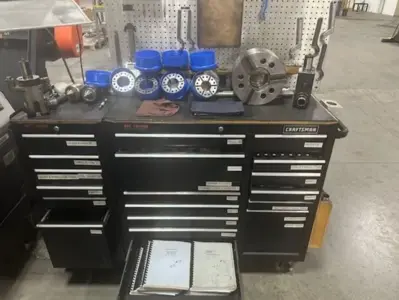

MISC. INSERTS, COLLETS, PERISHABLE TOOLING, CRT & KEY BOARD
This equipment has been sold. Similar equipment available now is shown below.
