2002 MAZAK QUICK TURN NEXUS 200
Have one to sell?
ConditionUsed
1 available
CNC Lathe in used condition with FUSION 640T control. Features 12-position turret, chip conveyor, auto tool setter, 24" swing over bed, 20.1" machining length, 2.5" bar capacity, and includes tooling cabinet.
SWING OVER BED 24"
MACHINING LENGTH 20.1"
DISTANCE BETWEEN CENTERS 22"
DISTANCE BETWEEN SPINDLES 0"
SPINDLE NOSE 1 A2 -6
SPINDLE BAR CAPACITY 1 2.5"
TURNING DIAMETER, SHAFT DIAMETER 14"
SPINDLE SPEEDS 1 5,000 RPM
SPINDLE HORSEPOWER 1 35 hp
SPINDLE BORE DIAMETER 1 3"
X1 - AXIS TRAVEL 7.5"
Z1 - AXIS TRAVEL 21.12"
RAPID TRAVERSE RATE - X1 1,181 in/min.
RAPID TRAVERSE RATE - Z1 1,299 in/min.
SPINDLE TORQUE 0
GEAR RANGES 0
TURRET CONFIGURATION 1 12
TURRET ROTARY TOOL SPINDLE SPEED 1 0 RPM
TURRET ROTARY TOOL HORSE POWER 1 0 hp
TAILSTOCK TAPER MT 5
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 21.75"
# AXIS 2
BAR CAPACITY 2.5"
TAILSTOCK 'Yes'
LIVE TOOLING 'No'
SUB SPINDLE 'No'
CONTROL CNC (FUSION 640T)
WEIGHT 10,800
MAZATROL FUSION 640T CNC COLOR CONVERSATIONAL CONTROL
BACKGROUND PATH CHECK
AUTO TOOL SETTER

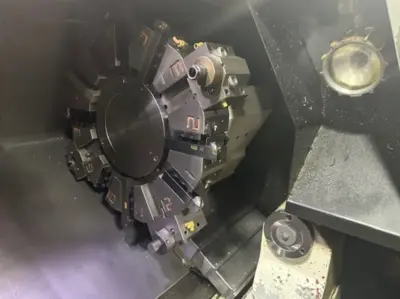

12 POSITION TURRET
COLLET NOSE
CHIP CONVEYOR
MIST COLLECT SYSTEM
CHUCK OPEN CLOSE CONFIRMATION

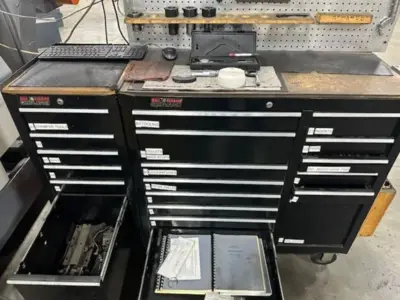

COMES COMPLETE WITH TOOLING CABINET, PERISHABLES AND MISCELANEOUS TOOLING IN PHOTO
COMPUTER, KEY BOARD AND PEDESTAL GRINDER INCLUDED IN PHOTO
