2005 MAZAK SLANT TURN 450
Have one to sell?
ConditionUsed
1 available

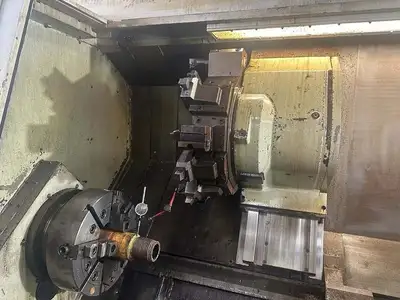

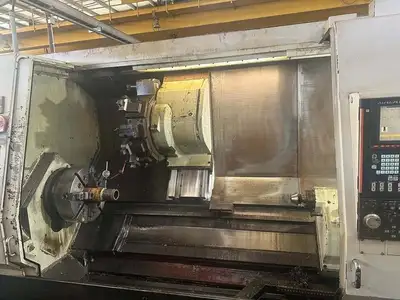

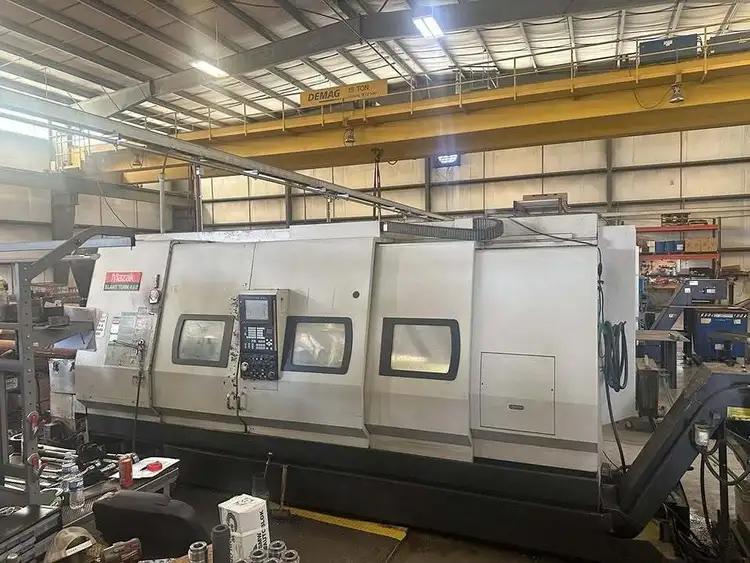

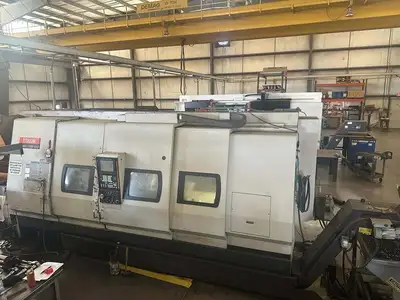

Used CNC Lathe, featuring 28.1" swing, 80" machining length, 20" chuck, and 7.25" bar capacity. Equipped with new Z-axis ball screw, thrust bearings, and chip conveyor. Power: 40 hp, Max RPM: 3,000.
X-Travel: 14.38″
Z-Travel: 80.00″
Distance Between Centers: 80″
Bar Capacity: 7.25″
Chuck Size: 20.0″
Spindle Bore: 7.25″
Spindle Speed: 1,500 RPM
Spindle Motor: 40 HP
Spindle Nose: A2-15
Additional Machine Specs: 19″ Rear Chuck
20” Manual Chuck on ft. Spindle

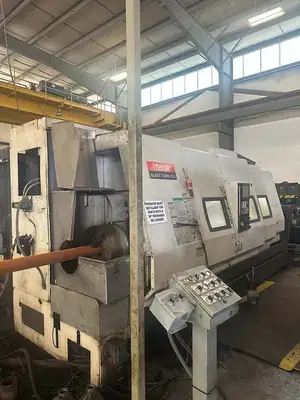

20″ Air Chuck on Rear Spindle
New Z-Axis Ball Screw and Thrust Bearings.
Chip Removal: Chip Conveyor
