2005 HAAS EC-3000
Have one to sell?
ConditionUsed
1 available

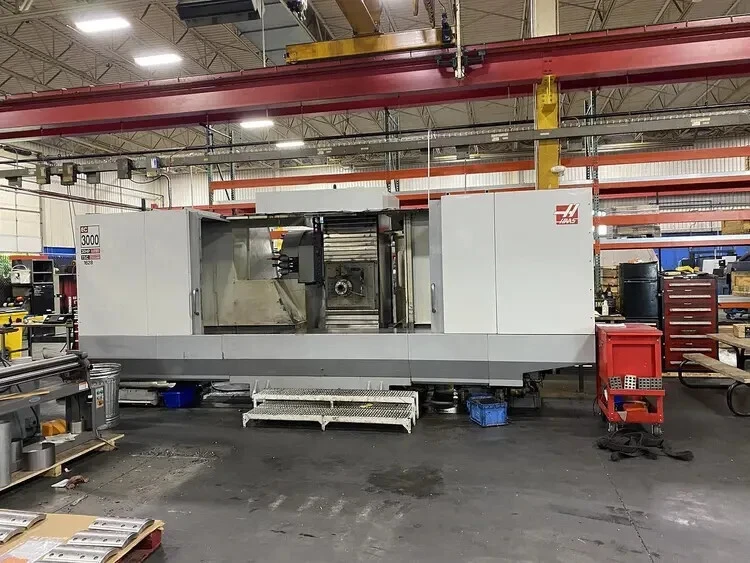

Horizontal Machining Center, used. Features: 120"x28" table, 10,000 lbs load, 120"x40"x32" travel, spindle speeds up to 6000 RPM, Haas CNC control, 30-position automatic tool changer, 30 HP motor.

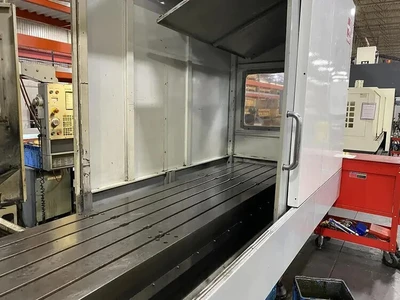

Table Dimensions, L x W 120" x 28"
Table Load Capacity, Maximum 10000 LBS
X-Axis Longitudinal Travel 120"
Y-Axis Head Vertical Travel 40"
Z-Axis Table Cross Travel 32"
Spindle Taper #50
Tool Diameter Full, Maximum 4"
Tool Diameter Adjacent Empty, Maximum 10"
Spindle Speeds, Range 0 to 6000 RPM
Cutting Feedrate Range 360 IPM
Rapid Traverse Rate 540 IPM
Motor Horsepower 30 HP
Overall Dimensions, W x D 266" x 143"
Overall Height 119"
Weight Approximately 40000 LBS

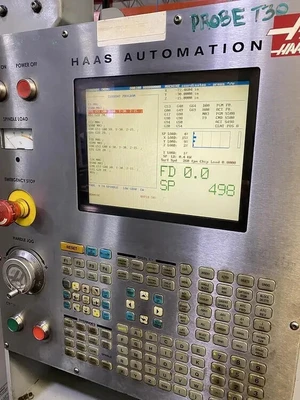

Haas CNC Control
30-Position Side-Mounted Automatic Tool Changer
30 HP 2-Speed Geared Head Drive System
Thru-Spindle Coolant System
