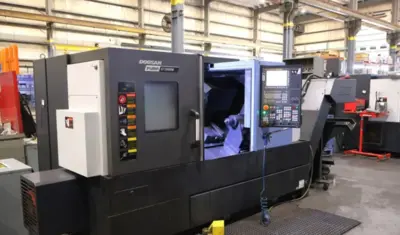

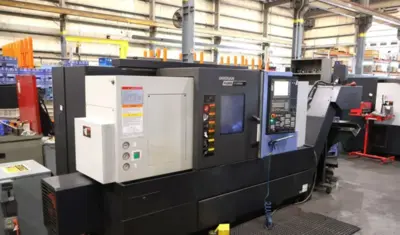

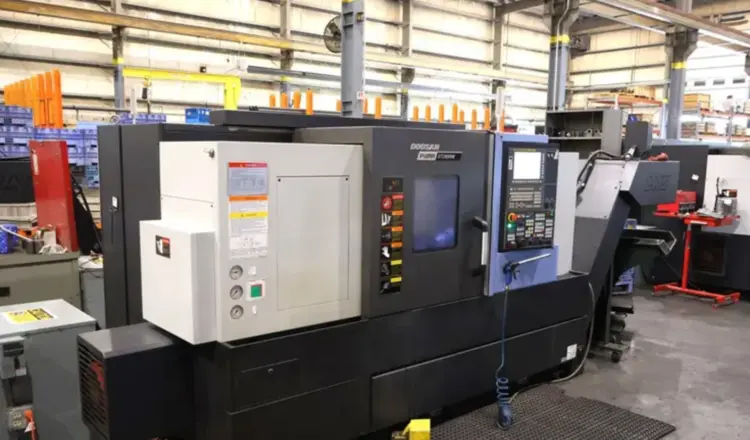

2018 DOOSAN PUMA GT2600M
Have one to sell?
ConditionUsed
1 available
CNC Lathe, used, features a 30 hp spindle motor, 3,500 RPM speed, and live milling up to 5,000 RPM. Equipped with FANUC OiTF CNC control, 12" hydraulic chuck, and more. Dimensions: 133.7" x 67.2" x 70"H; Weight: 9,590 lbs.
SWING OVER BED 24.8"
SWING OVER SADDLE 18.1"
MAX CUTTING DIAMETER 16.1"
MAX CUTTING LENGTH 24"
X-AXIS TRAVEL 10.4"
Z-AXIS TRAVEL 26.8"
C-AXIS INDEXING 0.001
CHUCK SIZE 12"
BAR CAPACITY 3.23"
SPINDLE BORE 3.6"
SPINDLE NOSE A2-8
SPINDLE MOTOR 30 hp
SPINDLE SPEED 3,500 RPM
RAPID TRAVERSE RATE - X-AXIS 945 in/min.
RAPID TRAVERSE RATE - Z-AXIS 1,181 in/min.

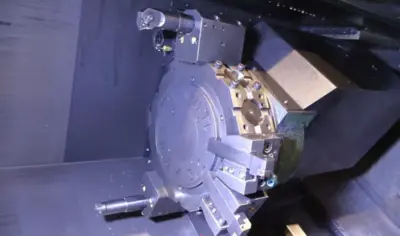

TURRET CAPACITY 12
TURRET TYPE BMT55
LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
LIVE MILLING MOTOR 7.4 hp
Dimensions 133.7" X 67.2" X 70"H
Weight 9,590 LBS

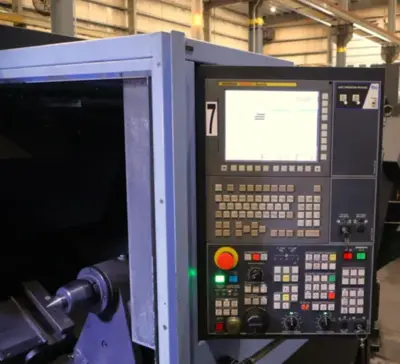

FANUC OiTF CNC CONTROL WITH DOOSAN EZ GUIDE i CONVERSATIONAL PROGRAMMING
3.23" BAR CAPACITY

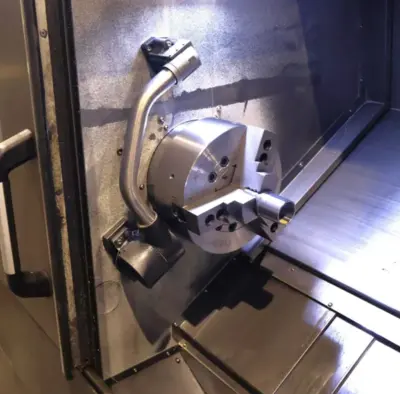

12" SAMCHULLY HS-12 3-JAW HYDRAULIC CHUCK (UPGRADE FROM 10")
TOOL SETTER

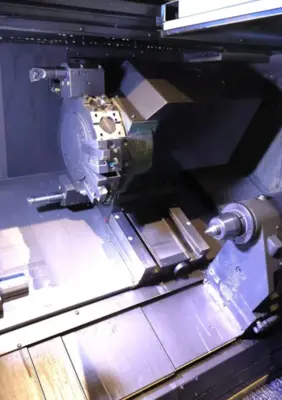

TAILSTOCK
3 COLOR TOWER LIGHT
WAY LUBE BELT SKIMMER

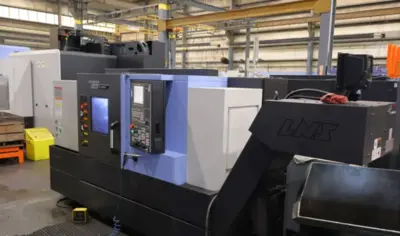

LNS TURBO SIDE DISCHARGE CHIP CONVEYOR WITH M-CODE CAPABILITY
AUTO DOOR
MISC. STICK AND BORING TOOL HOLDERS
(3) LIVE HOLDERS TO INCLUDE: (2) X-AXIS AND (1) Z-AXIS
SOLID BOX WAY CONSTRUCTION ON HEAVY DUTY ONE-PIECE MEEHANITE CAST IRON BED

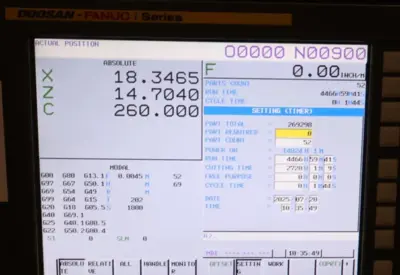

HOURS OF USE AS OF 7/21/2025 (AS SEEN IN PICTURE):
* POWER ON: 14,824 HOURS
* RUN TIME: 4,466 HOURS
* CUTTING TIME: 2,728 HOURS
