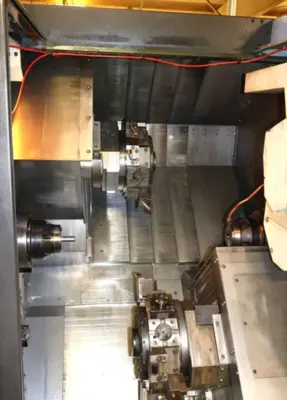

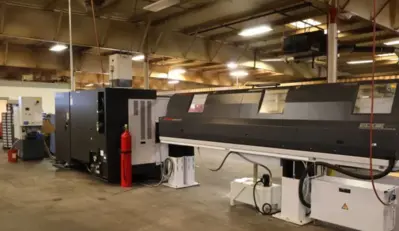

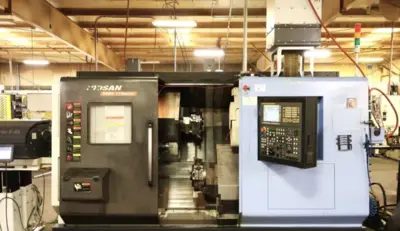

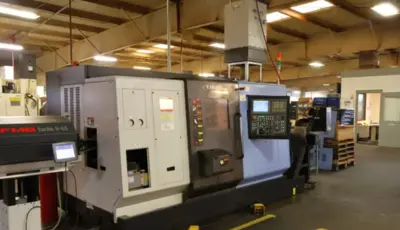

2011 DOOSAN PUMA TT1800SY

SWING OVER SADDLE 9.1"
MAX CUTTING DIAMETER 9"
MAX CUTTING LENGTH 27.38"
DISTANCE BETWEEN CENTERS 38.5"
X-AXIS TRAVEL 6.5"
Y-AXIS Yes
Y-AXIS TRAVEL 3.93" (+/- 1.96")
Z-AXIS TRAVEL 27.5"
C-AXIS INDEXING FULL C-AXIS (MAIN & SUB)
BAR CAPACITY 2.625"
SPINDLE BORE 2.99"
SPINDLE NOSE A2-6
SPINDLE MOTOR 30 hp
SPINDLE SPEED 5,000 RPM
RAPID TRAVERSE RATE - X-AXIS 787 in/min.
RAPID TRAVERSE RATE - Y-AXIS 295.3 in/min.
RAPID TRAVERSE RATE - Z-AXIS 1,575 in/min.

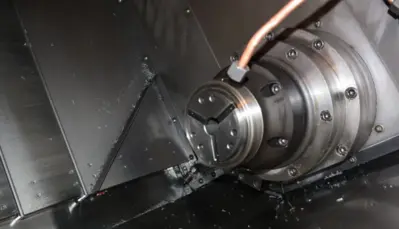

SUB SPINDLE Yes
SUB SPINDLE - BAR CAPACITY 2.6"
SUB SPINDLE - SPINDLE BORE 2.9"
SUB SPINDLE - SPINDLE NOSE A2-6
SUB SPINDLE - SPINDLE MOTOR 30.3 hp
SUB SPINDLE - SPINDLE SPEED 5,000 RPM
SUB SPINDLE / W-AXIS TRAVEL 30.1"

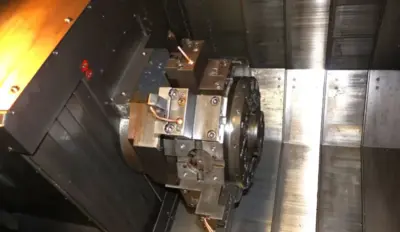

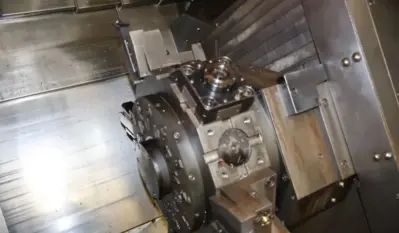

TURRET CAPACITY 12
TURRET TYPE BMT55

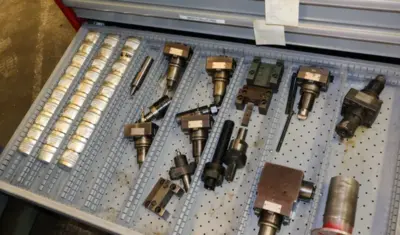

LIVE MILLING Yes
LIVE MILLING SPEED 5,000 RPM
LIVE MILLING MOTOR 7.5 hp
TURRET 2 CAPACITY 12
TURRET 2 TYPE BMT55
TURRET 2 - X-AXIS TRAVEL 7.48"
TURRET 2 - Z-AXIS TRAVEL 28.34"
