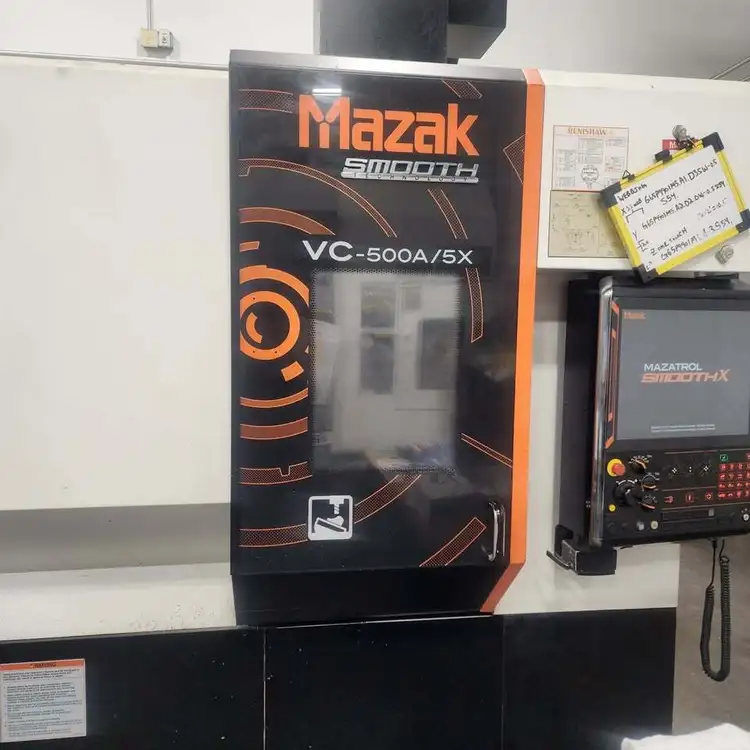

2017 MAZAK VC-500A/5X
Have one to sell?
ConditionUsed
1 available
Used 5-axis vertical machining center with 22" x 20" x 20" XYZ travel, 12,000 RPM spindle, 30 tool capacity, Mazatrol Smooth X, and Renishaw probing.
X-Axis Travel....22"
Y-Axis Travel....20"
Z-Axis Travel....20"
C-axis Travel....360,000 Degree
B-axis Travel....+/- 110 Degree
Table Indexing... 0.001 degree
Table Diameter....19.56"
Max. Workpiece Diameter....20"
Max. Workpiece Height....12"
Max. Spindle Speed....12,000RPM
Spindle Taper.... CAT 40
Max. Motor HP....25HP
Tool Capacity: 30 Tools
Rapid Rate X/Y/Z Axis: 1,181 IPM
Spindle Nose 4.53" - 24.61"
Dimensions: 118.5" x 99" x 118" H
Weight: 11,000 LBS

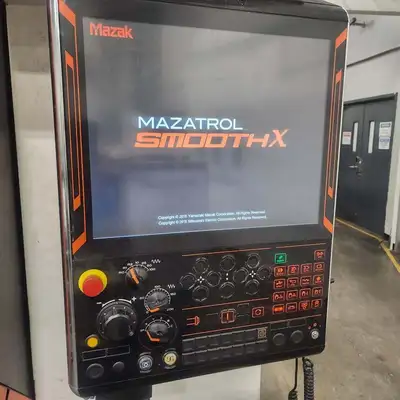

Mazatrol Smooth X Control
Renishaw Probing
Tool Presetter
30 Position ATC
Chip Conveyor

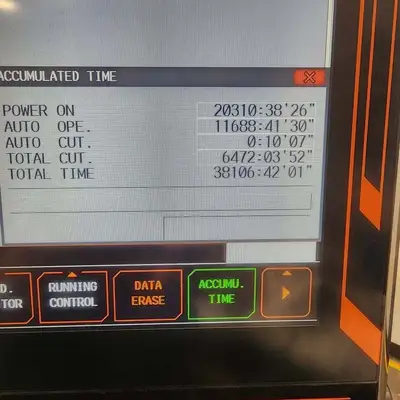

Under 7000 cutting hours
