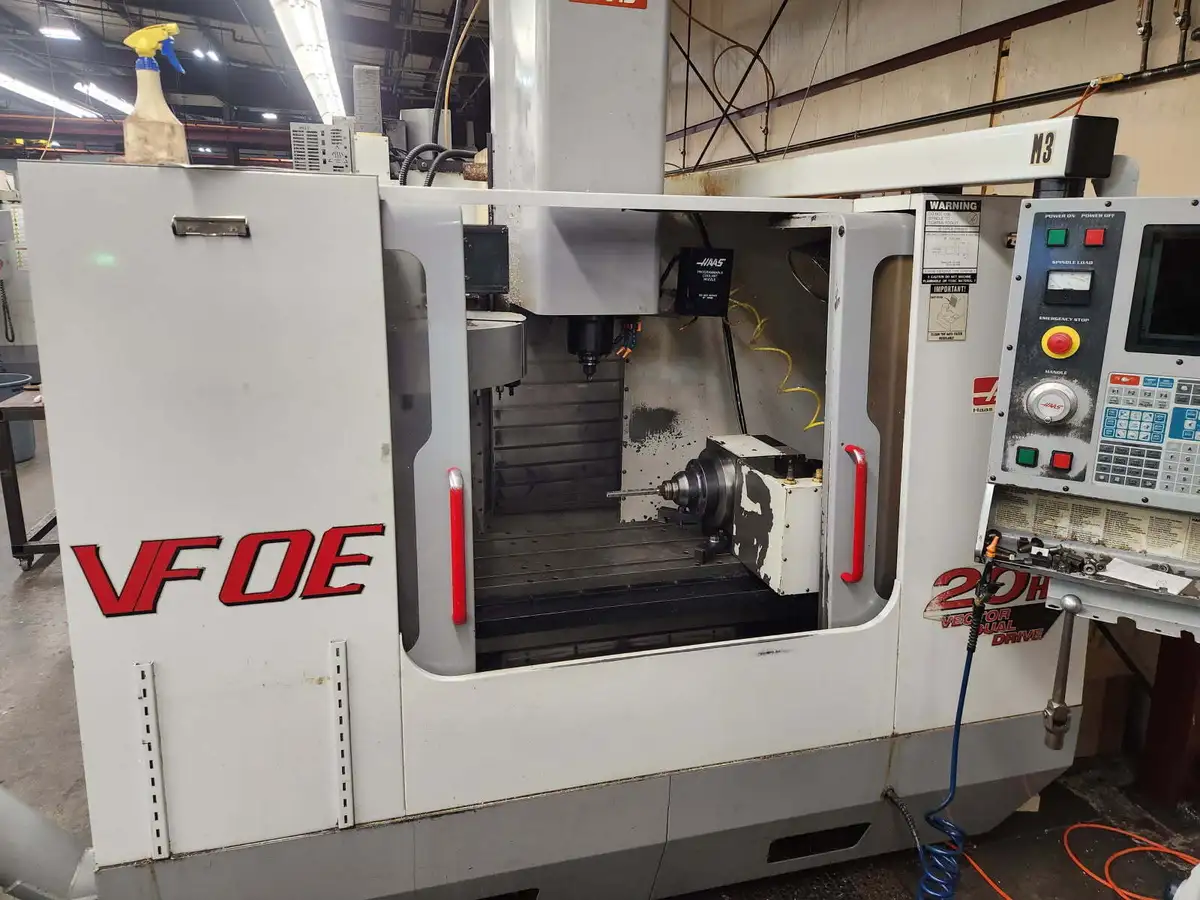

2001 HAAS VF-0EB
Have one to sell?
ConditionUsed
1 available

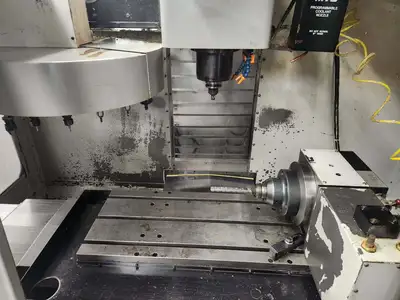

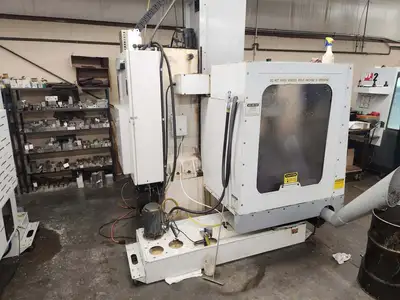

Used Vertical Machining Center: 3-axis, 20 hp, 75,000 RPM, CAT 40 taper, with 30" x 16" x 20" travel and 3,000 lbs table capacity. Features 4th axis readiness.
Table Capacity: 3,000 Lbs.
Spindle Taper: Cat 40
Spindle Speeds: 0 - 7,500 RPM
Rapid Traverse Rate (X/Y/Z): 710IPM
Spindle To Table Distance: 4" - 24"
Maximum Cutting Feed Rate: 300 IPM
4th Axis Ready (4th axis table is not included)
Used Vertical Machining Center: 3-axis, 20 hp, 75,000 RPM, CAT 40 taper, with 30" x 16" x 20" travel and 3,000 lbs table capacity. Features 4th axis readiness.
Imperial
| X | 30" |
| Y | 16" |
| Z | 20" |
| Power | 20 hp |
| RPM | 7,500 RPM |
| Taper | CAT 40 |
| Table-W | 14" |
| Table-L | 36" |
| # Axis | 3 |
| Control | CNC (HAAS) |
Table Capacity: 3,000 Lbs.
Spindle Taper: Cat 40
Spindle Speeds: 0 - 7,500 RPM
Rapid Traverse Rate (X/Y/Z): 710IPM
Spindle To Table Distance: 4" - 24"
Maximum Cutting Feed Rate: 300 IPM
4th Axis Ready (4th axis table is not included)
