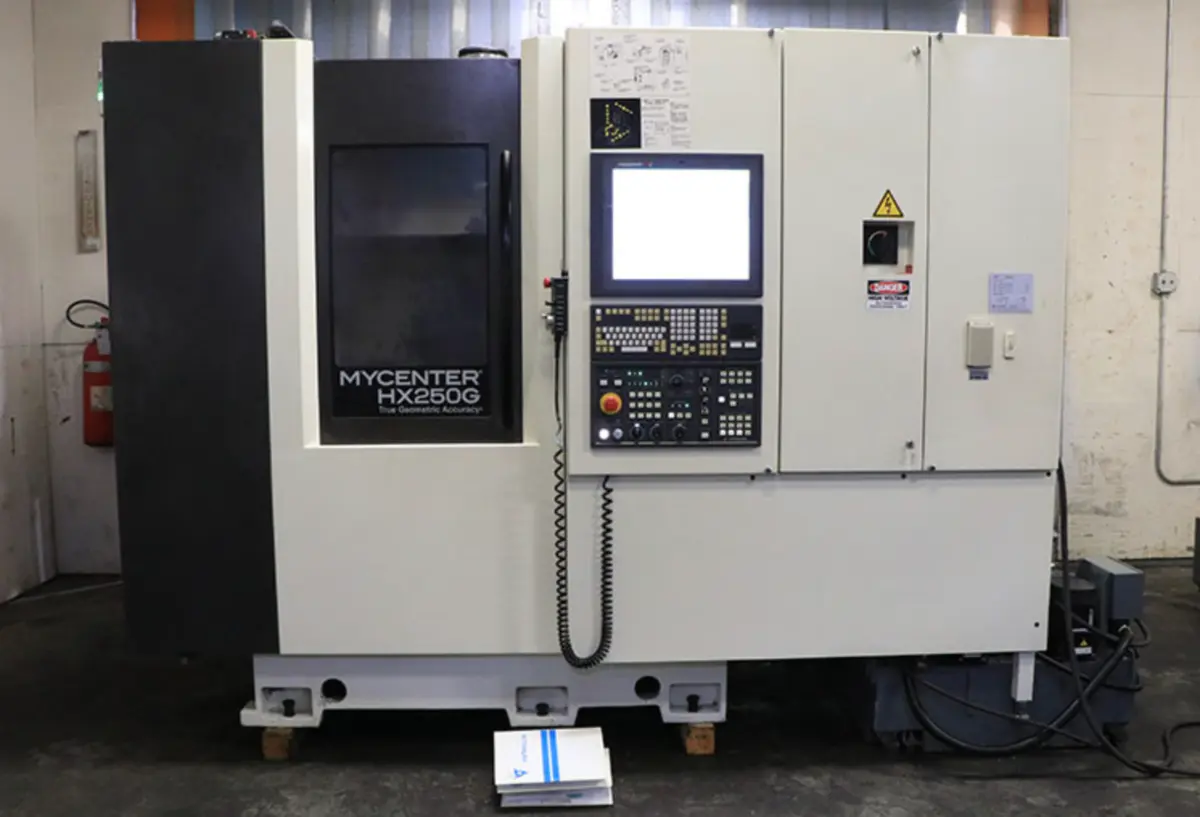

2013 KITAMURA MYCENTER HX250G
Have one to sell?
ConditionUsed
1 available

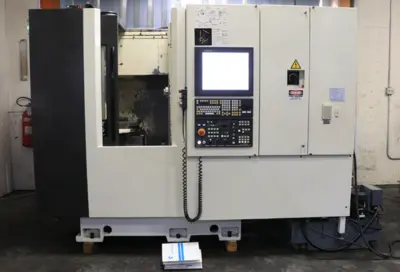

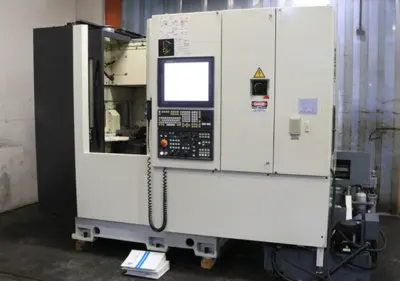

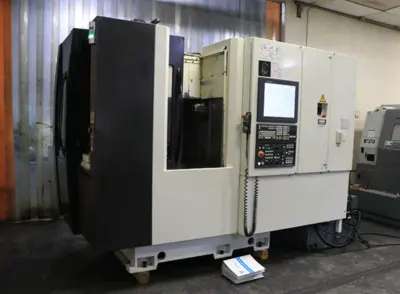

Used Horizontal Machining Center available. Features include 12"x12"x13" axis travel, 15 HP, 15,000 RPM spindle, 40 tool positions, BT-30 taper, and KITAMURA ARUMATIK-MI 4-axis CNC. Includes full 4th axis and chip conveyor.
X-AXIS TRAVEL ....................... 12"
Y-AXIS TRAVEL ....................... 12"
Z-AXIS TRAVEL ....................... 13"
SPINDLE POWER ....................... 15 HP
SPINDLE SPEED ....................... 15,000 RPM

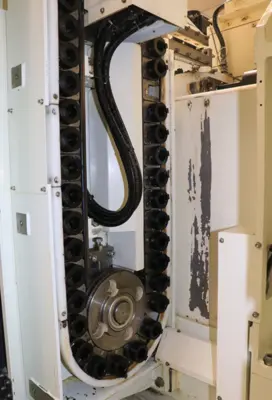

TOOL POSITIONS ..................... 40
SPINDLE TAPER ....................... BT-30
PALLET DIMENSIONS ................... 10" X 10"
NUMBER OF PROGRAMMABLE AXES ......... 4
MAXIMUM WORKPIECE DIAMETER .......... 13.8"
MAXIMUM WORKPIECE HEIGHT ............ 15.8"
RAPID FEED RATES X,Y,Z .............. 2,362 IPM
CUTTING FEED RATE X,Y,Z ............. 2362 IPM
RAPID FEED (B-AXIS) ................. 33.3 RPM
NUMBER OF PALLETS ................... 2
APC CHANGE TIME ..................... 8 SECONDS
REQUIRED FLOOR SPACE .......... 111.5" X 116.1" X 89.9" H
APPROXOMATE MACHINE WEIGHT .......... 12,000 LBS

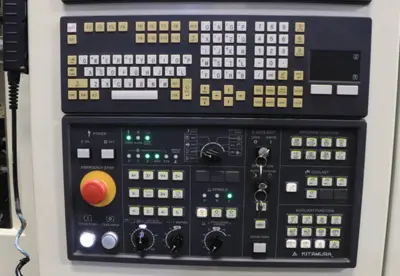

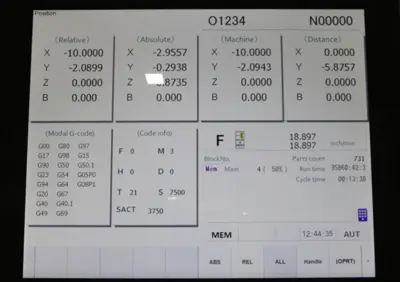

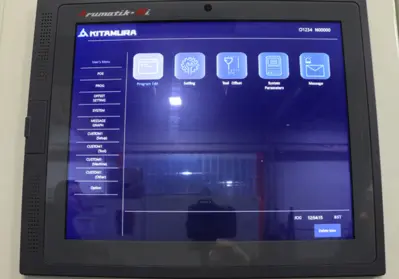

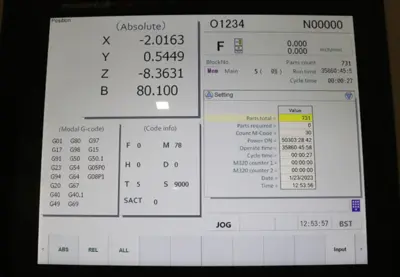

KITAMURA ARUMATIK-MI 4-AXIS CNC CONTROL

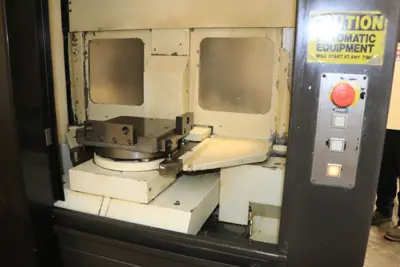

FULL 4TH AXIS
COOLANT THROUGH THE SPINDLE 220 PSI
CHIP CONVEYOR
