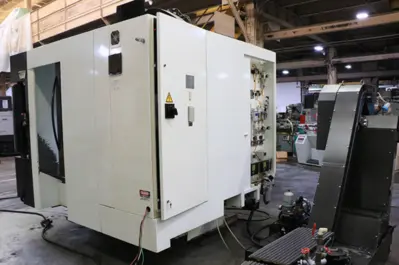

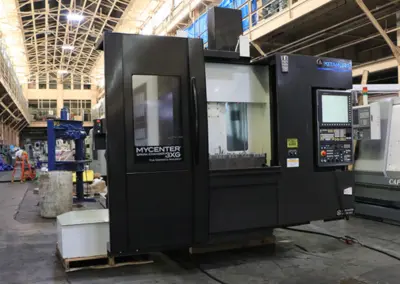

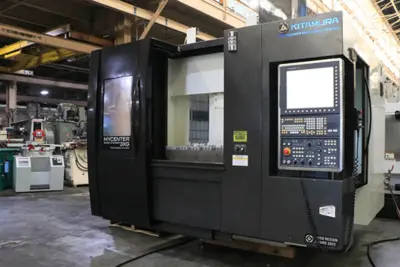

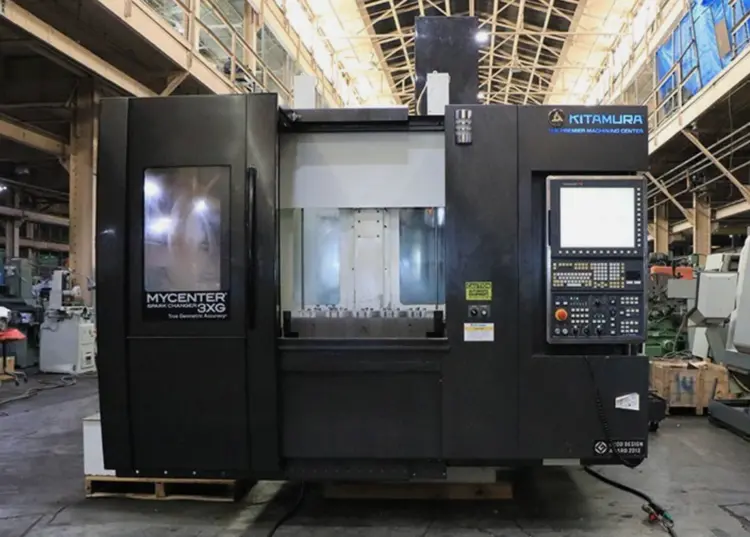

2015 KITAMURA MYCENTER 3X

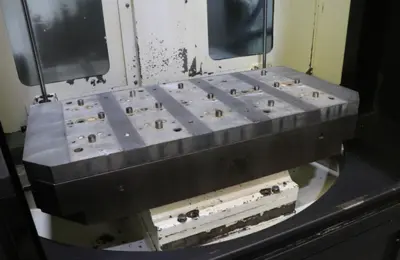

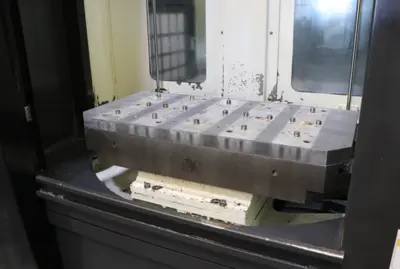

TABLE SIZE (2 PALLETS) .............. 16.1" X 34"
MAXIMUM TABLE LOAD .................. 440 LBS
NUMBER OF PALLETS ................... 2
APC CHANGE TIME ..................... 7.8 SECONDS
TRAVELS:
X-AXIS .............................. 30"
Y-AXIS .............................. 17.9"
Z-AXIS .............................. 18.1"
DISTANCE FROM TABLE TOP
-TO SPINDLE NOSE .................... 5.1" TO 23.2"
SPINDLE TAPER ....................... CAT 40, DUAL CONTACT SPINDLE
SPINDLE SPEED ....................... 40 TO 15,000 RPM
SPINDLE MOTOR ....................... 10/15/20 HP
TOOL STORAGE CAPACITY ............... 30 TOOLS
RAPID FEED (X,Y / Z AXIS) ........... 1,969 IPM / 1,417 IPM
MAX CUTTING FEED, X,Y,Z ............. 1,417 IPM
MACHINE DIMENSIONS:
REQUIRED SPACE ...................... 137" W X 142" D
MACHINE HEIGHT ...................... 119.6"
MACHINE NET WEIGHT .................. 17,000 LBS
