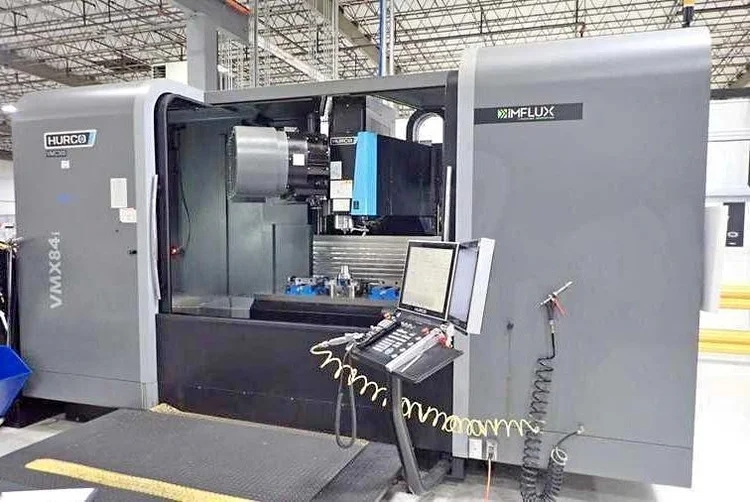

2015 HURCO VMX84I
Have one to sell?
ConditionUsed
1 available

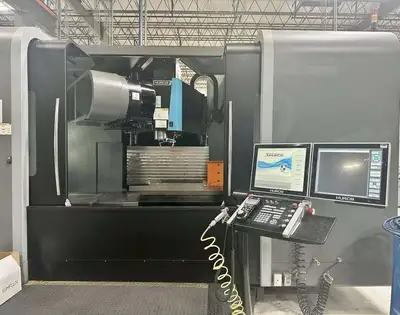

Used vertical machining center, featuring a 4-axis, 86"x34" table, 84" X-axis travel, and 12,000 RPM spindle with 24 HP. Equipped with WinMax CNC, 40-station ATC, and features like Renishaw probe and chip conveyor. 2,138 spindle hours.
# Axis.................................................. 4

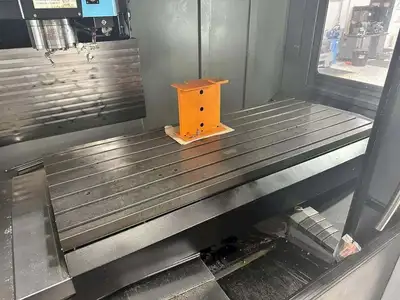

Table Size.............................................. 86" x 34"
Table Load Capacity..................................... 5,000 LBS
X-Axis (Longitudinal Travel)............................ 84"
Y-Axis (Cross Travel)................................... 34"
Z-Axis (Vertical Travel)................................ 30"
Max/Min Clearance Tabletop to Spindle Nose.............. 35.8" / 5.8"
Feed Rates, All Axes.................................... 530 IPM
X-Axis Rapid Traverse Rate.............................. 709 IPM
Y-Axis Rapid Traverse Rate.............................. 709 IPM
Z-Axis Rapid Traverse Rate.............................. 530 IPM

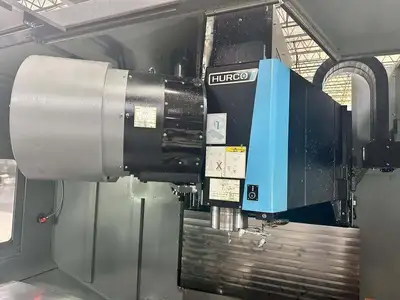

Spindle Horsepower...................................... 24 HP
Max Spindle Speed....................................... 12,000 RPM
Spindle Taper........................................... 40 Taper Big Plus
Coolant Thru Spindle.................................... yes
Automatic Tool Changer Capacity (ATC)................... 40
Automatic Tool Changer Style............................ Side-Mount
Max Tool Length......................................... 11.8"
Max Tool Diameter....................................... 2.95"
Max Tool Weight......................................... 15.4 LBS
Machine Spindle Hours................................... 2,138
Electrics............................................... 460/3/60
Operating Floor Space (LxWxH)........................... 298" x 175" x 128"
Approximate Machine Weight.............................. 40,000 LBS

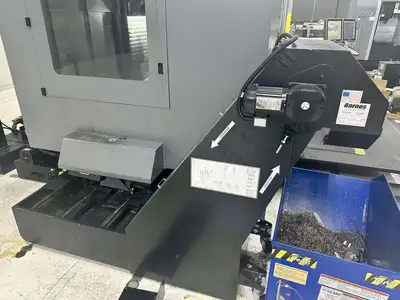

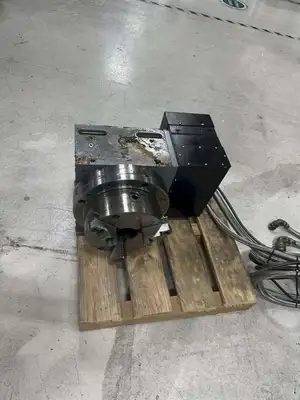

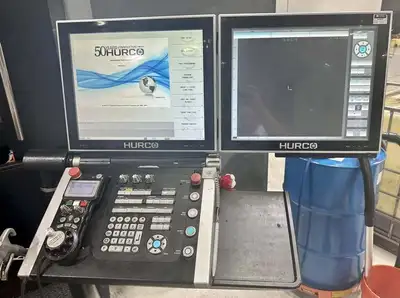

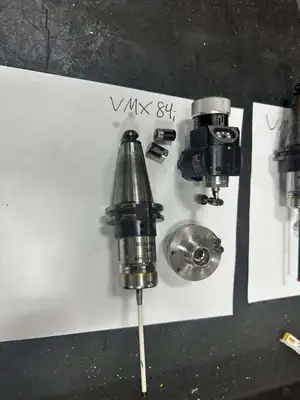

Hurco WinMax Dual Screen CNC, Hurco 10" H320 4th Axis CNC Rotary Table, Renishaw Part and Tool Probe, 40 Station Automatic Tool Changer, Metal Way Covers, Deluxe Chip Conveyor, Optional High Pressure Coolant System.

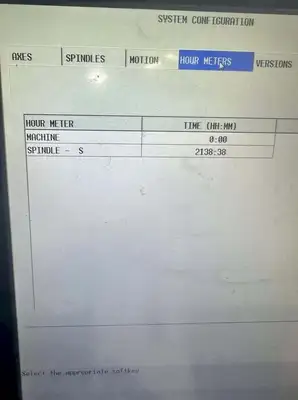

2,138 Spindle Hours.
