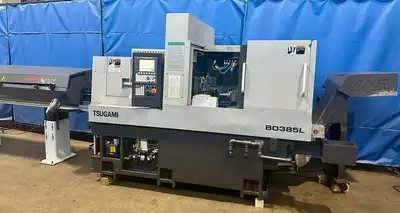

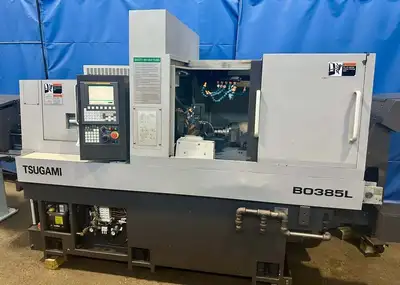

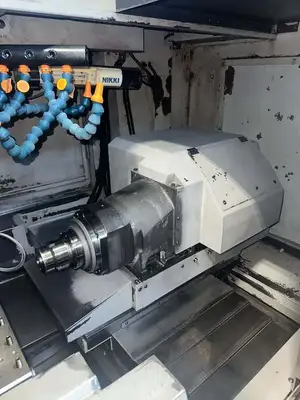

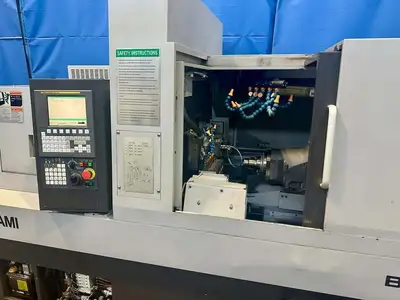

2011 TSUGAMI B0385L
Have one to sell?
ConditionUsed
1 available

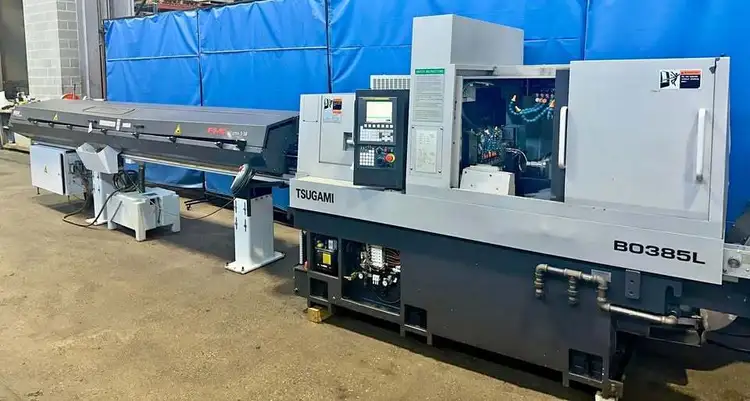

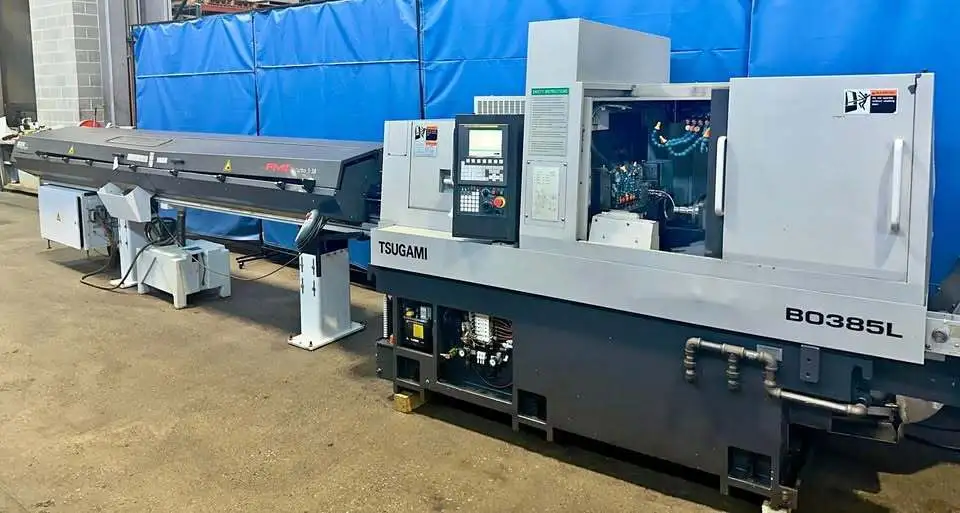

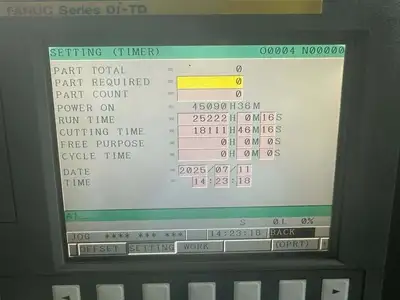

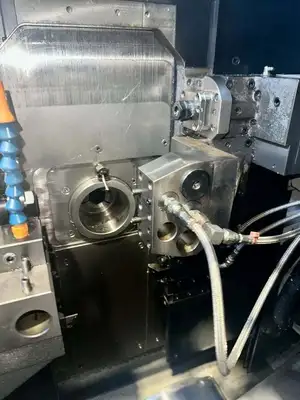

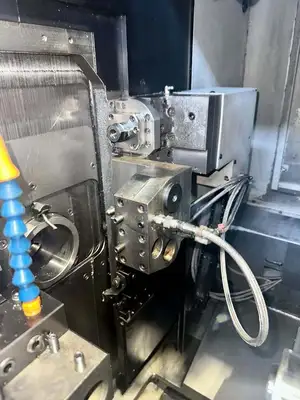

Used Swiss Type Screw Machine. 5-axis, max barstock diameter 1.4961", workpiece length 3.937". Equipped with Fanuc Oi-TD CNC, 23 tool storage, 12' bar feeder, coolant system, and chip conveyor.
Axis.......................................... 5
Max Working Barstock Diameter................. 1.4961"
Max Workpiece Length.......................... 3.937"
Max Drilling Diameter Main Spindle............ 0.5118"
Max Tapping Diameter Main Spindle............. M12
Max Barstock Diameter Back Spindle............ 1.4961"
Max Drilling Diameter Back Spindle............ 0.4724"
Max Tapping Diameter Back Spindle............. M12
Max Drilling Diameter Tool Spindle............ 0.3937"
Max Tapping Diameter Tool Spindle............. M8
Max Slotting Cutter Diameter Tool Spindle..... 1.7717"
Main Spindle Speed Range...................... 200-6,000 RPM
Back Spindle Speed Range...................... 200-7,000 RPM
Tool Spindle Speed Range...................... 200-5,000 RPM
Total Tool Storage Capacity................... 23
Tool Size..................................... 787" x .787" x 4.92"
X1-Axis Rapid Traverse Rate................... 944.9 IPM
Y1-Axis Rapid Traverse Rate……................. 944.9 IPM
Z1-Axis Rapid Traverse Rate................... 944.9 IPM
X2-Axis Rapid Traverse Rate................... 1,259.8 IPM
Spindle Index................................. C1 Axis and C2 Axis
Main Spindle Power............................ 14.8 hp
Back Spindle Power............................ 7.4 hp
Cross Drill of Front Tool Post Power.......... 1.3 hp
Cross Drill of Rear Tool Post Drive........... 1.3 hp
Z1 Axis Power................................. 1.6 hp
X1 Axis Power................................. 1 hp
Y1 Axis Power................................. 1 hp
X2 Axis Power................................. 3.4 hp
Z2 Axis Power................................. 3.4 hp
Coolant Pump Power............................ 0.8 hp
Lubricating Oil Pump Power.................... 0.004 hp
Power Source Requirement...................... 30 kVA
Compressed Air Requirement.................... 58 PSI
Air Discharge Rate............................ 3.5 SCFM
Coolant Tank Capacity......................... 51.5 gal
Dimensions.................................... 99.2" x 52.95" x 77.56"
Weight........................................ 10,150 lbs

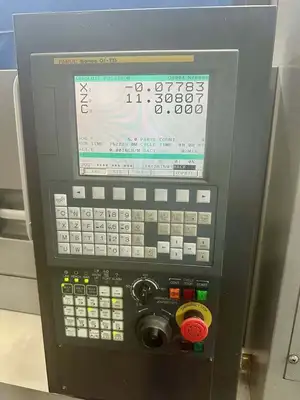

Fanuc Oi-TD CNC Control, Max Barstock Diameter 38 mm, Max Workpiece Length 100 mm, Main Spindle/Back Spindle/Tool Spindle, 5-Axis=Z1-X1-Y1-X2-Z2, 23 Total Tool Storage, 12' Edge Technologies FMB 3-38 Bar Feeder, 1000 PSI MP Systems High Pressure Water Based Coolant System, Coolant Tank & LNS Chip Conveyor, 48 Collets & 10 Toolholders (4 Live) Included, New 2011.
