2024 KINGSTON CJ-30160C
Have one to sell?
ConditionUsed
1 available

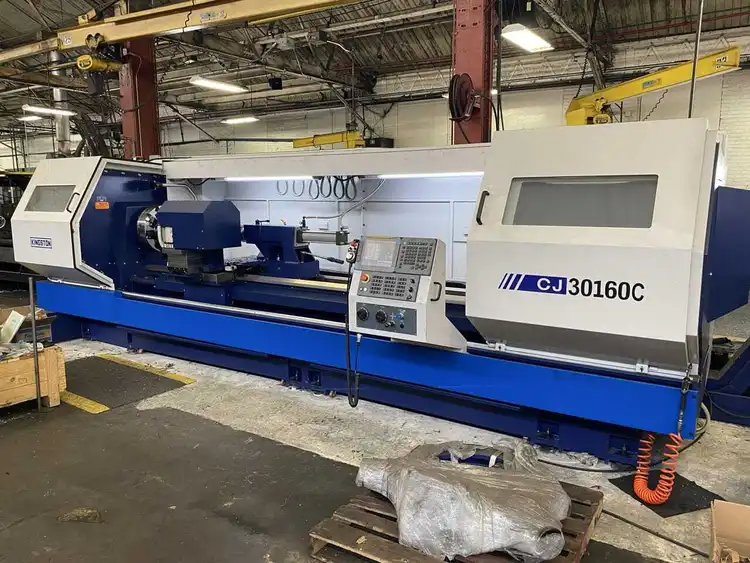

2024 KINGSTON CJ-30160C CNC Lathe, used but robust, features Fanuc OiTF Plus Control, live tooling turret, and a hydraulic tailstock. Max turning length of 144.8". Equipped with various steady rests, auto tool probe, chip conveyor, coolant system, and more.
Swing Over Bed 29.9”
Swing Over Cross Slide 21.8”
Swing in Gap 40.9”
Gap Width from Faceplate 11.8”
Width of Bed 18.9”
Distance between Centers 160”
Spindle Nose A2-11
Spindle bore 6.1”
Spindle Motor: 40/50 HP
Number of Speed Ranges 1
Spindle Speed (variable, RPM) 0- 2000 RPM
Max. Turning Length 144.8”
Max. Stroke (V8) X-Axis 15.3”
Z-Axis 146.8”
X Axis Rapid Traverse 315 IPM
Z Axis Rapid Traverse 275 IPM
Servo Motor X Axis 11 Nm
Servo Motor Z Axis 20 Nm
X-Axis Ballscrew Size: 32 mm, P=5
Z-Axis Ballscrew Size: 50 mm, P=10
Tailstock Quill M.T. No. 6
Tailstock Quill Diameter 4.125”
Tailstock Quill Travel 11.8”
Machine Height 88”
Floor Space (WxL) 264” x 89” x 89”
Machine Weight (lbs.) 16,280 lbs
Total Power Required (Machine only) 26 KVA
Fanuc OiTF Plus Control
Conversational Programming Kingston App
V12 Live Tooling Turret
Direct Spindle Drive
C Axis Hydraulic Spindle Brake + Encoder
Two Electric Handwheels on Control Panel
One Remote MGP Handwheel
Coolant System
Automatic Lubrication
8.3″ Steady Rest w/Roller Jaws (1.96″-8.26″)
14.9″ Steady Rest w/Roller Jaws (7.87″-14.9″)
19.7″ Steady Rest w/Roller Jaws (13.8″-19.7″)
Follow Rest (0.79″-6.30″)
Fanuc A30i Servo Spindle Motor
Boring Bar Holder on Cross Slide
Hydraulic Tail Stock
TMX MT #6 Heavy Duty Live Center
Auto Tool Probe
Transformer

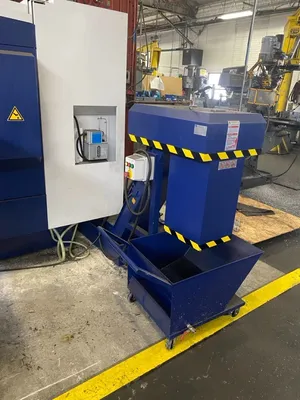

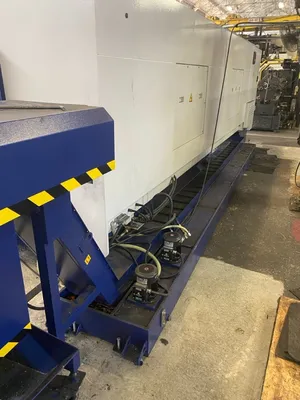

Chip Conveyor
TMX 25″ 4 Jaw Chuck w/2 piece reversible Top Jaws (6.3″ Bore)
TMX 25″ 3 Jaw Chuck w/2 piece reversible Top Jaws (7.4″ Bore)
Full Length Rear Splash Guard
Chip Trolley
Work Light
Leveling Blocks
Centers & Center Sleeves
Service Tools
All Manuals
