2016 SAMSUNG SL 2500ASY
Have one to sell?
ConditionUsed
1 available

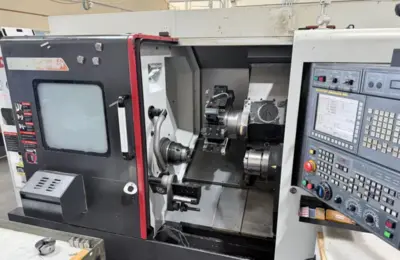

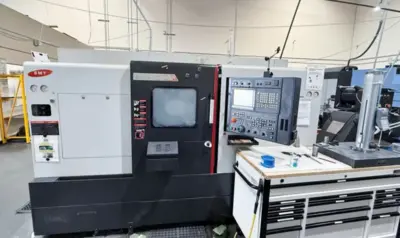

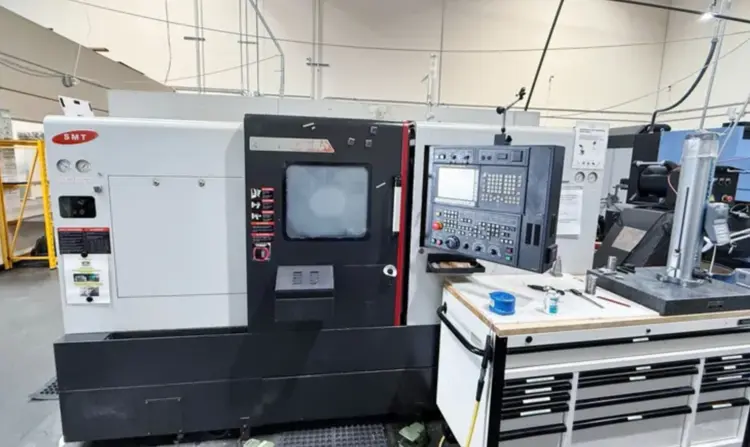

2016 Samsung SL 2500ASY CNC Lathe offers robust machining. Features 25.5" swing over bed, 20 hp motor, live milling, Y-axis, and sub-spindle. Equipped with FANUC 0i-TF, chip conveyor, and hydraulic chucks. Cutting time: 11,407 hours. Perfect for metalwork.
SWING OVER BED 25.5"
MAX CUTTING DIAMETER 14.1"
MAX CUTTING LENGTH 20.4"
X-AXIS TRAVEL 9.2"
Y-AXIS Yes
Y-AXIS TRAVEL 3.93"
Z-AXIS TRAVEL 22.8"
CHUCK SIZE 8"
BAR CAPACITY 2.6"
SPINDLE NOSE A2-6
SPINDLE MOTOR 20 hp
SPINDLE SPEED 4,000 RPM
SUB SPINDLE Yes
SUB SPINDLE - CHUCK SIZE 6"
TURRET CAPACITY 24
TURRET TYPE BMT65

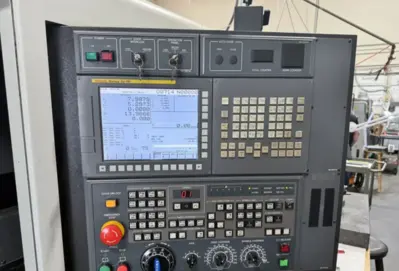

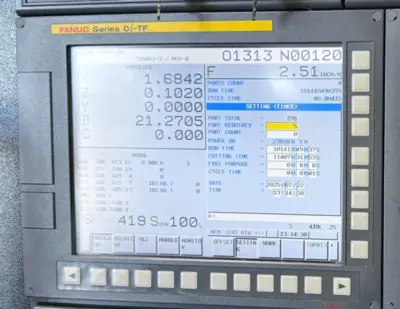

FANUC 0i-TF CONTROL
Y-AXIS
LIVE MILLING

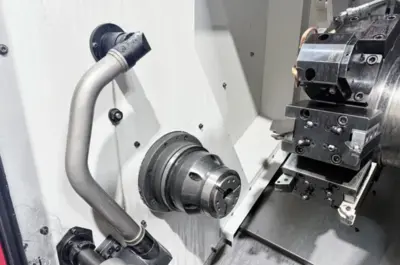

SUB SPINDLE
8”, 3-JAW HYDRAULIC CHUCK (MAIN)
6”, 3-JAW HYDRAULIC CHUCK (SUB)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR

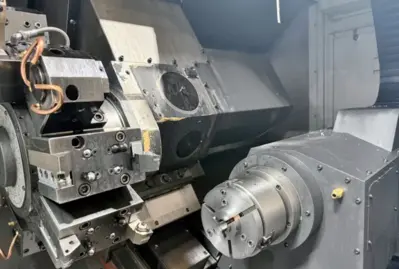

24-POSITION BMT65 TURRET
(1) RADIAL LIVE TOOL HOLDER
(1) AXIS LIVE TOOL HOLDER
** AS OF JULY 2025, CUTTING TIME – 11,407 HOURS
** MACHINE CUT ALUMINUM, INCONEL & STAINLESS
