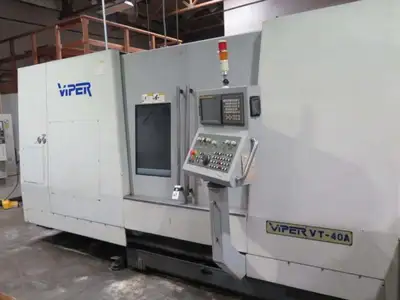

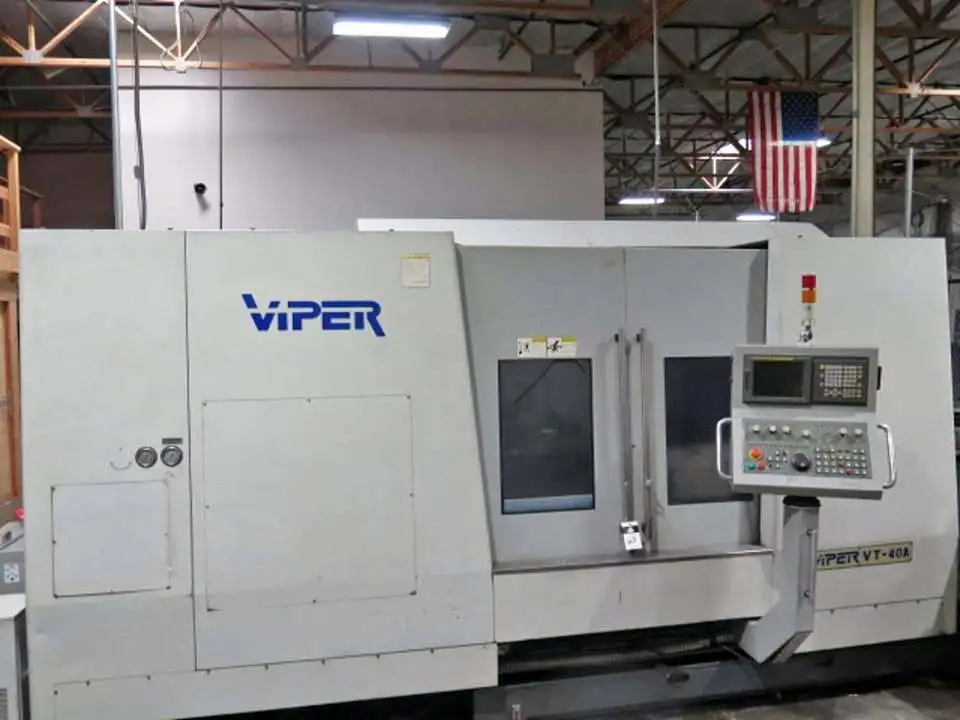

2005 MIGHTY VIPER VT-40A
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe, equipped with Fanuc 21i-TB Control, 15" 3-Jaw Chuck, 12-Position Turret, and more. Specs: 39.37" swing, 34.64" max turn, 60 HP motor, 2000 RPM spindle. Dimensions: 161" x 110". Weight: 28,600 lbs.
Swing Over Bed: 39.37"
Maximum Turning Diameter: 34.64"
Swing Over Cross Slide: 29.13
Maximum Turning Length: 37.79"
Slideway Slant Angle: 45 Degrees
X-Axis Travel: 17.72"
Z-Axis Travel: 39.37"
Spindle Nose: A2-11
Spindle Hole Diameter: 5.15"
Bar Capacity: 4.52"
Spindle Drive Motor (Upgraded): 60 HP
Spindle Speed Range (2-Speed Gearbox): 1 - 2000 RPM
X-Axis Rapid Traverse: 590 IPM
Z-Axis Rapid Traverse: 629.92 IPM
Approximate Floor Space: 161" x 110"
Approximate Weight: 28,600 Lbs.

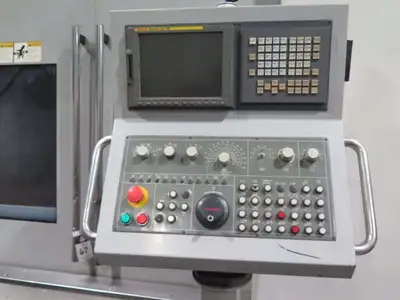

Fanuc 21i-TB CNC Control

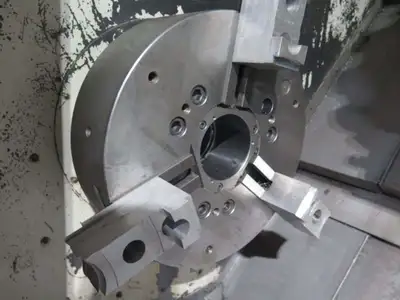

15" 3-Jaw Chuck

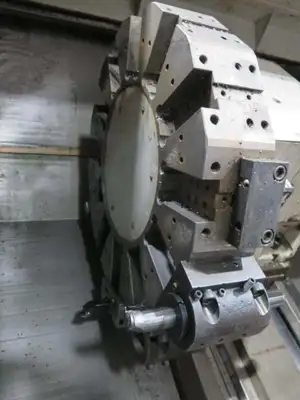

12-Position Turret

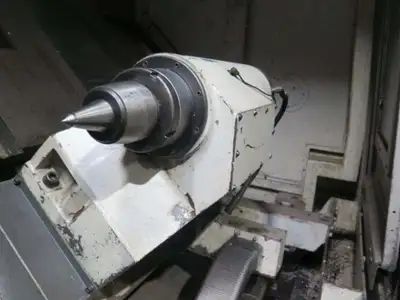

Programmable Tailstock
Automatic Lubrication
Coolant System
Heat Exchanger
Built in Work Light
Front Door Safety Lock
Chip Conveyor
