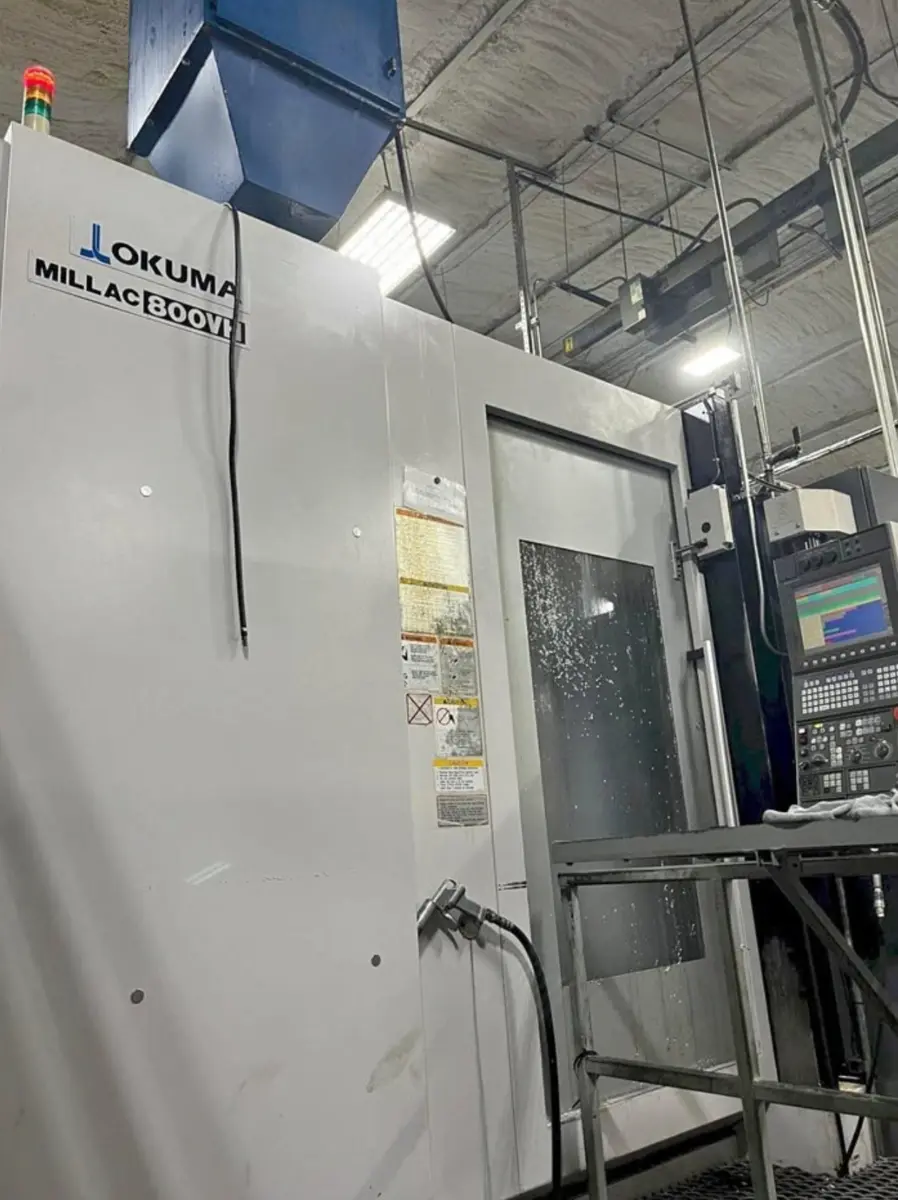

2008 OKUMA MILLAC 800VH
Have one to sell?
ConditionUsed
1 available

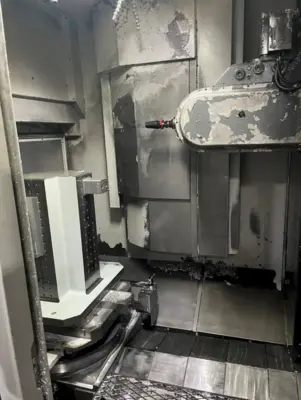

Used Universal Machining Center. This powerhouse features a 5-axis setup, dual 31.5" pallets, and a robust 10,000 RPM spindle. Equipped with 80-tool changer, tool breakage detection, and Renishaw probing.
Axis............................................................ 5
# Pallets....................................................... 2
Pallet Dimensions............................................... 31.5" x 31.5"
Number of Index Positions....................................... 360,000
Max Table Load.................................................. 2,200 LBS
X-Axis (Cross Travel)........................................... 40.16"
Y-Axis (Vertical Travel)........................................ 40.16"
Z-Axis (Column Travel).......................................... 40.16"
A-Axis (Spindle Tilt Degree).................................... 150°
B-Axis (Spindle Swivel Rotation)................................ 001°
Max Spindle Nose to Pallet Top (Vertical)....................... 35.22"
Min Spindle Nose to Pallet Top (Vertical)....................... -3.94
Max Spindle Center to Pallet Center (Vertical).................. 38.19"
Min Spindle Center to Pallet Center (Vertical).................. -1.97"
Max Spindle Center to Pallet Top (Horizontal)................... 46.05"
Min Spindle Center to Pallet Top (Horizontal)................... 5.91"
Max Spindle Nose to Pallet Center (Horizontal).................. 28.35"
Min Spindle Nose to Pallet Center (Horizontal).................. -11.81"
Distance Floor to Pallet Top.................................... 48.43"
Feed Rate, All Axes............................................. 0.04 to 472 IPM
Rapid Traverse Rate, All Axes................................... 1181 IPM
Spindle Horsepower.............................................. 25 HP
Max Spindle Speed............................................... 10,000 RPM
Spindle Taper................................................... CAT 50

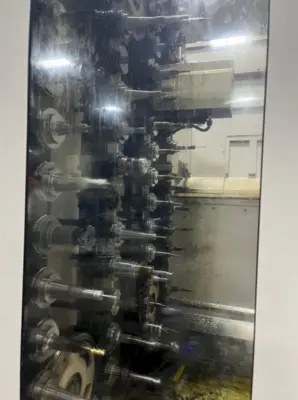

Automatic Tool Changer Capacity................................. 80
Approx Machine Dimensions....................................... 187.4" x 248"
Approximate Machine Height...................................... 41.73"
Approximate Machine Weight...................................... 48,400 LBS

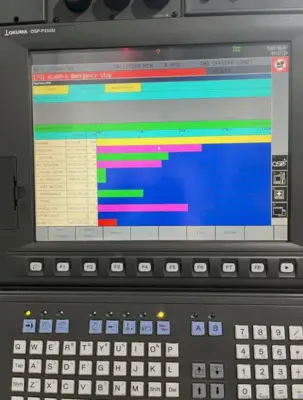

Okuma OSP-200M CNC Control, (2) Pallet 31.5" x 31.5" Pallets with .001° Indexing Positions, 10000 RPM Spindle RPM, 80 Position Automatic Tool Changer, Tool Breakage Detection, FMS Interface, Absolute Scales on XYZ, Renishaw Spindle Probing, Chip Conveyor & Coolant System.
