Axis................................................ 3
Table Size.......................................... 49.61" x 23.62"
Table Load Capacity................................. 2,646 LBS
X-Axis (Longitudinal Travel)........................ 41.34"
Y-Axis (Cross Travel)............................... 20.87"
Z-Axis (Vertical Travel)............................ 20.08"
Max/Min Clearance Tabletop to Spindle Nose.......... 25.98" / 5.91"
Feed Rates, All Axes................................ 0.04 - 787 IPM
Rapid Traverse Rate, All Axes........................ 787 IPM
Spindle Horsepower................................... 20 HP
Spindle Speed Range..................................100 - 20,000 RPM
Spindle Taper........................................ CAT 40 BIG+
Coolant Thru Spindle................................. yes
Automatic Tool Changer Capacity (ATC)................ 30
Machine Hours........................................ 4579
Electrics............................................ 220/3/60
Approximate Machine Dimensions....................... 99" x 99"
Approximate Machine Height........................... 115"
Approximate Machine Weight........................... 15,000 LBS

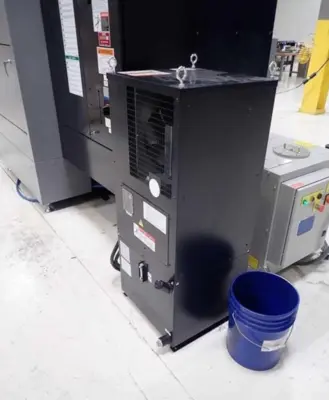

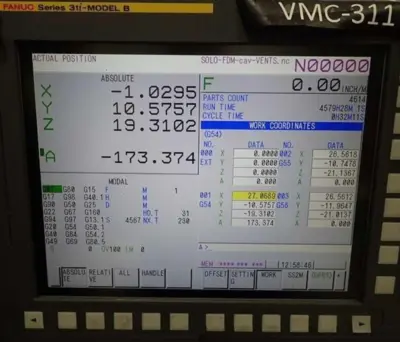

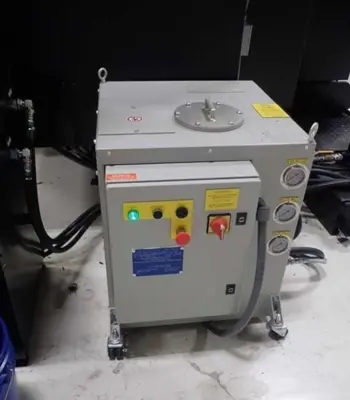

Fanuc 31i-B CNC Control with 512kb Memory, Hyper HQ Mode B and Custom Macro 600, 20000 Spindle RPM, 30-Station Automatic Tool Changer, CAT 40 Big+, Blum Laser for Part Setting, Over-Sized Roller Guide Ways, Fine Pitch Ball Screws, Linear Scale Feedback XYZ, Through Spindle Coolant, ChipBlaster High Pressure Coolant, Spindle Chiller, Chip Conveyor & Coolant System.
This equipment is currently unavailable. Similar equipment available now is shown below.
