Unavailable

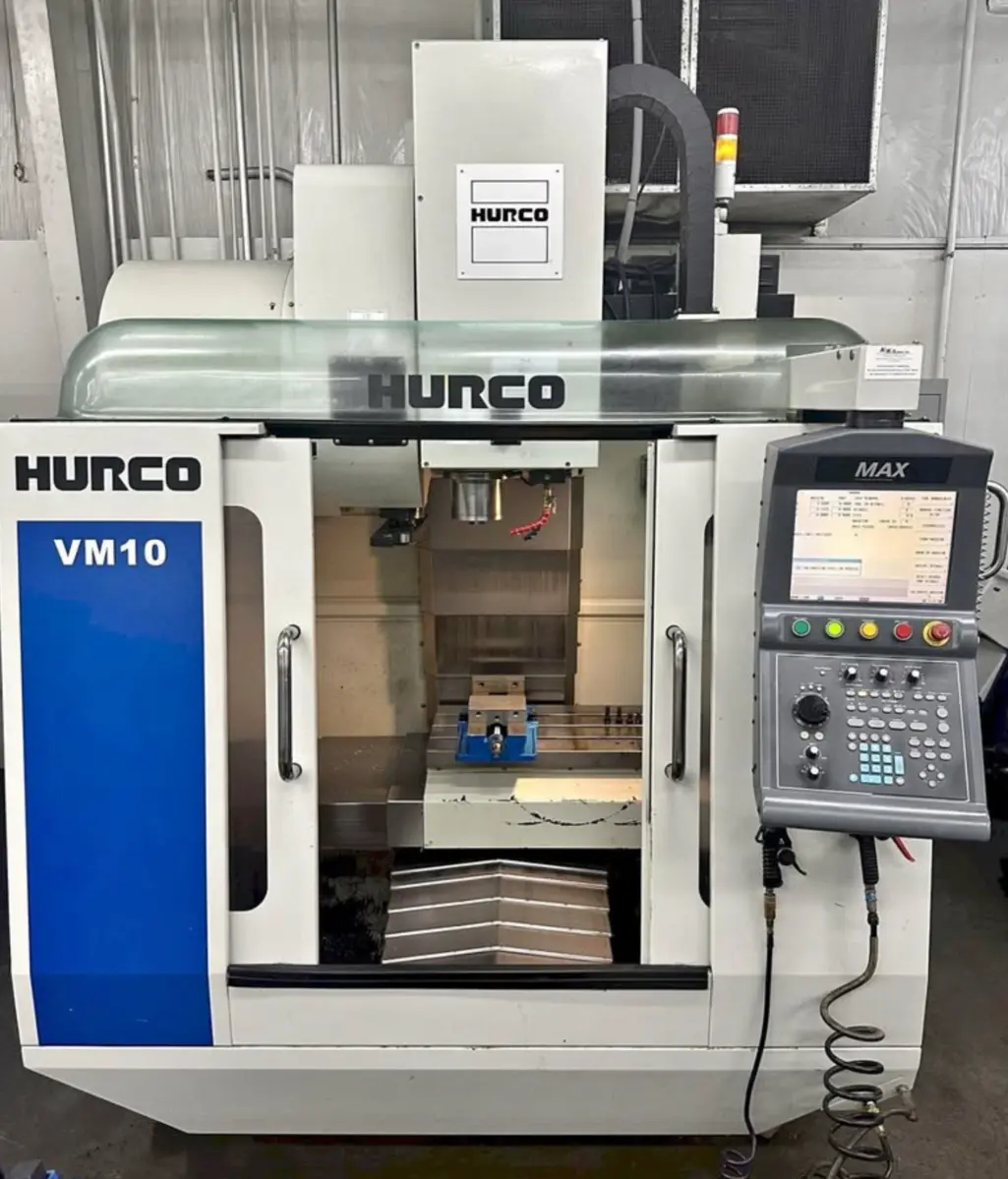

2011 HURCO VM10

Vertical Machining Centers
Manufacturer:
HURCO
Model:
VM10
Year:
2011
Stock #:
X3X2011
Vertical Machining Center, used. Features: 30"x14" table, 15 HP, 10,000 RPM, CAT 40, 20 station ATC, Hurco WinMax CNC Control, automatic lubrication, coolant system. Travel: X: 26", Y: 16", Z: 20".

Table Size............................................... 30" x 14"
Table Load Capacity...................................... 750 LBS
X-Axis (Longitudinal Travel)............................. 26"
Y-Axis (Cross Travel).................................... 16"
Z-Axis (Vertical Travel)................................. 20"
Rapid Traverse Rate, All Axes............................ 945 IPM
Spindle Horsepower....................................... 15 HP
Max Spindle Speed........................................ 10,000 RPM
Spindle Taper............................................ CAT 40
Torque, Up To............................................ 54 FT-LBS @ 1,450 RPM
Automatic Tool Changer Capacity (ATC).................... 20
Automatic Tool Changer Style............................. Side-Mount Swing-Arm
Electrics................................................ 220/3/60
Approximate Machine Dimensions........................... 95" x118"
Approximate Machine Height............................... 100"
Approximate Machine Weight............................... 6,400 LBS

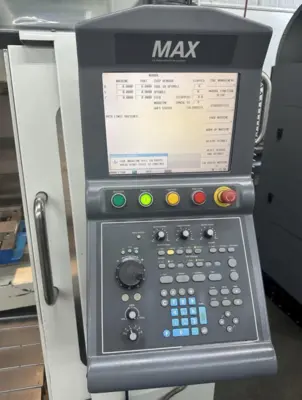

Hurco WinMax CNC Control, 10,000 RPM Spindle, 20 Station Automatic Tool Changer, Automatic Central Lubrication System, Coolant System.

This equipment is currently unavailable. Similar equipment available now is shown below.
