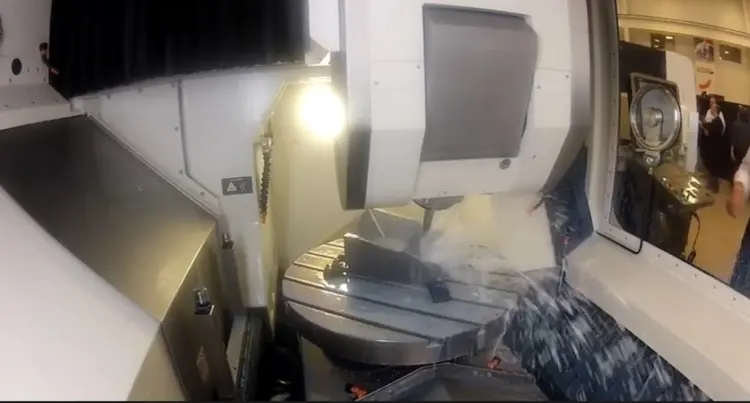

2009 DMG MORI HSC 75 LINEAR

X-axis: 29.5"
Y-axis: 23.6"
Z-axis: 22"
Swivel axis (A / B)-10/+110: degrees
Rotary axis (C): 360 degrees
Main drive:
Max. speed: 28000 rpm
Drive power (40 / 100% DC): 17.4 / 13.4 hp
Torque (40 / 100% DC): 95.9/63.4 ft/lbs
Tool reception: HSK A63
Speed range: 28000 rpm
Output: 73/58 hp
Torque (40 / 100% DC): 35.3 / 28 ft/lbs
Tool holder: 35.3/ 28
Speed range (Option):
Drive power (40 / 100% DC): 17.4/13.4 hp
Torque (40 / 100% DC): 5.9/4.4 ft/lbs
Feed:
Feed range up to: 3,543 ipm
Rapid traverse X / Y / Z: 3,543 ipm
Work table: 37.4 x 25.6
Clamping surface fixed table: 37.4 x 25.6 in
Max. work piece weight: 2204 lbs
Clamping surface NC table: 29.5 in
Speed of the rotary axes (C): 100 rpm
Max. work piece weight: 1763 lbs
Acceleration:
Max. acceleration: 2g
Tool:
Tool magazine: 120 ATC
Max. tool length: 11.8 in
Max. tool diameter: 3.1/5.5 in
Chip-to-chip time: 6 Sec
