2010 MAZAK SLANT TURN NEXUS 550 with 12.5" inch bore and 120" centers
Have one to sell?
ConditionUsed
1 available

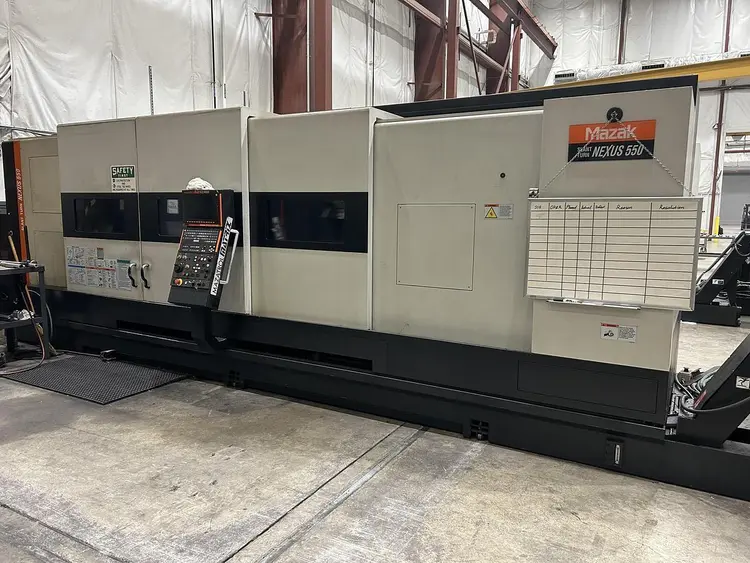

2010 MAZAK SLANT TURN NEXUS 550 CNC Lathe with MAZATROL MATRIX, 24" extended stroke air chuck, 60/50 HP, and 12 turret positions. Features include a max swing of 40.94" and Z-axis travel of 129.875". Comes with manuals, chip conveyor, and more.
Maximum swing Over Bed - 40.94"
Max Machining Dia - 35.8"
Cutting length - 123.7"
DISTANCE BETWEEN CENTERS - 126.75"
X-Axis Travel - 18.25"
Z-Axis Travel - 129.875"
Horse Power - 60/50
Bar capacity - 12.5"
Spindle Speed - 750 rpm

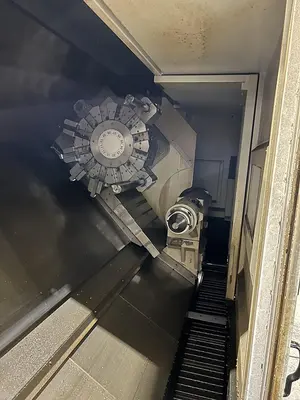

Turret Positions - 12 Drum

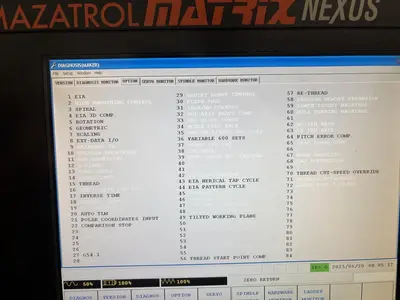

MAZATROL MATRIX with EIA

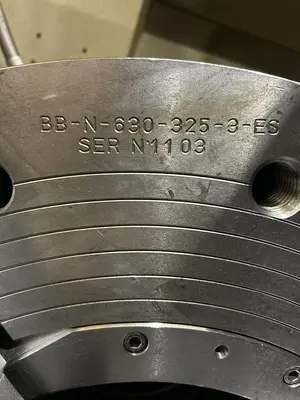

24" EXTENDED STROKE AIR CHUCK W/ 12.5" BORE
12.1 COLOR MONITOR / EIA 3D COM
ALL AVAILABLE MANUALS
CHIP CONVEYOR
HI-PRESSURE COOLANT
RE-THREADING
TAILSTOCK
