2020 HAAS ST-30Y
Have one to sell?
ConditionUsed
1 available

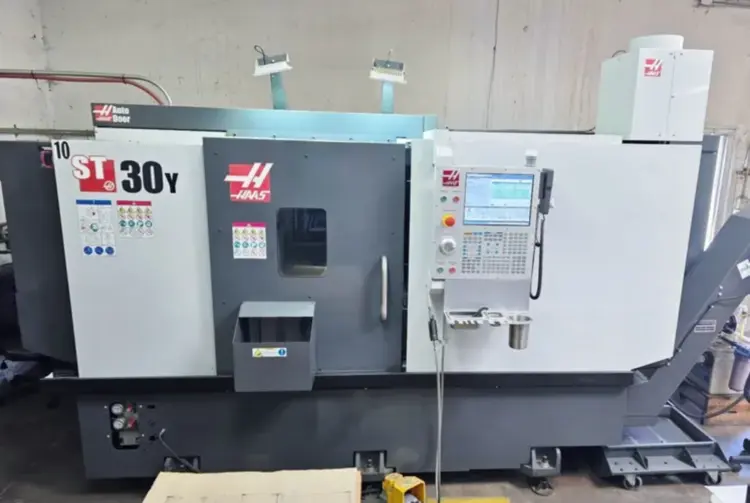

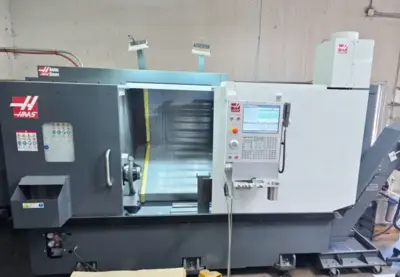

2020 HAAS ST-30Y CNC Lathe. Features Y-axis, sub spindle, 24-station BMT65 turret, and 10" main hydraulic chuck. Equipped with HAAS NextGen Control, live milling, and high-pressure coolant.
SWING OVER BED 21"
MAX CUTTING DIAMETER 13.75"
MAX CUTTING LENGTH 32.5"
X-AXIS TRAVEL 9.4"
Y-AXIS Yes
Y-AXIS TRAVEL +/- 2"
Z-AXIS TRAVEL 32.5"
CHUCK SIZE 10"
BAR CAPACITY 3"
SPINDLE BORE 3.5"
SPINDLE NOSE A2-6
SPINDLE MOTOR 30 hp
SPINDLE SPEED 3,400 RPM
SUB SPINDLE Yes
SUB SPINDLE - CHUCK SIZE 6"
SUB SPINDLE - SPINDLE NOSE A2-5
SUB SPINDLE - SPINDLE SPEED 4,200 RPM
TURRET CAPACITY 24
TURRET TYPE BMT65
LIVE MILLING Yes
LIVE MILLING SPEED 6,000 RPM

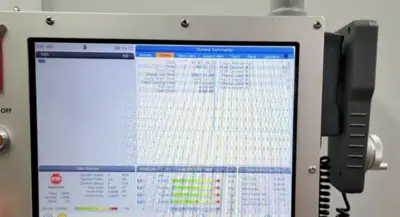

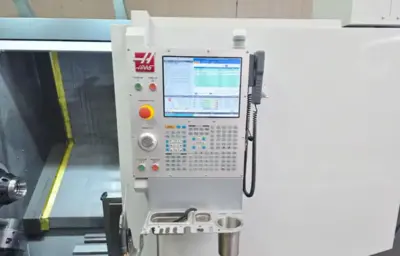

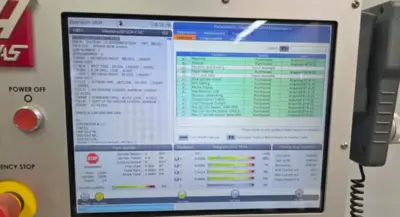

HAAS NEXTGEN CONTROL
Y-AXIS

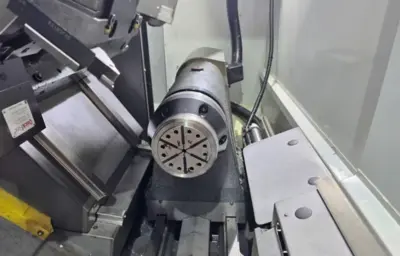

SUB SPINDLE
LIVE MILLING (6,000 RPM UPGRADE)
ROYAL COLLET CHUCKS (MAIN & SUB)

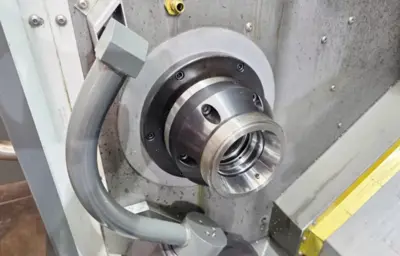

10”, 3-JAW SAMCHULLY HS-10VI HYDRAULIC CHUCK (MAIN)
6”, 3-JAW SAMCHULLY HS-06VI HYDRAULIC CHUCK (SUB)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
AUTO DOOR FOR LATHES

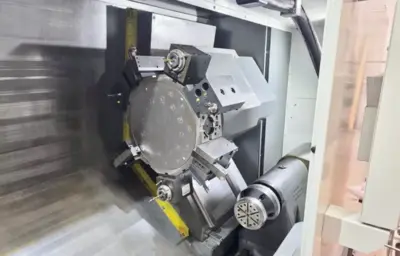

24-STATION BMT65 TURRET
HIGH-PRESSURE COOLANT (1,000 PSI)
AUXILIARY COOLANT FILTRATION SYSTEM
AUTOMATIC COOLANT REFILL SYSTEM

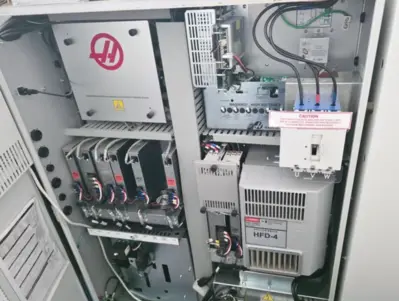

CNC CONTROL CABINET COOLER
ENCLOSURE EXHAUST SYSTEM
COOLANT TANK OIL SKIMMER
AUTO JET AIR BLAST (MAIN SPINDLE)
HIGH-INTENSITY LIGHTING
REMOTE JOG HANDLE
EARLY POWER-FAILURE DETECTION MODULE
VISUAL PART PROGRAMMING SYSTEM (VPS EDITING)
MEDIA DISPLAY M-CODE (M130)
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
ETHERNET
USB PORT
1GB MEMORY
WIFI CONNECTION FOR THE HAAS CONTROL
HAASCONNECT: REMOTE MONITORING
(2) STRAIGHT LIVE TOOL HOLDERS
(2) RIGHT ANGLE LIVE TOOL HOLDERS

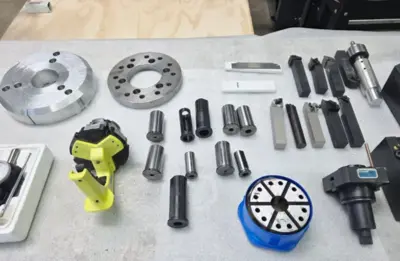

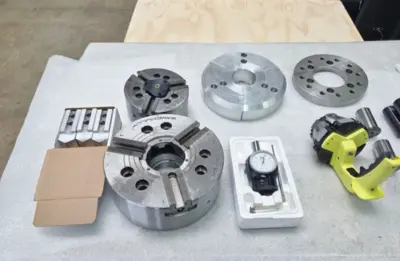

AN ASSORTMENT OF STATIC HOLDERS & COLLETS ATTACHMENTS (SEE PHOTOS)
