2005 HAAS TL-3
Have one to sell?
ConditionUsed
1 available

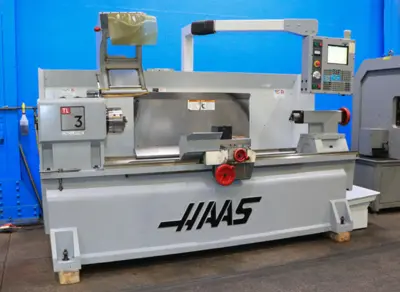

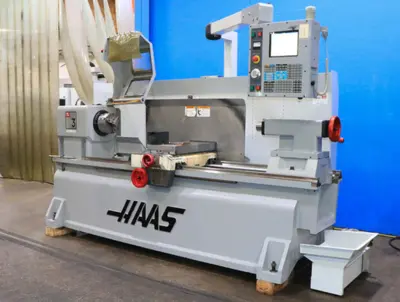

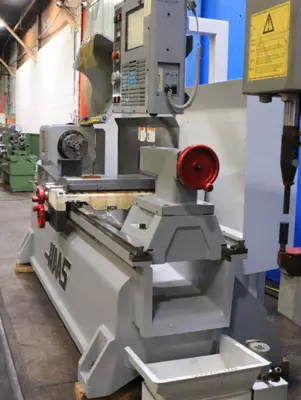

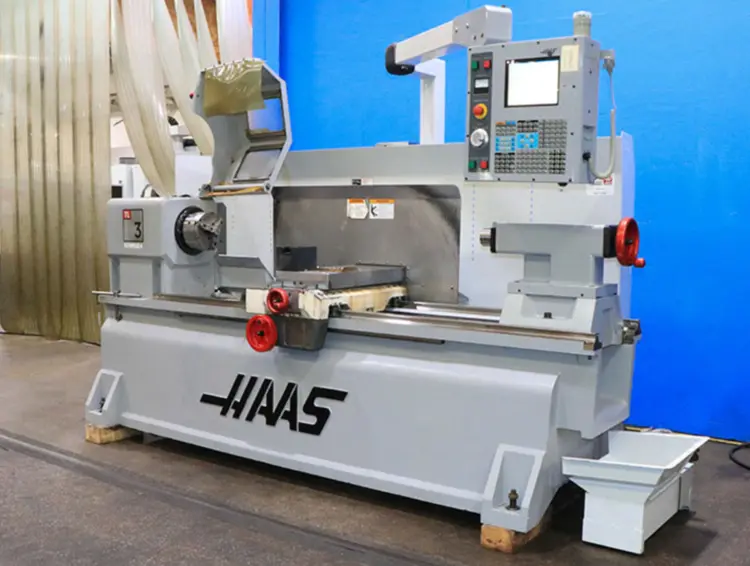

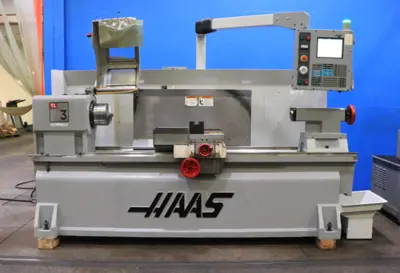

Used CNC Lathe, equipped with HAAS CNC control, intuitive programming, and rigid tapping. Features 30" swing over ways, 60" distance between centers, and 0-1,800 RPM spindle speeds.

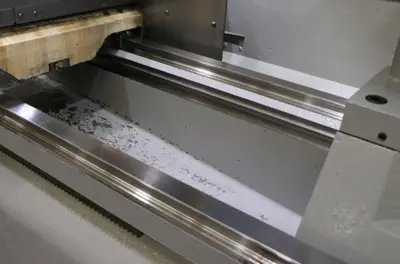

SWING OVER WAYS ....................... 30"
SWING OVER SADDLE WAYS ................ 20"
SWING OVER CROSS SLIDE ................ 13"
DISTANCE BETWEEN CENTERS .............. 60"
SPINDLE NOSE .......................... A2-6
SPINDLE BORE .......................... 3.5"
SPINDLE SPEEDS VARIABLE ............... 0 TO 1,800 RPM
TAILSTOCK SPINDLE TRAVEL .............. 6"
TAILSTOCK TAPER ....................... #5MT
FLOOR SPACE REQUIRED .................. 80"W X 122"L
APPROXIMATE WEIGHT .................... 6,500 LBS.

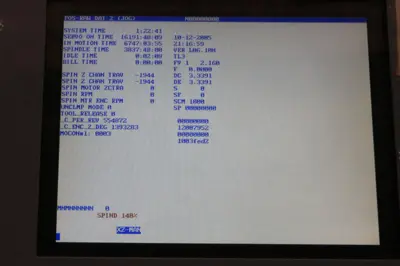

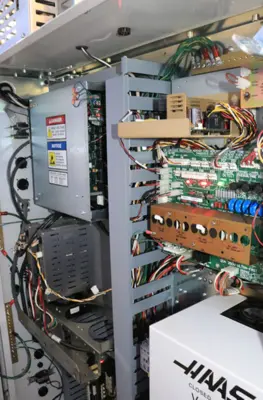

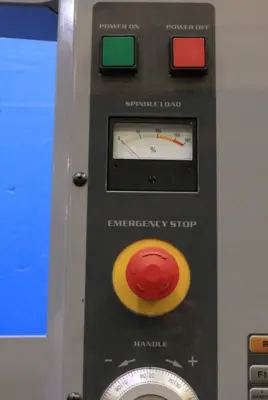

HAAS CNC CONTROL
ALLOWS FULL CNC OPERATION WITHOUT KNOWING G-CODE!
INTUITIVE PROG SYSTEMS, RIGID TAPPING

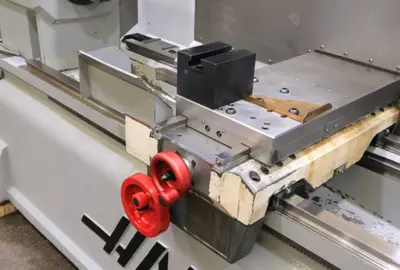

MANUAL HANDWHEELS
TURN PARTS MANUALLY OR AUTOMATICALLY

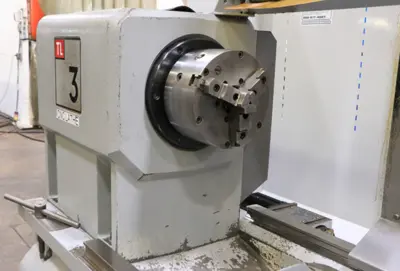

8" 3-JAW BUCK CHUCK
SPINDLE & AXES DRIVES

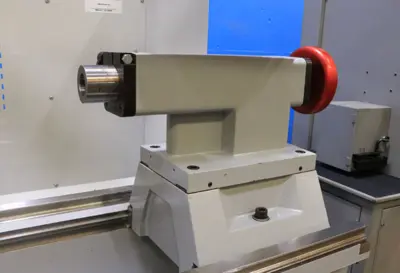

TAILSTOCK WITH MANUAL QUILL
CHIP GUARD
18 HORSE POWER VECTOR SPINDLE DRIVE
