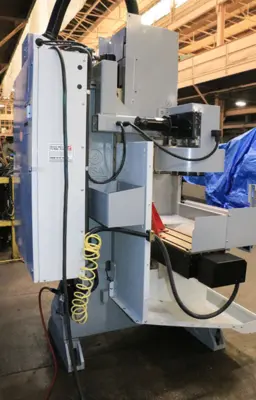

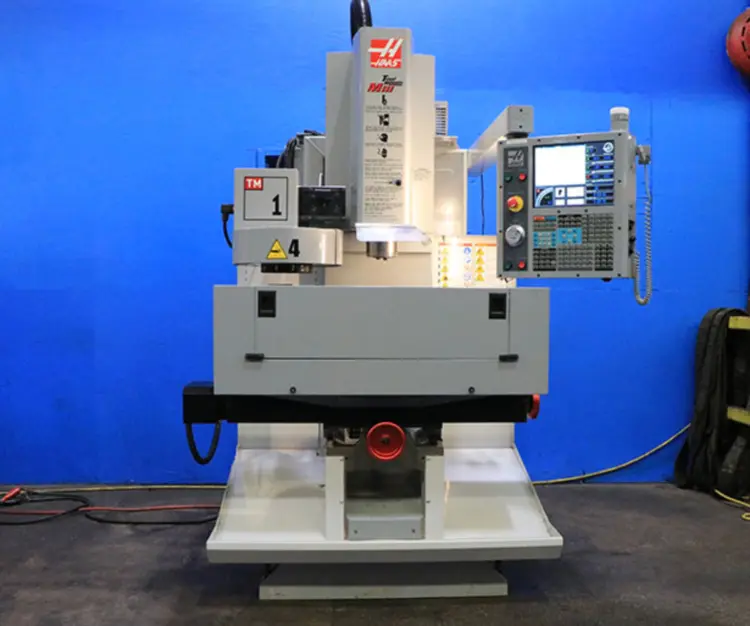

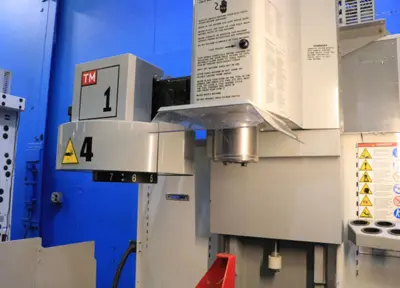

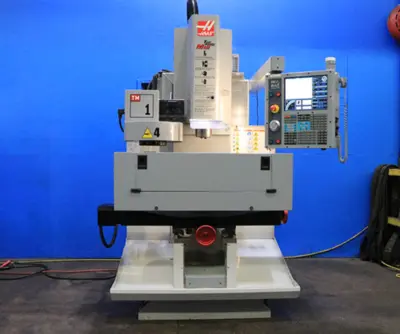

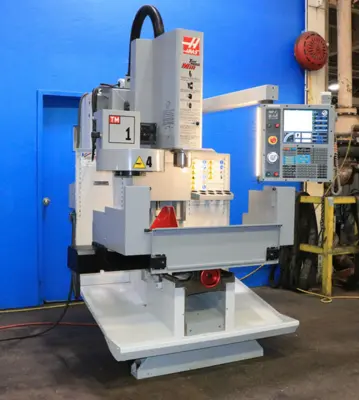

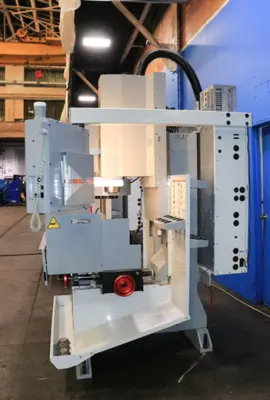

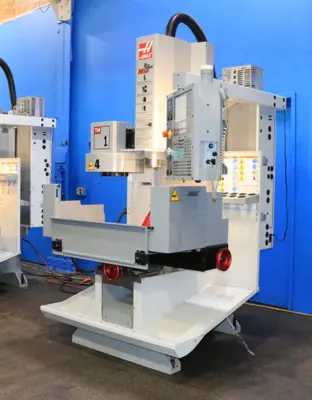

2007 HAAS TM-1
Have one to sell?
ConditionUsed
1 available
Used Vertical Machining Center. Specs: 10.5" x 47.75" table, 1000 lbs capacity, 30"x12"x16" travel, 4000 RPM spindle, 10 ATC. Equipped with HAAS CNC control, high-speed machining, and 7.5 HP spindle drive. Versatile for single/three phase power.

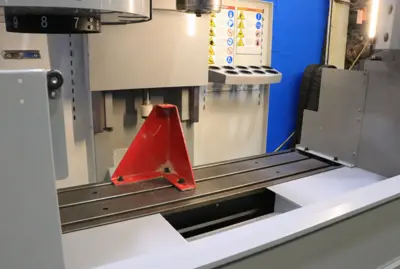

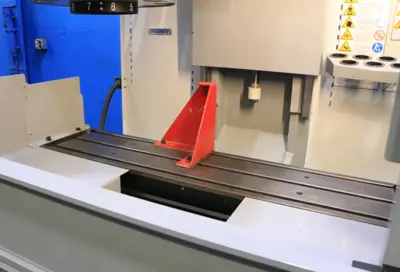

TABLE WORKING SURFACE ................. 10.5" X 47.75"
MAXIMUM WORK PIECE WEIGHT ON TABLE .... 1000 LBS
TRAVELS:
LONGITUDINAL(X) ....................... 30" (762mm)
CROSS(Y) .............................. 12" (305mm)
HEAD(Z) ............................... 16" (406mm)
SPINDLE NOSE TO TABLE ................. 4"-20" (102 - 508mm)
INFINITELY VARIABLE SPINDLE SPEEDS .... UP TO 4,000 RPM
SPINDLE TAPER ......................... #40 CAT
TOOL CHANGER NUMBER OF POSTIONS........ 10 ATC
APPROX. OPERATING DIMENSIONS .......... 86"W X 68"D X 106"H
MACHINE WEIGHT......................... 3850 LBS.

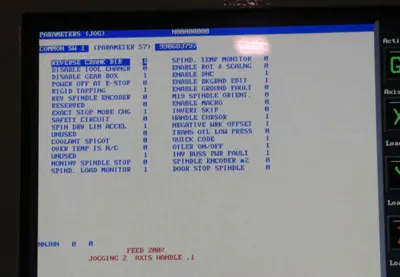

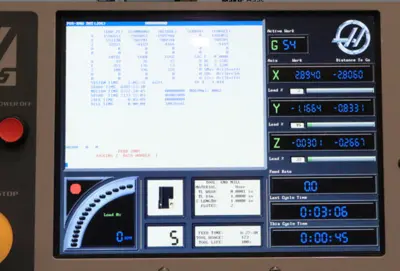

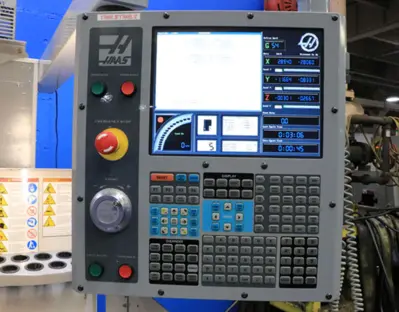

HAAS CNC CONTROL
WITH CONVERSATIONAL OR G CODE PROGRAMMING,
HIGH SPEED MACHINING, RIGID TAPPING, ADV. TOOL MGMT
INTUITIVE PROGRAMMING, QUICK CODE
COLOR CRT, PENDANT MOUNT,
10 STATION ATC

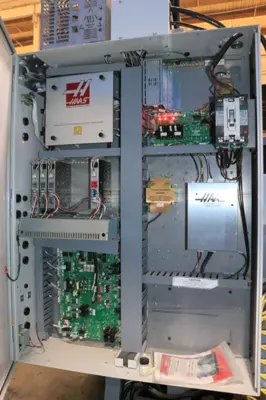

7.5 HORSE POWER SPINDLE DRIVE WITH ELECTRICAL CONTROLS
MACHINE CAN RUN WITH SINGLE PHASE OR THREE PHASE POWER
