2006 DOOSAN PUMA 300LC
Have one to sell?
ConditionUsed
1 available

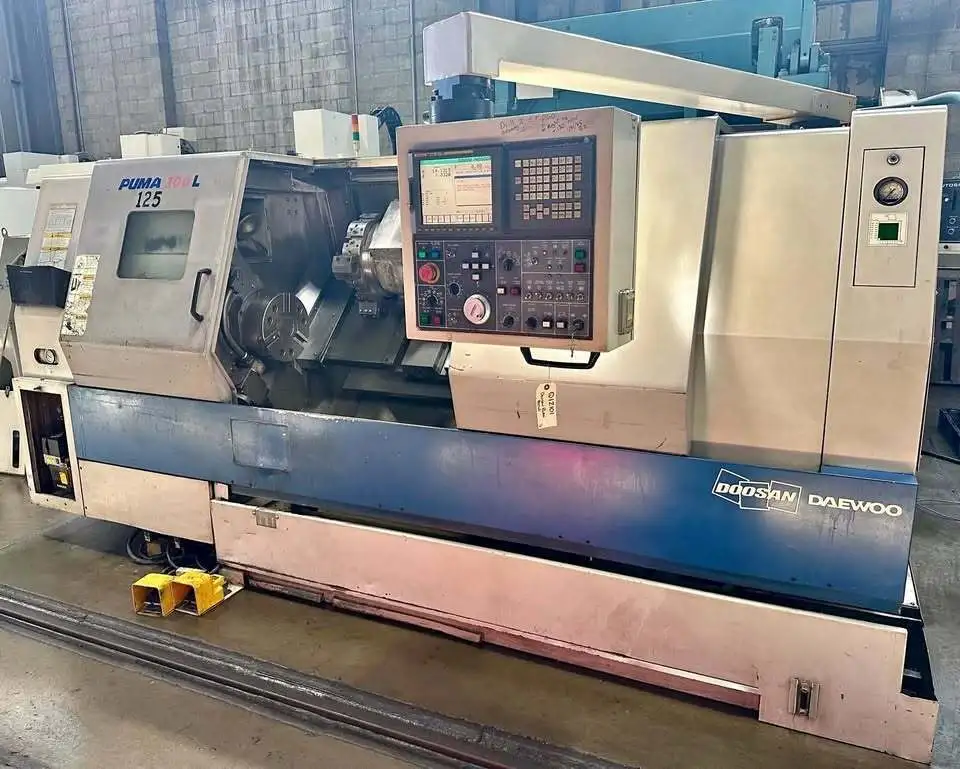

Used CNC Lathe. Features 2-axis, max swing over bed 23", 50.4" turning length, 12" 3-Jaw Hydraulic Chuck, Fanuc 21i-TB control, and more. Equipped for efficient, precise operations with coolant system and chip conveyor.
Axis.................................................. 2
Max Swing Over Bed.................................... 23"
Max Swing Over Saddle................................. 14.5"
Max Turning Length.................................... 50.4"

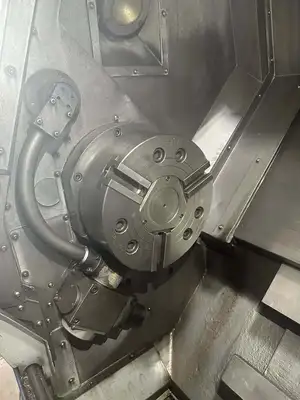

Chuck Size............................................ 12" 3-Jaw
Max Distance Between Centers.......................... 52.8"
X-Axis (Cross Travel)................................. 11.1"
Z-Axis (Longitudinal Travel).......................... 52.4"
X-Axis Rapid Traverse Rate............................. 787 IPM
Z-Axis Rapid Traverse Rate............................. 945 IPM
Sub Spindle............................................ No
# Tool Turrets......................................... 1

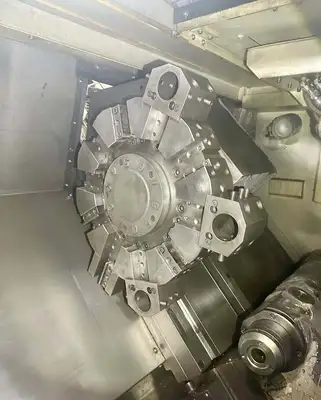

Tool Turret Positions.................................. 10
Live Tooling........................................... No
Spindle Nose........................................... A2-11
Spindle Bore........................................... 4.53"
Bar Capacity........................................... 4"
Spindle Speed Range.................................... 10 - 2,800 RPM
Spindle Power.......................................... 35 HP
Tailstock.............................................. Yes
Tailstock Taper........................................ #5 MT
Tailstock Quill Travel.................................. 4.7"
Tailstock Quill Diameter................................ 3.97"
Dimensions.............................................. 168" x 77" x 80"
Weight.................................................. 18,000 LBS

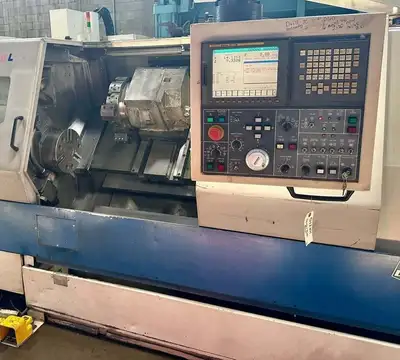

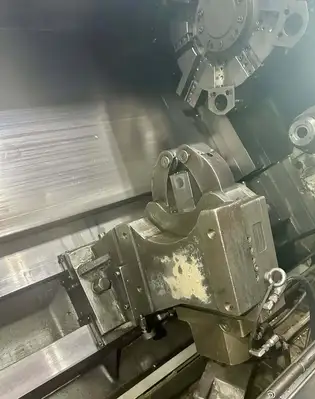

Fanuc 21i-TB CNC Control, RS-232 Port, 12" 3-Jaw Samchully H212 Hydraulic Chuck, 4" Bar Capacity, Turn Through Steady Rest, Automatic Tool Presetter, 12 Position Turret, Tailstock with Programmable Quill, Foot Pedals, Chip Conveyor, Coolant System.
