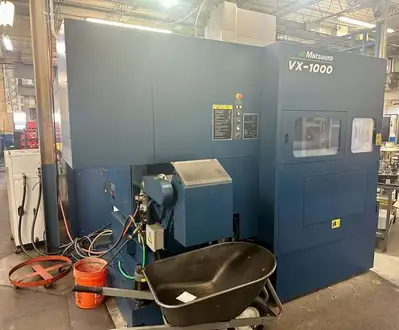

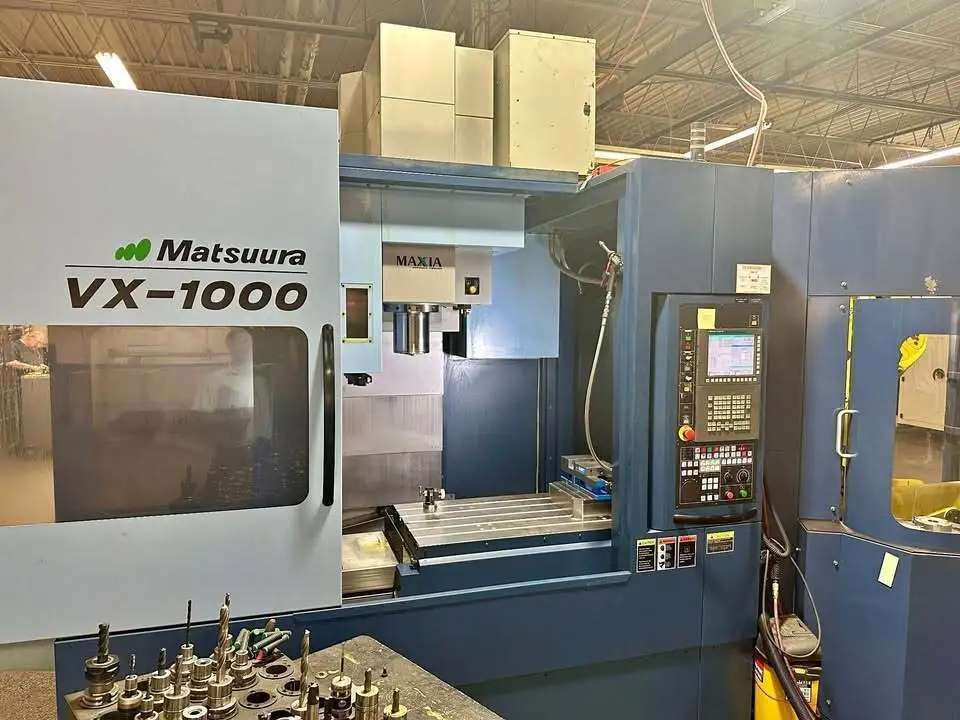

2018 MATSUURA VX-1000

Vertical Machining Centers
Manufacturer:
MATSUURA
Model:
VX-1000
Year:
2018
Stock #:
X4X1982
Used Vertical Machining Center with Fanuc 31i CNC Control. Features include 20,000 RPM spindle, BT40 taper, 30 ATC, pallet shuttle system, and Renishaw probes.
X40.158"1,020 mm
Y24.016"610 mm
Z24.016"610 mm
RPM15,000 RPM15,000 RPM
# ATC3030
TaperBT40BT40
Table-W23.622"600 mm
Table-L47.244"1,200 mm
# Axis33
ControlCNCCNC

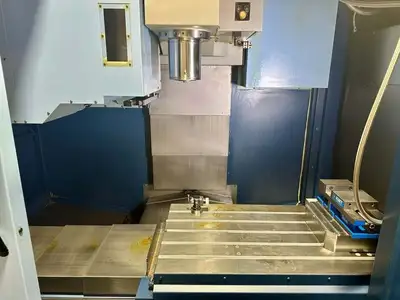

Table Size (L x W).................................. 47.24" x 23.62"
Max Table Load Capacity............................. 1,100 lbs
X-Axis (Longitudinal Travel)........................ 40.15"
Y-Axis (Cross Travel)............................... 24.01"
Z-Axis (Vertical Travel)............................ 24.01"
X-Axis Rapid Traverse Rate.......................... 1,574.8 IPM
Y-Axis Rapid Traverse Rate.......................... 1,574.8 IPM
Z-Axis Rapid Traverse Rate.......................... 1,417.3 IPM
Max Spindle Speed.................................... 20,000 RPM
Spindle Taper........................................ CAT 40
Coolant Through Spindle.............................. Yes
Automatic Tool Changer Capacity...................... 30
Electrics............................................ 220/3/60

All specifications are approximate, provided for reference only, and not binding. Buyers are responsible for verifying all details. Inspection prior to purchase is welcome and encouraged.

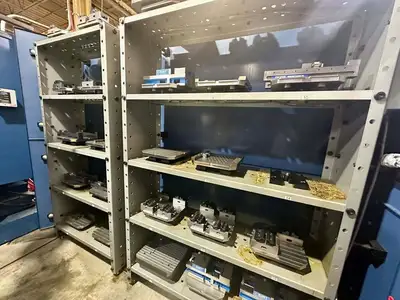

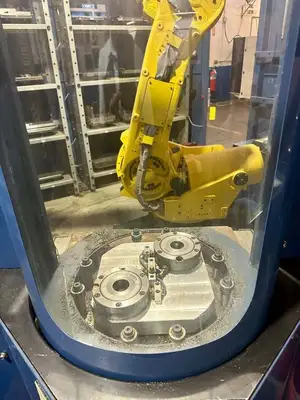

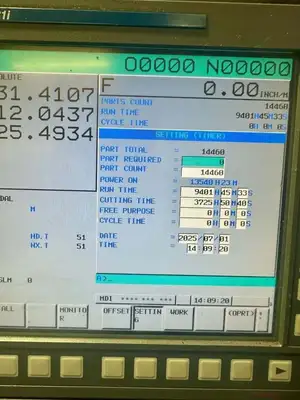

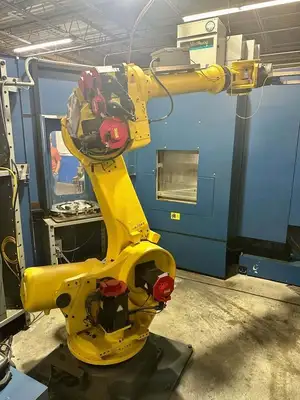

24 Station Pallet Shuttle System w/ Fanuc Robot, Matsuura G-Tech Fanuc 31i CNC Control, 20000 RPM Spindle-Cat 40, Through Spindle Coolant & Flush Coolant, Renishaw Part & Touch Probe, Mist Collector, Spindle Chiller, Coolant System & Chip Conveyor.
