2017 DOOSAN PUMA 2600SY
Have one to sell?
ConditionUsed
1 available

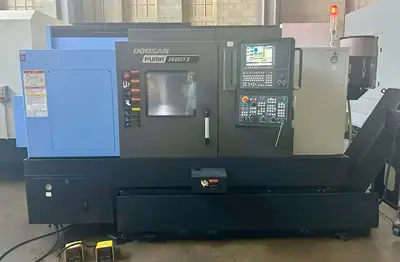

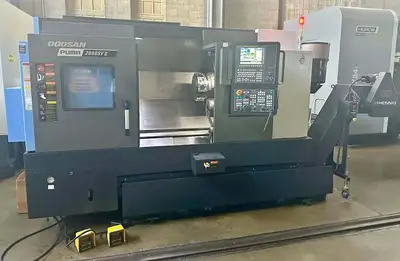

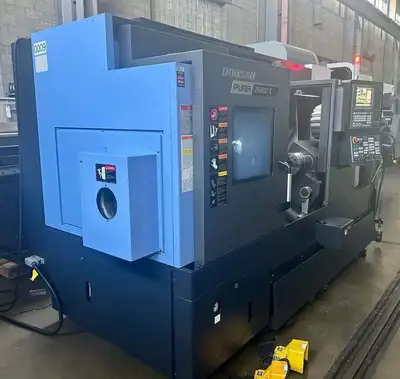

2017 DOOSAN PUMA 2600SYII CNC Lathe for sale: Features Fanuc 31iMA CNC, dual 3-jaw chucks, max 4000/6000 RPM spindles, 3" bar capacity, 12-pos turret with milling, tool setter, and LNS bar feeder.
CNC Control - Fanuc 31iMA CNC
Max Swing Over Bed - 30.7"
Main Spindle Chuck Size - 10"
Max Turning Diameter - 14.8"
Max Turning Length - 29.9"
X-Axis (Cross Travel of Turret) - 10.23"
Z-Axis (Longitudinal Travel of Turret) - 32.67"
Y-Axis (Travel of Turret) - ± 4.13"
C-Axis (Indexing Positions—Main Spindle) - .001°
C2-Axis (Indexing Positions—Sub-Spindle) - .001°
Main Spindle Thru Hole - 3"
Main Spindle Nose - A2-8
Main Spindle Power - 30 HP
Main Spindle Speed Range - 20 - 4,000 RPM
Sub-Spindle Chuck Size - 8"
Sub-Spindle Thru Hole - 3"
Sub-Spindle Nose - A2-8
Sub-Spindle Power - 20 HP
Sub-Spindle Speed Range - 20 - 6,000 RPM
X-Axis Upper Turret Cross Travel Rapid Traverse Rate - 1,181 IPM
Z-Axis Upper Turret Longitudinal Rapid Traverse Rate - 1,181 IPM
Upper Turret Live Tooling Power - 7.5 HP
Upper Turret Live Tooling Speed Range - 20 - 5,000 RPM
Upper Turret Tool Capacity - 12 (All Live) / 24 Half Positions
Tailstock - No

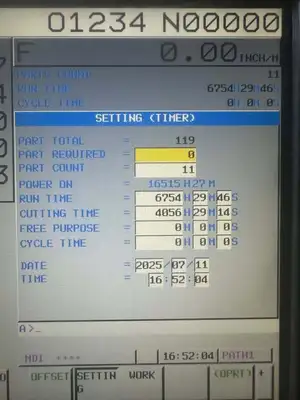

Machine Cutting Hours - 4056
Electrics - 220/3/60
Dimensions - 153" x 74" x 85"
Weight - 14,250 LBS

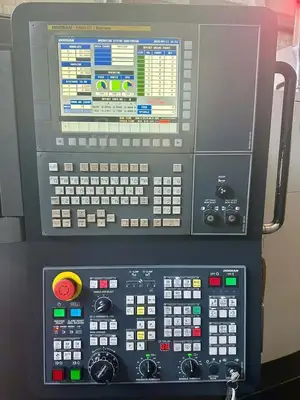

Fanuc 31iMA CNC Control
10.4" Color LCD Screen
USB Port
PC/MCIA Interface

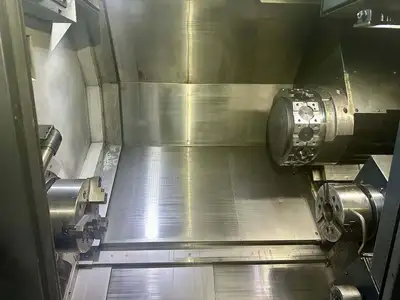

10" 3-Jaw Chuck Main Spindle
8" 3-Jaw Chuck Sub-Spindle with Part Ejector
4000 Max RPM Main Spindle
6000 Max RPM Sub-Spindle
3" Bar Capacity on Main
Part Ejector on Sub

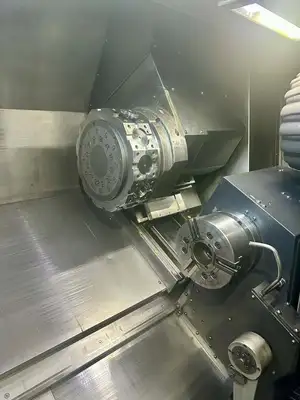

12 Position Turret with Milling (24 Half Positions)
5000 RPM Milling Spindle
10.2" X-Axis Travel
±4.1" Y-Axis Travel
32.6" Z-Axis Travel
1° C-Axis
Tool Setter
Parts Catcher and Conveyor
LNS Quick Load 80 S2 Bar Feeder
Henning Chip Conveyor and Coolant System
