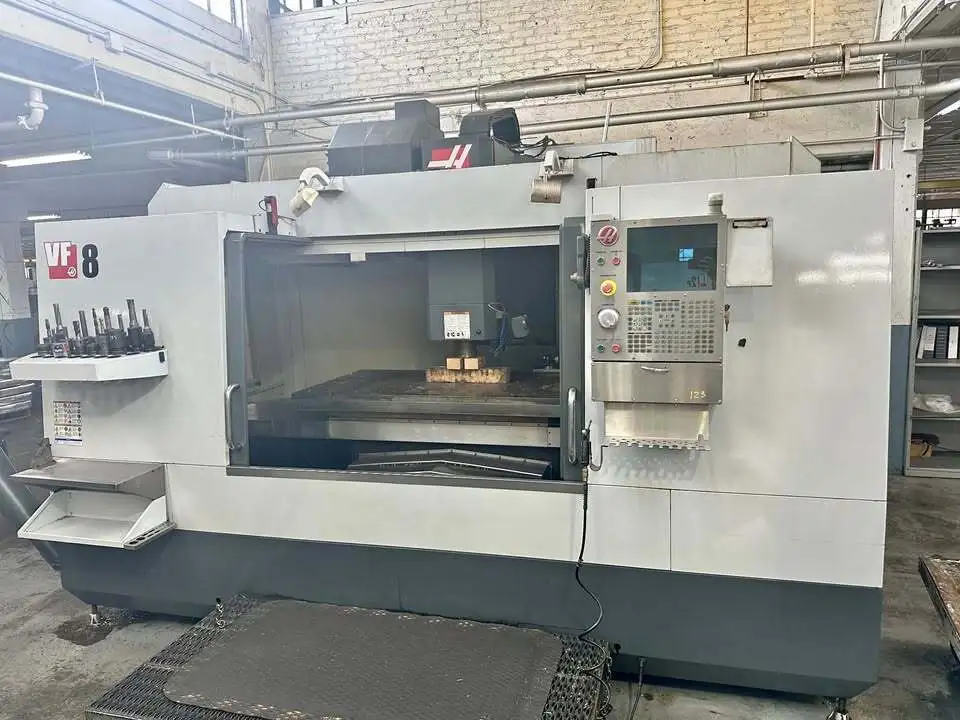

2014 HAAS VF-8/40
Have one to sell?
ConditionUsed
1 available
Used vertical machining center available. Features 64"x36" table, 8100 RPM spindle, CAT 40 taper, 24+1 tool changer, 600 IPM feed rates, and tool touch probe. Includes CNC control, coolant system, chip auger, and tool holders.

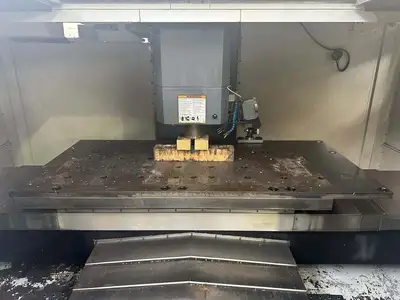

Table (L x W)........................................... 64" x 36"
Max Table Load Capacity................................. 4,000 lb
X-Axis (Longitudinal Travel)............................ 64"
Y-Axis (Cross Travel)................................... 40"
Z-Axis (Vertical Travel)................................ 30"
Max Clearance Tabletop to Spindle Nose.................. 34"
Min Clearance Tabletop to Spindle Nose.................. 4"
Feed Rates (X, Y, & Z Axis)............................. 600 IPM
Rapid Traverse Rate (X, Y, & Z Axis).................... 600 IPM
Spindle Power........................................... 30 HP
Max Spindle Speed....................................... 8,100 RPM
Spindle Taper........................................... CAT 40
Torque, Up To........................................... 90 FT-LBS @ 2000 RPM

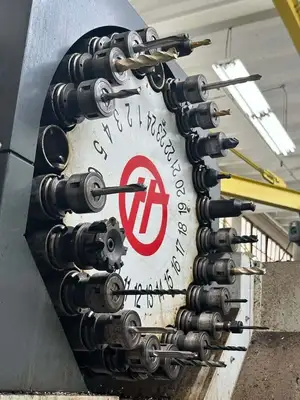

Automatic Tool Changer Capacity......................... 24+1
Automatic Tool Changer Style............................ Side-Mount
Tool Change Time........................................ 2.8 sec.
Electrics............................................... 240/3/60
Dimensions.............................................. 193" x 120" x 130"
Weight.................................................. 24,800 lbs

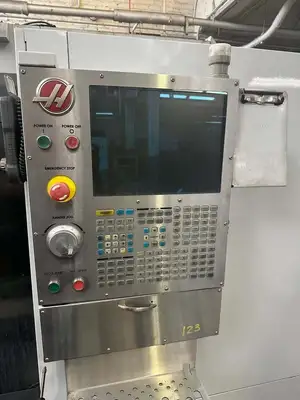

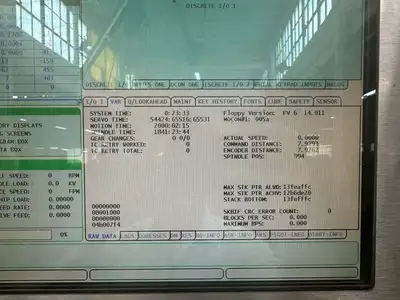

Haas CNC Control, 8100 RPM Spindle, Rigid Tapping, 24+1 Station Tool Changer, Tool Touch Probe, Setup for Part Probe (Probe is broken), Programmable Coolant Nozzle, Chip Auger, Tool Holders Included, Coolant System.
