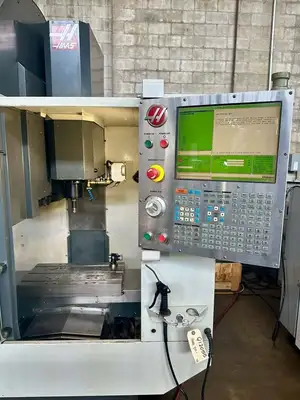

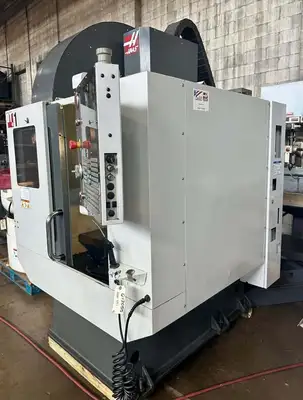

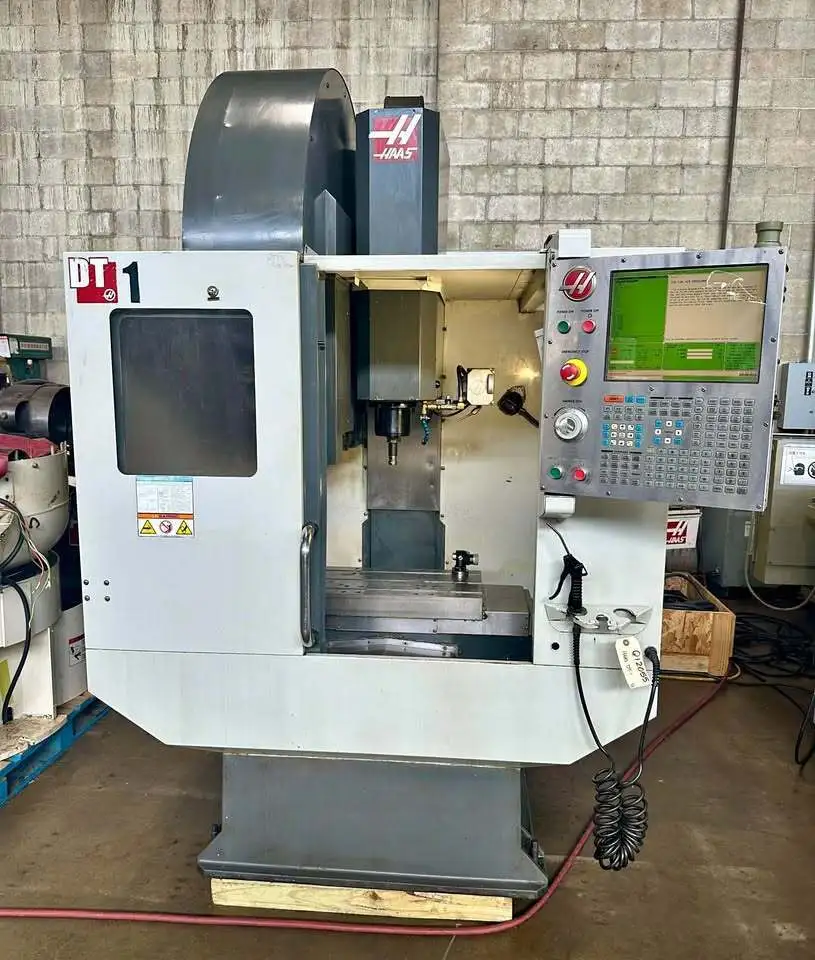

2010 HAAS DT-1

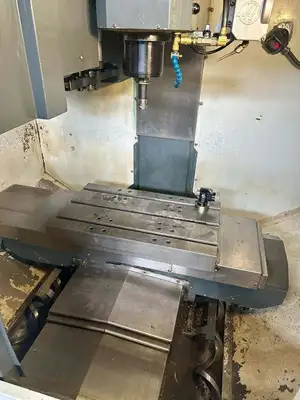

Table (L x W)..................................... 26" x 15"
T-Slot Width...................................... 0.625"
T-Slot Center Distance............................ 4.92"
# T-Slots......................................... 3
Max Table Load Capacity........................... 250 lb
X-Axis (Longitudinal Travel)...................... 20"
Y-Axis (Cross Travel)............................. 16"
Z-Axis (Vertical Travel).......................... 15.5"
Max Clearance Tabletop to Spindle Nose............ 21.5"
Min Clearance Tabletop to Spindle Nose............. 6"
Rapid Traverse Rate (All Axes)................... 2,400 IPM

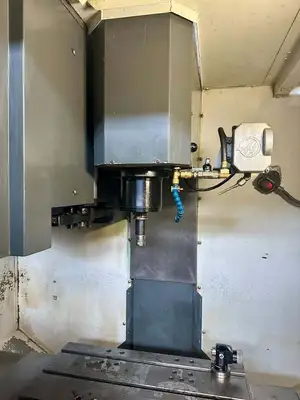

Spindle Power.................................... 15 HP
Max Spindle Speed................................ 15,000 RPM
Spindle Taper.................................... BT30
Torque, Up To.................................... 46 FT-LBS @ 1700 RPM

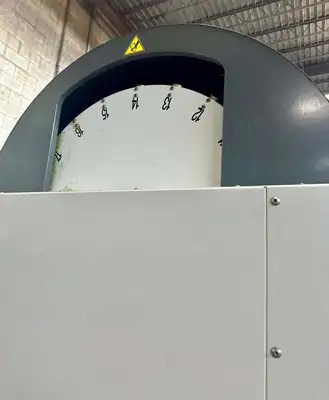

Automatic Tool Changer Capacity.................. 21
Automatic Tool Changer Style..................... Side-Mount
Tool Change Time................................. 0.8 sec.
Electrics........................................ 220/3/60
Dimensions......................................... 68" x 100" x 103"
Weight............................................. 4,200 LBS
