2014 HAAS TM-2P
Have one to sell?
ConditionUsed
1 available

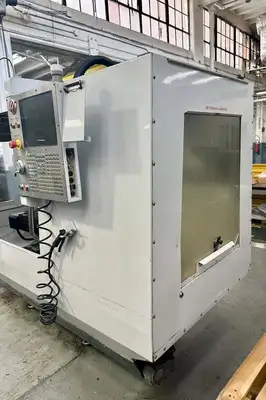

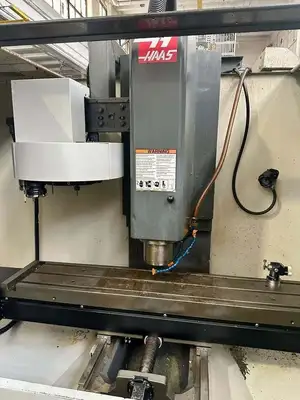

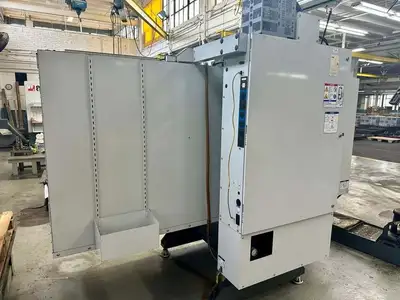

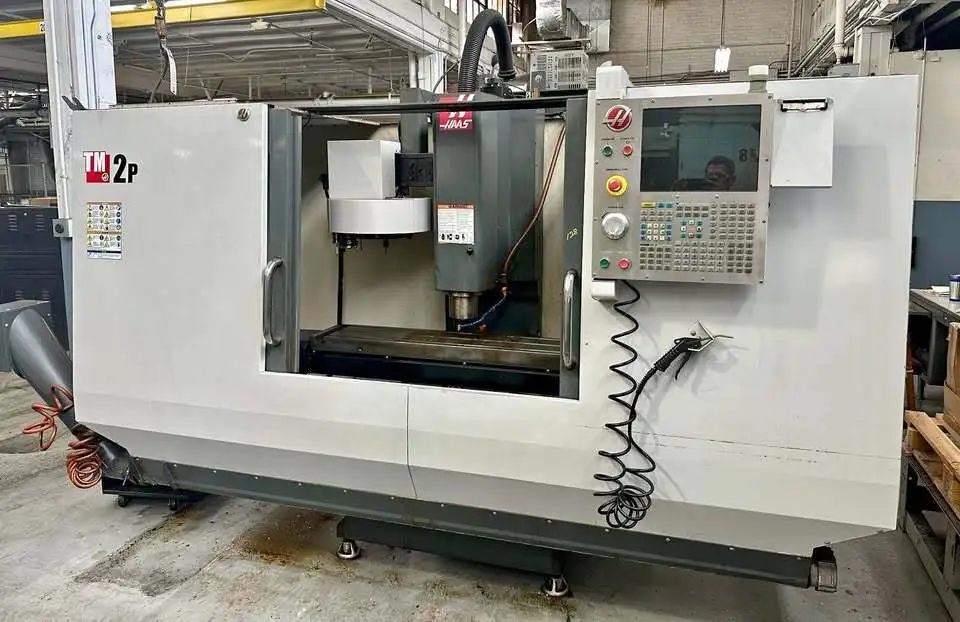

Used Vertical Machining Center: 40"x16"x16" travel, 7.5 HP, 6,000 RPM, 10 ATC, CAT 40 Taper, equipped with Haas CNC, tool & part probe, coolant system.
Max Clearance Tabletop to Spindle Nose.......... 20"
Min Clearance Tabletop to Spindle Nose.......... 4"
Rapid Traverse Rate (All Axes).................. 400 IPM
Spindle Power................................... 7.5 HP
Max Spindle Speed...............................6,000 RPM
Spindle Taper................................... CAT 40
Torque, Up To.......................... ........ 33 FT-LB @ 1200 RPM

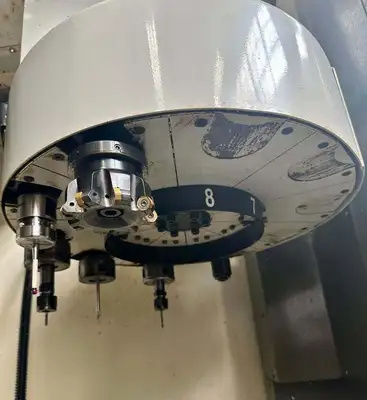

Automatic Tool Changer Capacity................. 10
Automatic Tool Changer Style.................... Carousel
Tool Change Time................................ 5.7 sec.
Electrics....................................... 208-240/3/60
Dimensions...................................... 121" x 87" x 105"
Weight.......................................... 5,060 LBS

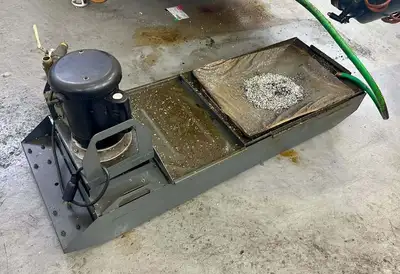

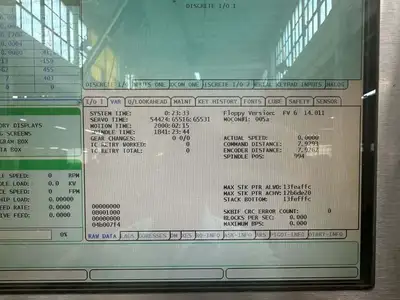

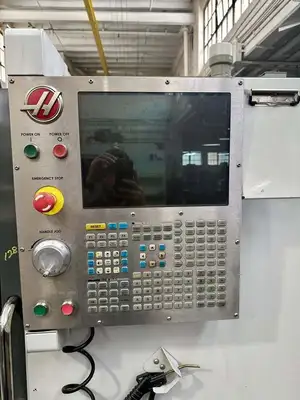

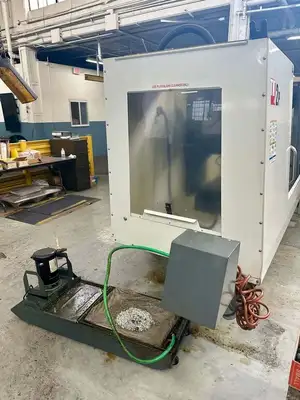

Haas CNC Control with 15" Color LCD Monitor w/ USB Port, 10-Station Automatic Tool Changer, 6000 RPM Spindle, Tool & Part Probe, Coolant Nozzle, Coolant System with Tank & Pump.
