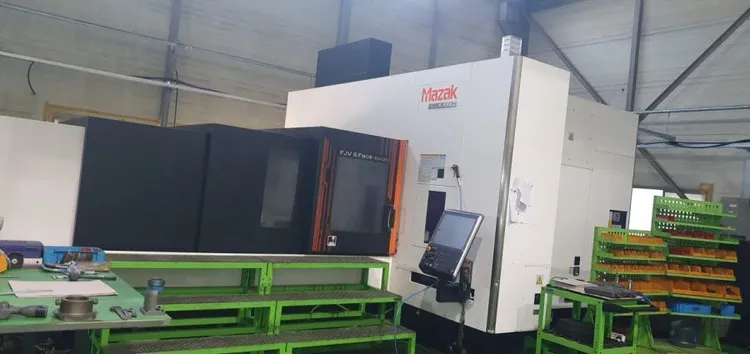

2018 MAZAK FJV 5 FACE-60/120
Have one to sell?
ConditionUsed
1 available
Max Table Load Capacity - 11,023 lb
Product Distance From Table Top Spindle Nose - 6.3" - 32.38"
X Axis Travel - 125.98"
Y Axis Travel - 55.12"
Z Axis Travel - 25.98"
Main Spindle RPM - 10,000 RPM
Rapid Traverse Rate X - 1260 IPM
Rapid Traverse Rate Y - 1575 IPM
Rapid Traverse Rate Z - 1181 IPM

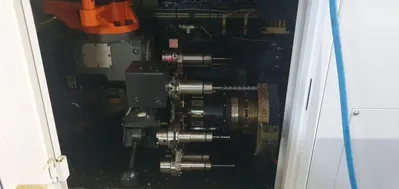

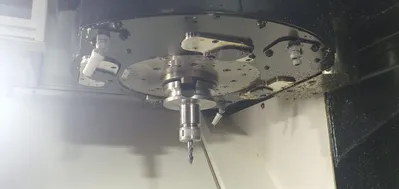

Number of Tool Stations - 30 ATC
Maximum Tool Diameter - 4.92"
Max Tool Dia Adjacent Pocket Empty - 8.27"
Maximum Tool Length - 14.96"
Maximum Tool Weight - 44 lb
Spindle Taper - BT50
Main Spindle HP - 50/40 HP
Chip Conveyor
Coolant Thru Spindle
Prep for Renishaw OMP60 Probe
ATLM

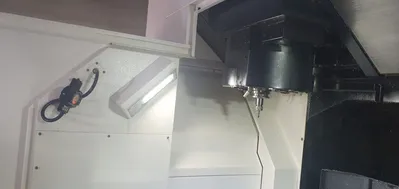

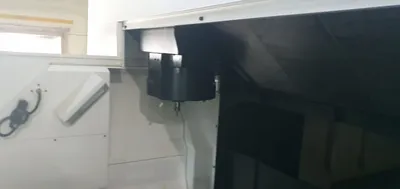

5-Face Head
