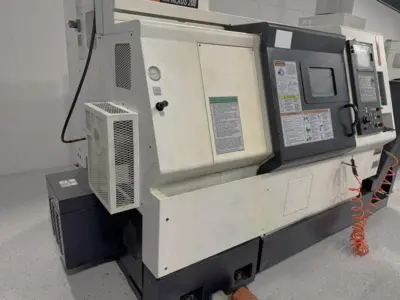

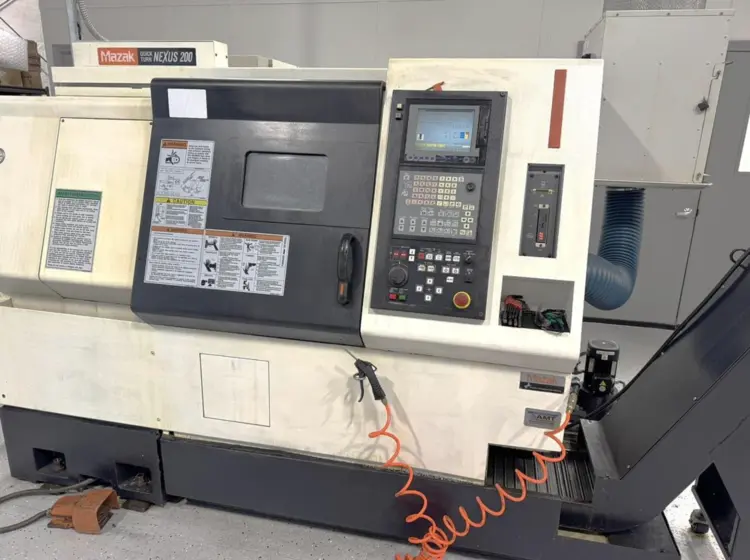

2003 MAZAK QUICK TURN NEXUS 200
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe with Mazatrol Fusion 640T control, 8" 3-jaw hydraulic chuck, 35HP, and 5000 RPM. Equipped with chip conveyor, automatic tool eye, and high-pressure coolant pump. Specifications: 24" swing, 2" bar capacity.
Chuck Size 8" 3-Jaw Hydraulic
Maximum Swing 24"
Maximum Cutting Diameter 14"
Maximum Machining Length 20.1"
X-Axis Travel 7.5"
Z-Axis Travel 21.125"
Spindle Nose / Bore / Bar Capacity A2-6" / 3.0" / 2.00"
Spindle Speeds 5,000 RPM
Spindle Motor 35 HP

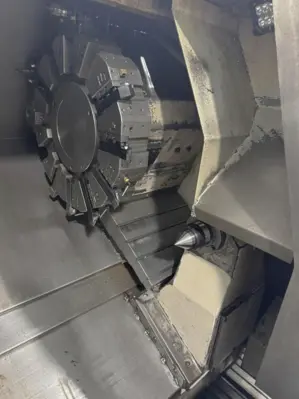

Number of Turret Positions 12 Position Drum
Rapid Traverse Rates X/Z 1181 / 1299 IPM
Tailstock Body Travel / Center 21.75" / MT#5

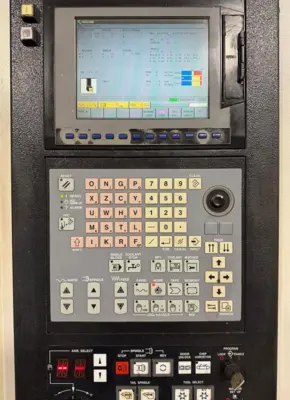

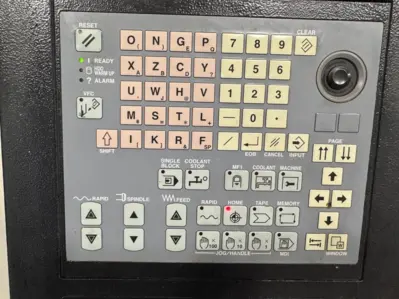

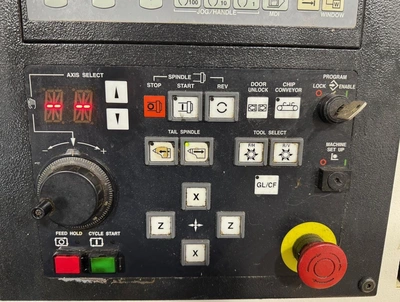

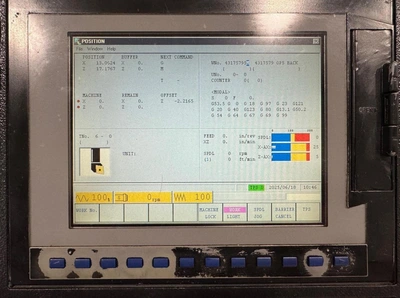

Control Mazatrol Fusion 640T

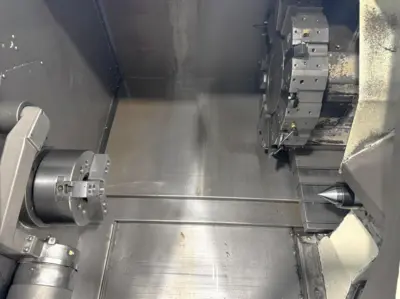

8" 3 Jaw Hydraulic Chuck

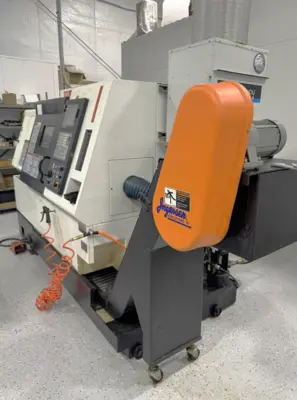

Chip Conveyor
Automatic Tool Eye
Programmable Tailstock

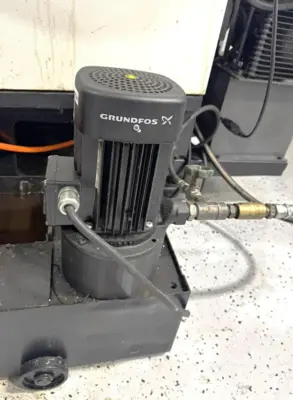

Upgraded Grundfos High Pressure/Volume Coolant Pump

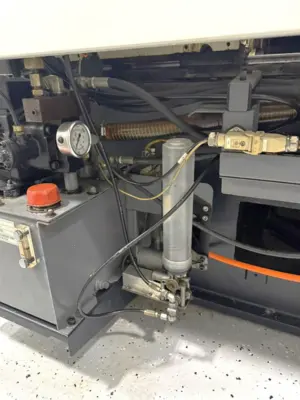

Upgraded Grease Cartridge System Installed Versus Hand Filled Type
IC Memory Card Interface
USB Port Conversion Kit Installed
3.5" Floppy Disk Interface
RS232 Port Interface

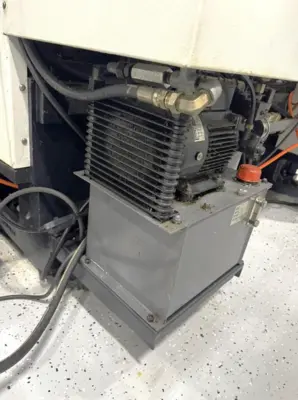

Hydraulic Pressure Interlock
Chuck Open/Close Confirmation
Door Interlock
Tool Path Solid Model

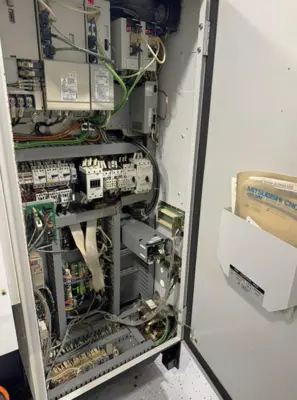

Multi-Tap Transformer Currently Wired 208V
Coolant Tank with Pump
All Available Manuals
All Available Tooling
