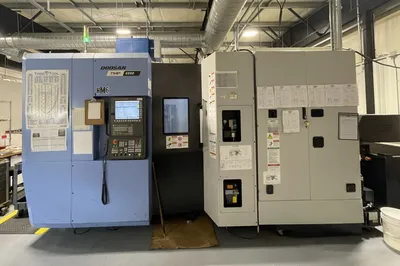

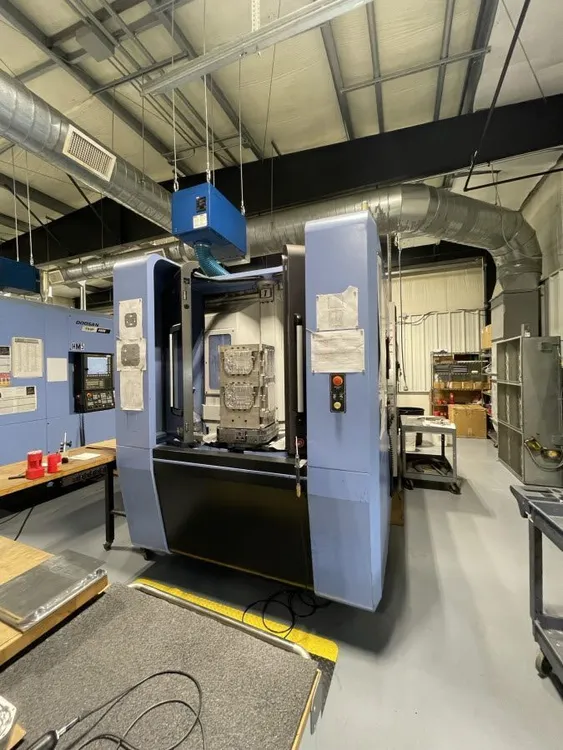

2017 DOOSAN NHP 4000
Have one to sell?
ConditionUsed
1 available
Elevate your machining capabilities with a used 2017 Doosan NHP 4000 Horizontal Machining Center. Equipped with Fanuc control, 60-tool ATC, and 15,000 RPM spindle.
Pallet Size: 15.7" x 15.7”
Pallet Indexing: .001 Full Contouring
Maximum Table Capacity: 882 lb
Maximum Workpiece Size: 24.8" x 35.4" (H)
X Axis Travel: 22"
Y Axis Travel: 25.2"
Z Axis Travel: 26"
X Axis Rapid Traverse: 2,362 ipm
Y Axis Rapid Traverse: 2,362 ipm
Z Axis Rapid Traverse: 2,362 ipm
Cutting Feedrate: 0 - 60,000 mm/mi
Number of Tools : 60 ATC
Spindle Taper: CAT40 Big Plus
Spindle Power: 40 hp
Spindle RPM: 15,000 RPM
Dimensions: 194” x 91” x 105.9"
Weight: 21,385 lb

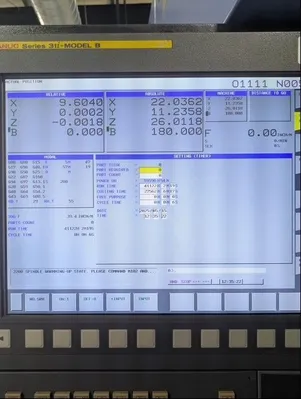

Fanuc Series 31i-Model B CNC Control
40HP Direct Drive Big Plus/CAT 40 Spindle (15,000 rpm)
B-axis (full 4th axis)
60 Tool ATC
Chip conveyor
Spindle Chiller
USB Port and PCMCIA Port at Control
Way-lube Skimmer.
3 Color Signal Light
Thru-spindle Coolant
