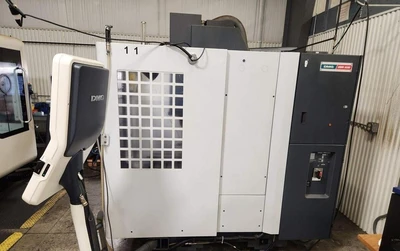

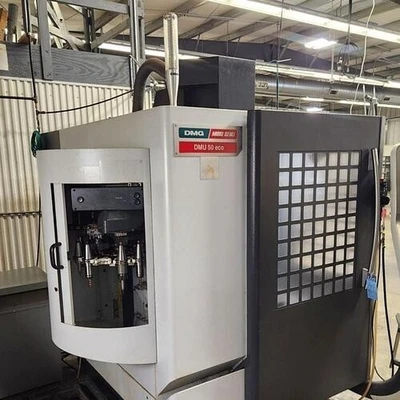

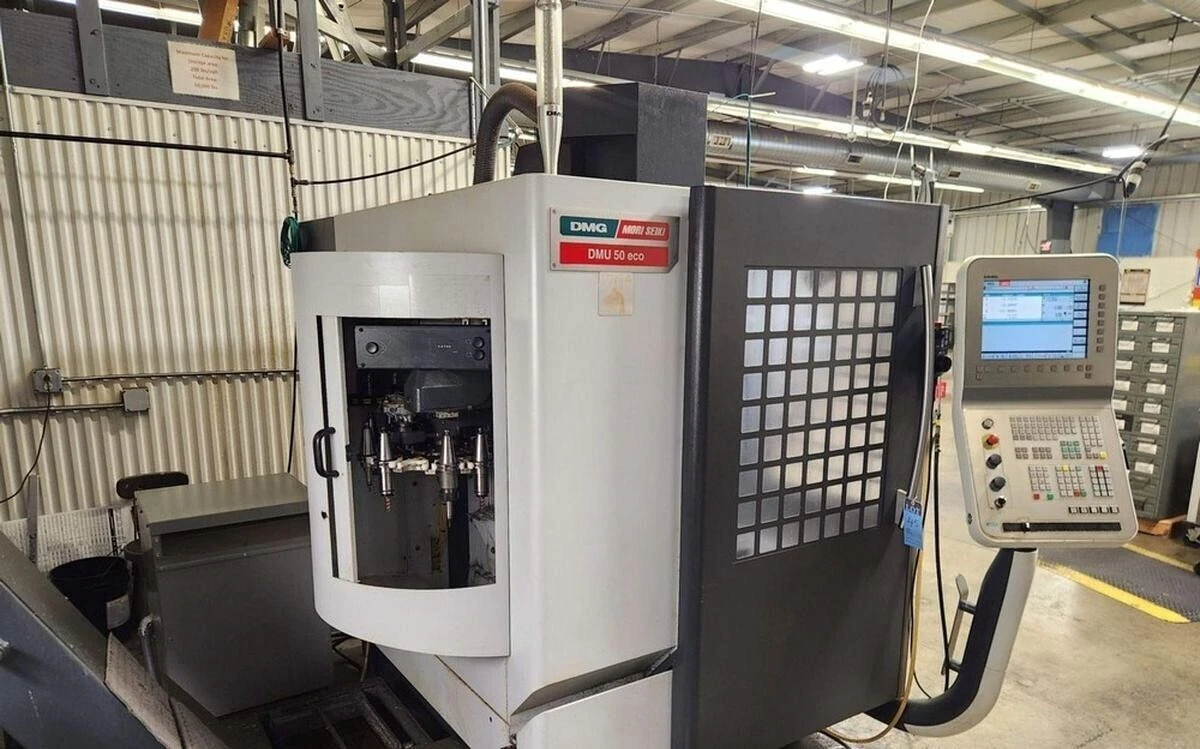

2011 DMG MORI SEIKI DMU 50 ECOLINE
Have one to sell?
ConditionUsed
1 available
Used Vertical machining center with Siemens Sinumerik 5-axis CNC control. Key features include 8000 RPM spindle, 17.5 HP motor, swiveling rotary table, tool changer, and chip conveyor.
Table Dimensions, L x W 24.8" x 19.7"
Table Load Capacity 440 LBS
Longitudinal Travel (X-Axis) 19.7"
Cross Travel (Y-Axis) 17.7"
Vertical Travel (Z-Axis) 15.7"
Table Tilt Range (B-Axis) -5 to 110-DEGREES
Table Rotation (C-Axis) 360-DEGREES
Spindle Nose to Table 31"
Spindle Taper CAT 40

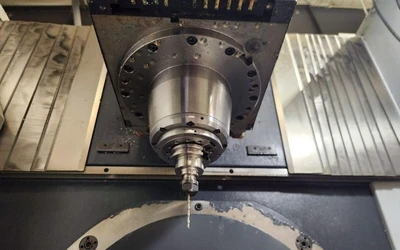

Spindle Speeds, Range 0 to 8000 RPM
Power Rapid Traverse, X, Y, Z-Axis' 472 IPM
Spindle Motor, Horsepower Rating 17.5 HP
Weight Approximately 8800 LBS

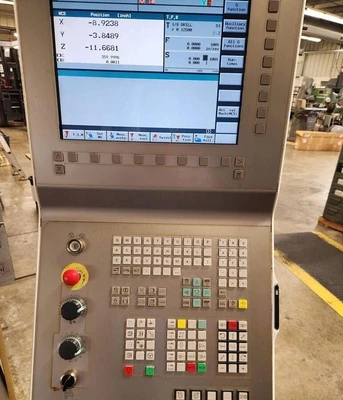

Siemens Sinumerik "810D" 5-Axis CNC Control

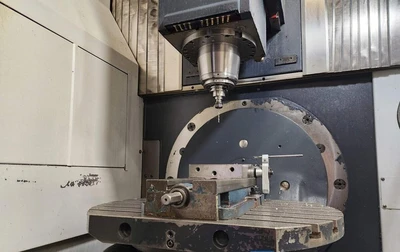

24.7" x 19.7" Swiveling Rotary Table w/Digital Drives

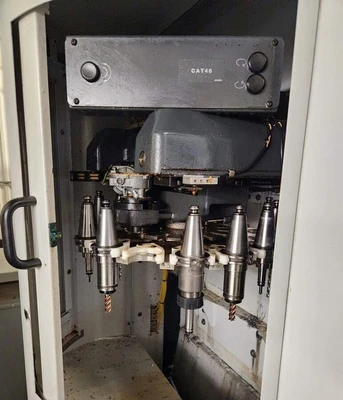

16-Position Side-Mounted Tool Changer
8000 RPM Spindle Speed

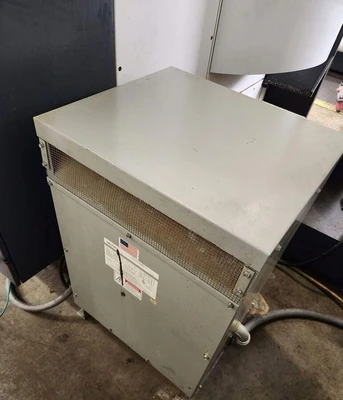

Federal Pacific Transformer

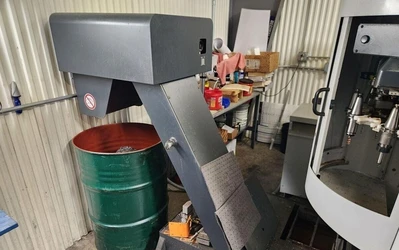

Chip Conveyor
