2015 MAZAK QUICK TURN UNIVERSAL 250 (2 AVAILABLE)
Have one to sell?
ConditionUsed
1 available

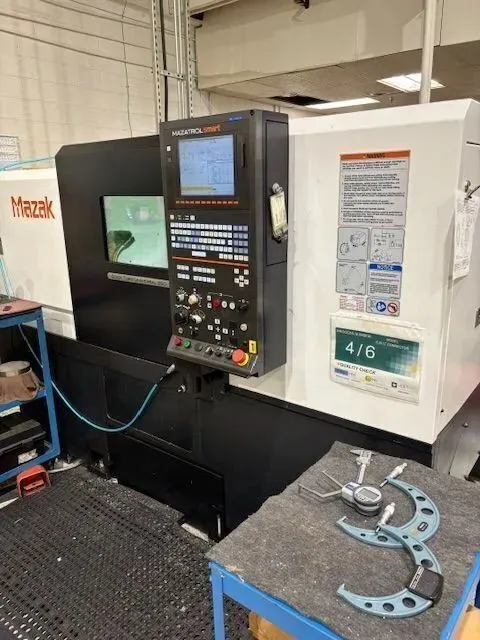

2015 MAZAK QUICK TURN UNIVERSAL 250 CNC Lathe, 2-axis, 27.4" swing, 22.08" machining length. Equipped with MAZATROL SMART CNC, 8" chuck, 20 hp, 4,500 RPM, programmable tailstock. Includes tool holders, manuals, and Kitagawa hydraulic chuck.
Swing Over Bed - 27.4"
Machining Length - 18.83"
Distance Between Centers - 22.08"
Chuck Size 1 - 8"
Spindle Nose 1 - A2 - 6
Turning Diameter, Shaft Diameter - 16.25"
Spindle Speeds 1 - 4,500 RPM
Spindle Horsepower 1 - 20 hp
X1 - Axis Travel - 8.5"
Z1 - Axis Travel - 25"
Rapid Traverse Rate - X1 - 1,181 in/min.
Rapid Traverse Rate - Z1 - 1,181 in/min.
Turret Configuration 1 - 12
Tailstock Taper # 5
Programmable Tailstock - YES
Tailstock Travel - 14.17"
# Axis - 2
Bar Capacity - 2"
Tailstock - 'Yes'
Live Tooling - 'No'
Sub Spindle - 'No'
Control CNC (MAZAK MAZATROL SMART CNC COLOR CONTROL)
Weight - 11,000

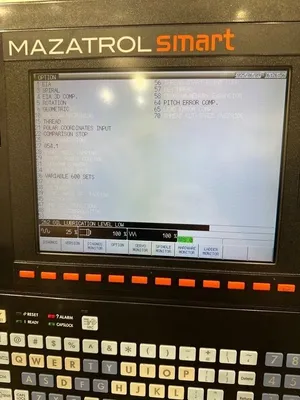

MAZATROL SMART CNC CONVERSATIONAL CONTROL
AUTOMATIC TOOL EYE
PROGRAMMABLE TAILSTOCK W/ CENTER
ALL AVAILABLE MANUALS
AVAILABLE TOOL HOLDERS

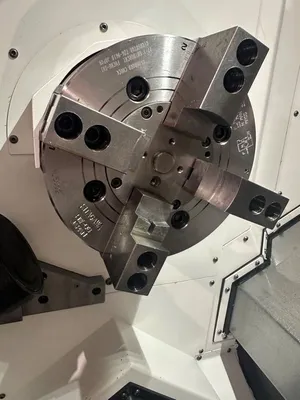

KITAGAWA 8" 4 JAW HYDRAULIC CHUCK WITH (1)SET OF HARD JAWS, 1 SET OF SOFT JAWS USED.

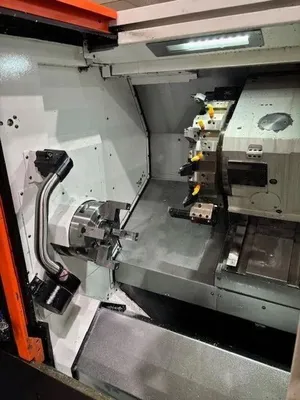

ALL TOOL BLOCK HOLDERS AND WEDGE BLOCK PICTURED AT INSPECTION TODAY
EIA, SPIRAL, ROTATION, GEOMETRIC
THREAD, POLAR COORDINATE INPUT
EIA 3D COMP, COMPARISON STOP, G54.1
VARIABLE 600 SETS
PITCH ERROR COMP.

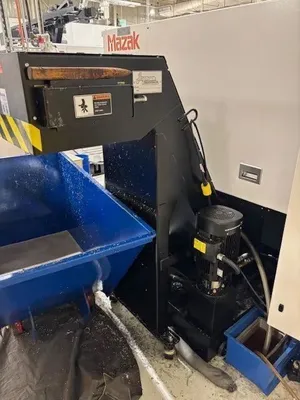

CHIP CONVEYOR
