2018 DMC DL 30L
Have one to sell?
ConditionUsed
1 available

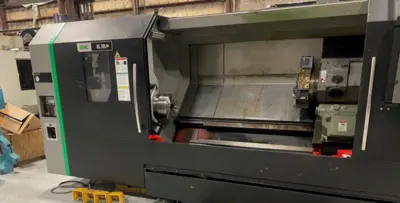

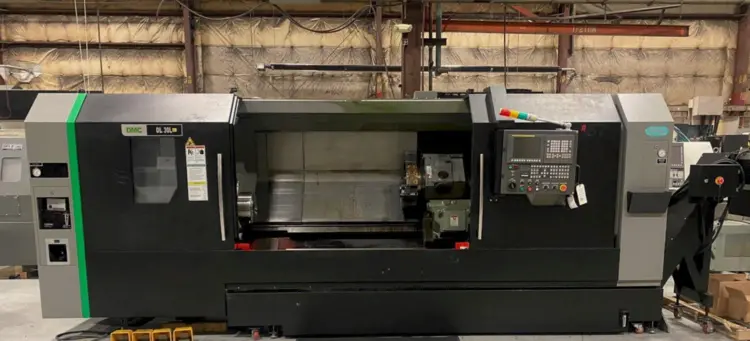

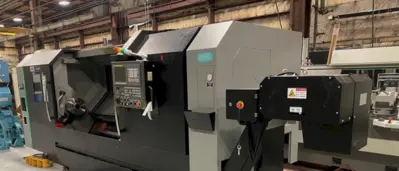

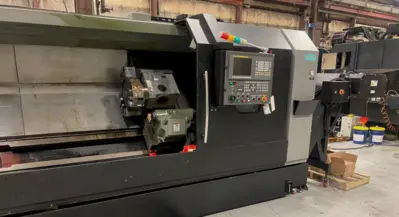

CNC Lathe in used condition. Features 25 hp, 3,000 RPM, 12" chuck, and 3.54" bar capacity. Equipped with Fanuc 0i-TF control, tool presetter, 12-station turret, tailstock, chip conveyor, and more. Dimensions: 210" x 74" x 86".
Swing 24.02"
Turning Diameter 15.75"
Center Distance 83.86"
Chuck Size 12"
Bar Capacity 3.54"
X Axis Travel 9.06"
Z Axis Travel 83.86"
Rapid Traverse (X/Z) 787/708 ipm
Spindle Nose A2-8
Spindle Speed 3,000 rpm
Main Motor 25 hp
Turret Capacity 12
Machine Dimensions
210" (L-R) x 74" (F-B) x 86 (H)
Machine Weight
19,000 pounds

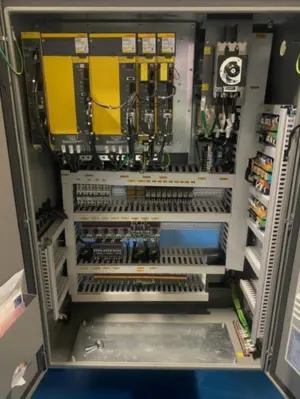

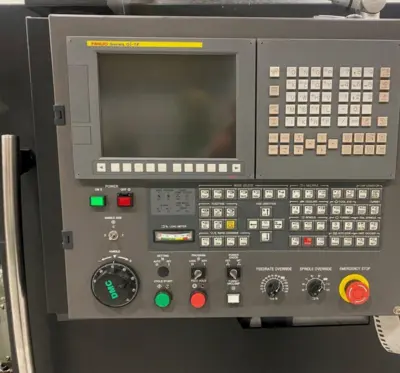

- Fanuc 0i-TF CNC Control
- Tool Presetter
- Tailstock

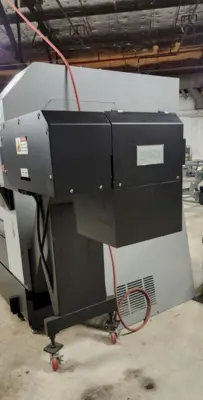

- Chip Conveyor
- Coolant Tank & Pump

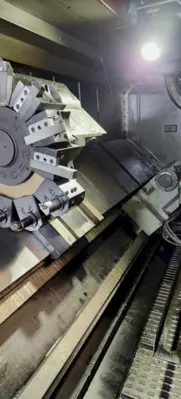

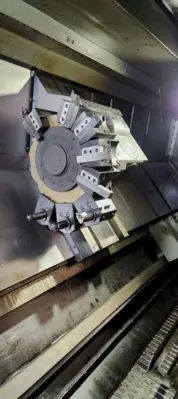

- BMT 65 Turret - 12 Stations

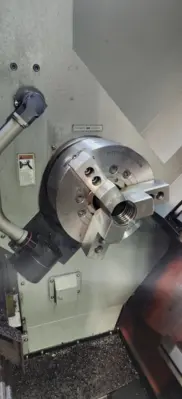

- Samchully HS-12 Hydraulic Chuck
