2019 HAAS DM-1
Have one to sell?
ConditionUsed
1 available

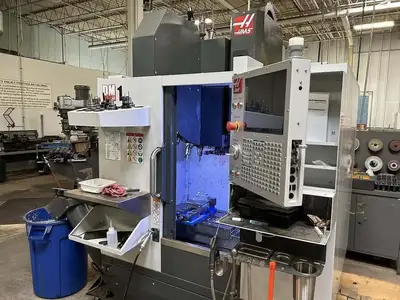

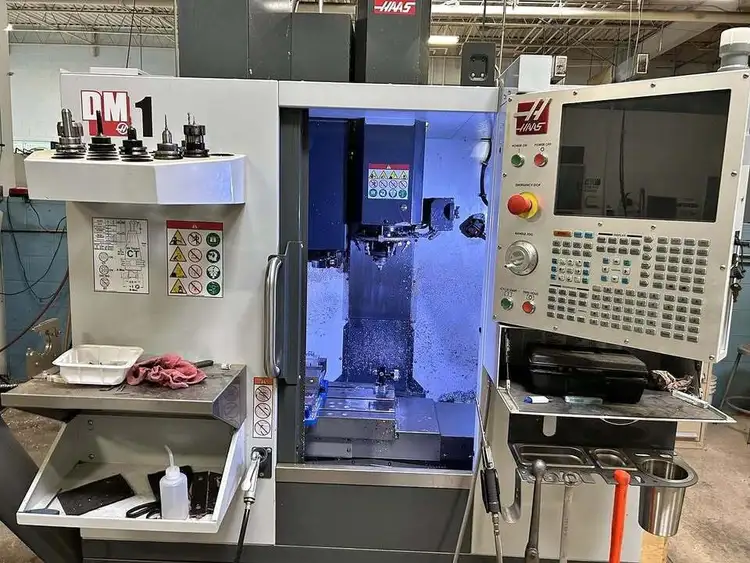

Used Vertical Machining Center: 15 hp, 10,000 RPM, CAT 40 taper, 18+1 ATC, Renishaw Part Probe, Tool Setter, 5,717 cutting hours, lift-up chip auger, and 1 Kurt vise. Table 26"x15", X/Y/Z travel: 20"/16"/15.5". Approx. weight: 5,150 lbs.
Distance From Spindle Nose To Table Top 21.5"
Spindle Motor 15 HP
Spindle Speed 10,000 RPM Inline Direct Drive
Spindle Taper CT#40
Table Size 26" x 15"
Table Weight Capacity 500 lbs
Rapid Travese Rate X, Y & Z 2,400 IPPM
Tool Changer Capcity 18+1 ATC
Max Tapping Speed 5,000 RPM
Approx. Machine Weight 5,150 lbs

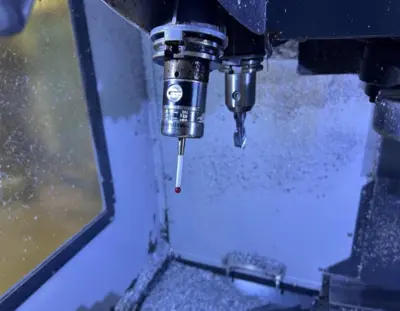

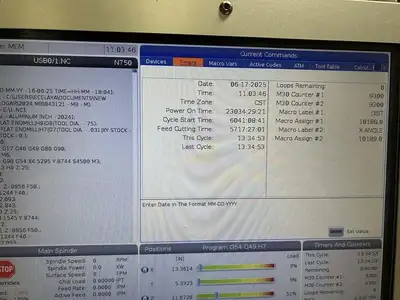

Haas CNC Control, Renishaw Part Probe, Tool Setter, 300 PSI CTS, 5,717 Cutting Hours, Lift Up Chip Auger, 1 Kurt Vise
