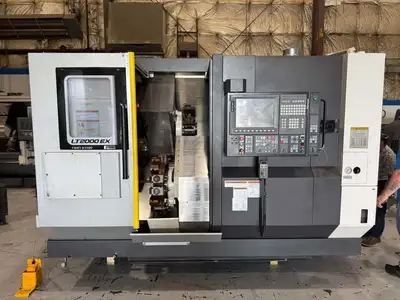

2017 OKUMA TWIN STAR LT2000 EX
Have one to sell?
ConditionUsed
1 available
2017 OKUMA TWIN STAR LT2000 EX Multi-Axis CNC Lathe, used, features twin spindles, twin turrets, tool presetter, synchronized tapping, live tooling, and more. 6,000 rpm spindle speed and high pressure coolant.
Swing: 15.75 in
Turning Diameter: 8.28 in
Center Distance: 38.58 in
Chuck Size: 8 in
Bar Capacity: 2.04 in
X Axis Travel: 8.07 in
X2 Axis Travel: 8.07 in
Y Axis Travel: 3.74 in
Z Axis Travel: 27.56 in
B Axis Travel (Sub Spindle): 28.74 in
C Axis Index: 0.001°
Rapid Traverse (X/Y/Z): 1181/591/1575 ipm
Spindle Nose: A2-6
Spindle Speed: 6,000 rpm
Main Motor: 15 hp
Tailstock: yes
Y Axis: yes
Live Tooling: yes
Live Tooling Speed: 6,000 rpm
Live Tooling Motor:7.5 hp
Sub Spindle: yes
Sub Spindle Chuck: 6 in
Sub Spindle Nose: A2-6
Sub Spindle Speed: 6,000 rpm
Sub Spindle Motor (HP): 15 hp
Turret Capacity (Upper/Lower): 16 Stations / 16 Stations
Machine Dimensions: 135" x 98" x 94"
Machine Weight: 19800 lb

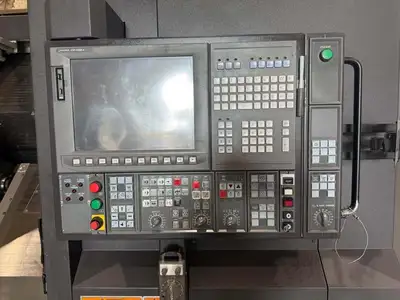

- Okuma OSP-P300LA CNC Control

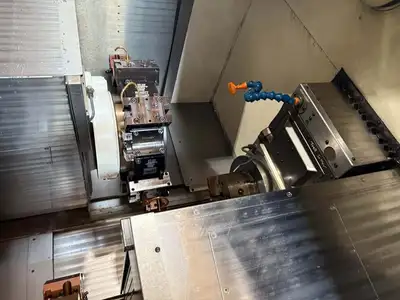

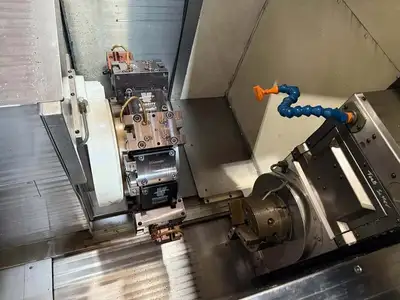

- Twin Spindles/Twin Turrets
- Tool Presetter
- Sub Spindle Touch Setter
- Y Axis on Upper Turret
- Synchronized Tapping
- 8" Chuck (Main) | 6" Chuck (Sub)
- Live Tooling (Both Turrets)
- (3) Live Holders
- Misc Static Holders
- Parts Catcher
- Bar Feeder Interface
- Transformer
- High Pressure Coolant

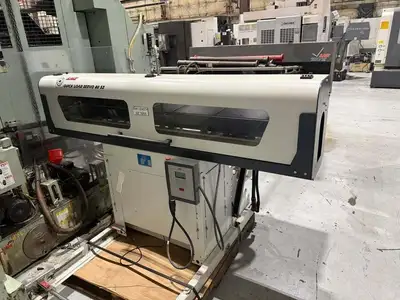

- LNS Barfeed
- Chip Conveyor
- Coolant Tank & Pumps in
