1995 TSUGAMI FMA3
Have one to sell?
ConditionUsed
1 available

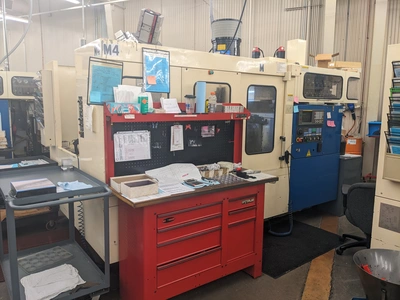

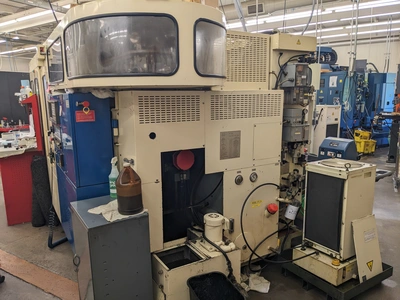

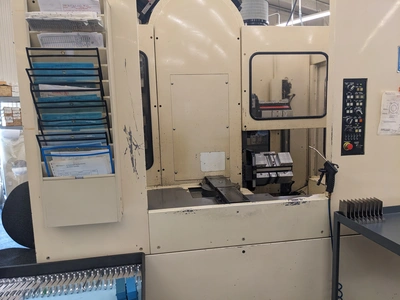

The Tsugami FMA3-I Precision CNC Milling Center is a top-of-the-line horizontal milling machine with 10 hp of spindle horsepower and a BT40 spindle taper. This electric-powered machine has a 12" table length and width, with a Z-axis travel bed of 15.75" and an X-axis travel bed of 14.1". Its 62-tool capacity and 11 pallets make it ideal for precision milling tasks, with a maximum spindle speed of 1000 RPM. This reliable CNC-controlled machine was manufactured in Japan in 1995 and operates at 208 volts, making it a valuable addition to any metalworking operation.
Specifications:
Pallet Size...............11.75" X 11.75"
Max Workpiece Weight......176 lbs
Maximum Workpiece Size....11.81" x 11.81" x 14.17"
X-Axis Travel.............14.17"
Y-Axis Travel.............13"
Z-Axis Travel.............15.74"
Spindle Motor.............10 HP
Spindle Taper.............BT-40
Spindle Speed.............10,000 RPM
Rapid Traverse Rates......945 IPM
Feed Rates................236 IPM
Tool Changer..............62
Tool Change Time..........1 Second
Tool Change Chip Time.....5 Seconds
Dimensions................159 x 98 x 108
Weight....................23,148

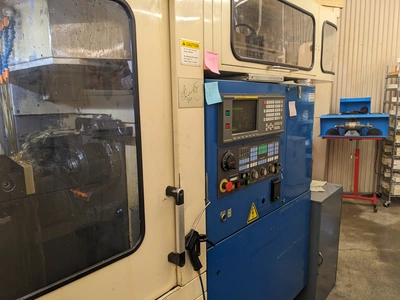

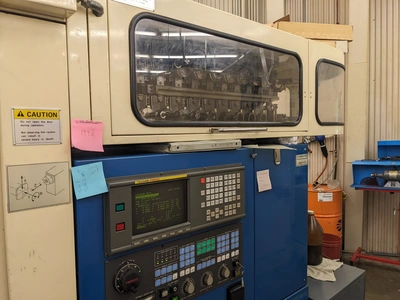

Fanuc CNC Control
10,000 RPM Spindle

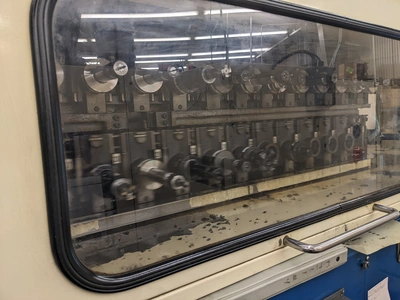

62 Station ATC
11 Station Pallet Pool
Auto Part Gauging
Tool Breakage Detection
Chip Conveyor
