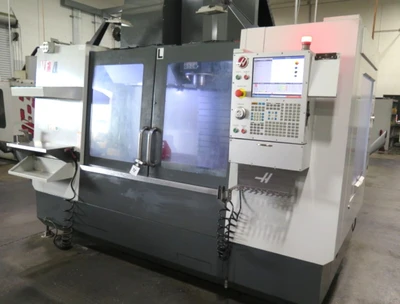

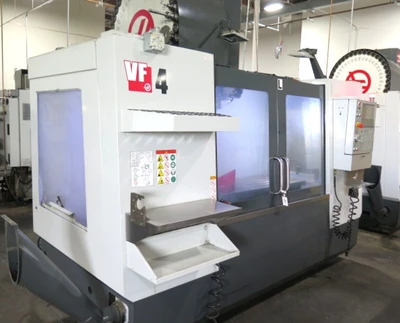

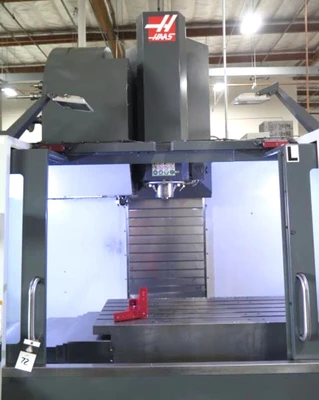

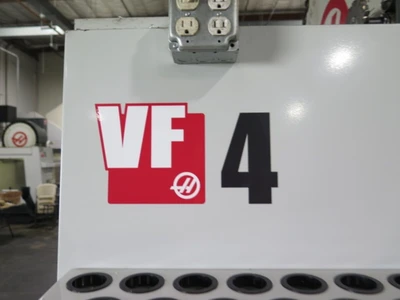

2018 HAAS VF-4
Have one to sell?
ConditionUsed
1 available

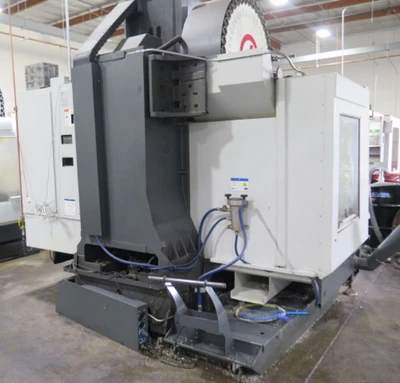

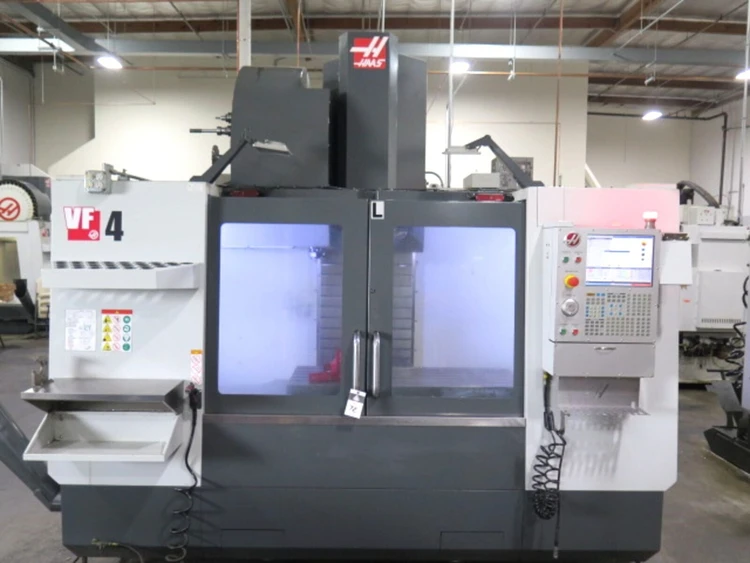

Used Vertical Machining Center, offering 10,000 RPM CT40 spindle, 40-position ATC, 4th axis drive, and high-speed machining. Features include programmable coolant nozzle, chip auger, 1GB memory, ethernet, and more.
Spindle Nose to Table (- max.) 29"
Spindle Nose to Table (- min.) 4"

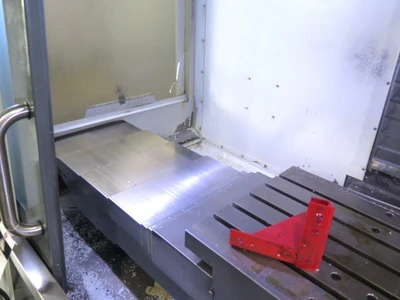

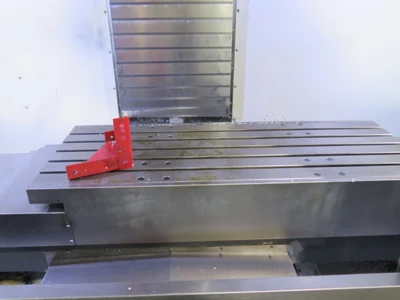

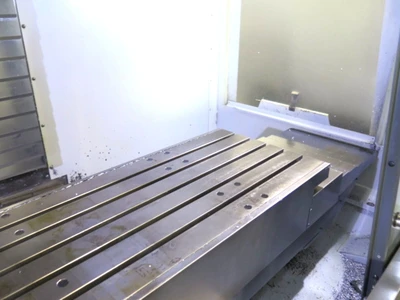

Table:
Length 52"
Width 18"
T-Slot Width 5/8"
T-Slot Center Distance 3.15"
Number of Std T-Slots 5
Max. Weight on Table (Evenly distributed) 3500 lbs.

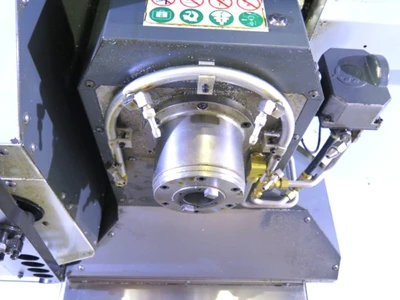

Spindle:
Max Rating 30 HP
Max. Speed 10,000 RPM
Geared Drive
Taper CT40
Feedrates:
Rapids on X 1000 in/min
Rapids on Y 1000 in/min
Rapids on Z 1000 in/min
Max. Cutting 650 in/min
Axis Motors:
Max. Thrust X 2,550 lb
Max. Thrust Y 2,550 lb
Max. Thrust Z 4,200 lb

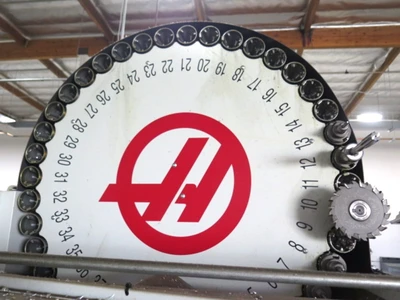

Tool Changer:
Side Mount
Capacity 40
Max. Tool Diameter (Full) 3.5"
Max. Tool Weight 12 lb
Tool-to-tool (avg) 4.2 sec
Chip-to-chip (avg) 4.5 sec
General:
Air required 4 SCFM,100 PSI
Coolant capacity 55 Gal
10,000 RPM CT40 Spindle, Geared Drive
40 Position ATC side mounted
4th axis drive and wiring (rotary table not included)

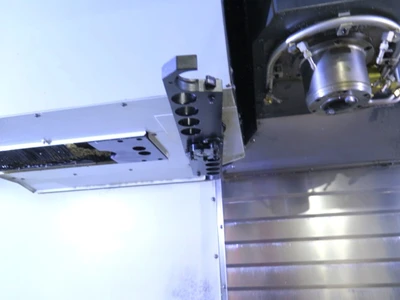

Programmable Coolant nozzle
Rigid Tapping

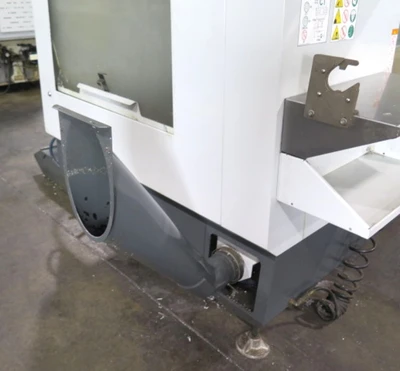

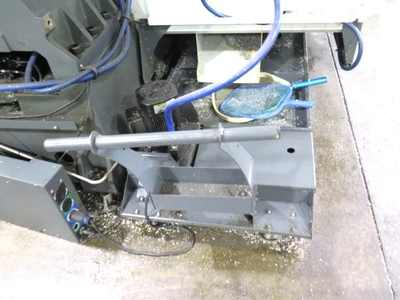

Chip auger
1 GB memory
ethernet
Haas connect
High intensity lighting
High speed machining
window blast
