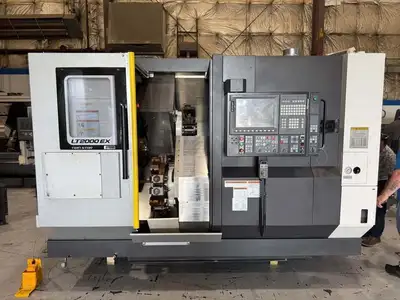

2017 OKUMA LT2000 EX MY
Have one to sell?
ConditionUsed
1 available
Used CNC Lathe for sale. Features a 15.75" swing, 38.98" machining length, and 15 hp power. Comes with Okuma OSP-P300LA Control, twin spindles/turrets, live tooling, parts catcher, and more.
Swing 15.75 in 400.05 mm
Turning Diameter 8.28 in 210.31 mm
Center Distance 38.58 in 979.93 mm
Chuck Size 8 in 203.20 mm
Bar Capacity 2.04 in 51.82 mm
X Axis Travel 8.07 in 204.98 mm
X2 Axis Travel 8.07 in 204.98 mm
Y Axis Travel 3.74 in 95.00 mm
Z Axis Travel 27.56 in 700.02 mm
B Axis Travel (Sub Spindle) 28.74 in 730.00 mm
C Axis Index 0.001° 0.001°
Rapid Traverse (X/Y/Z) 1181/591/1575 ipm
1181/591/1575 ipm
Spindle Nose A2-6
Spindle Speed 6,000 rpm
Main Motor 15 hp
Tailstock
Y Axis
Live Tooling
Live Tooling Speed 6,000 rpm
Live Tooling Motor 7.5 hp
Sub Spindle
Sub Spindle Chuck 6 in 152.40 mm
Sub Spindle Nose A2-6
Sub Spindle Speed 6,000 rpm
Sub Spindle Motor (HP) 15 hp
Turret Capacity (Upper/Lower) 16 Stations / 16 Stations
Machine Dimensions
135" x 98" x 94"
Machine Weight
19800 lb 8,981.12 kg

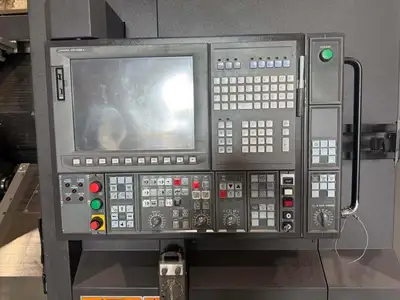

- Okuma OSP-P300LA CNC Control
- Twin Spindles/Twin Turrets
- Tool Presetter
- Sub Spindle Touch Setter
- Y Axis on Upper Turret
- Synchronized Tapping
- 8" Chuck (Main) | 6" Chuck (Sub)
- Live Tooling (Both Turrets)
- (3) Live Holders
- Misc Static Holders
- Parts Catcher
- Bar Feeder Interface
- Transformer
- High Pressure Coolant

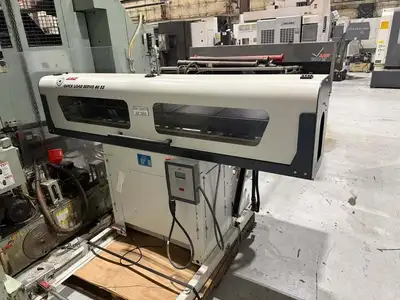

- LNS Barfeed
- Chip Conveyor
- Coolant Tank & Pumps in
