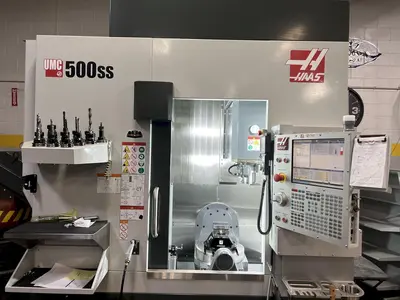

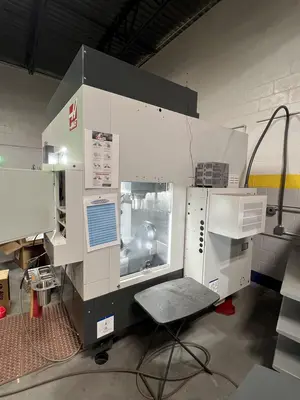

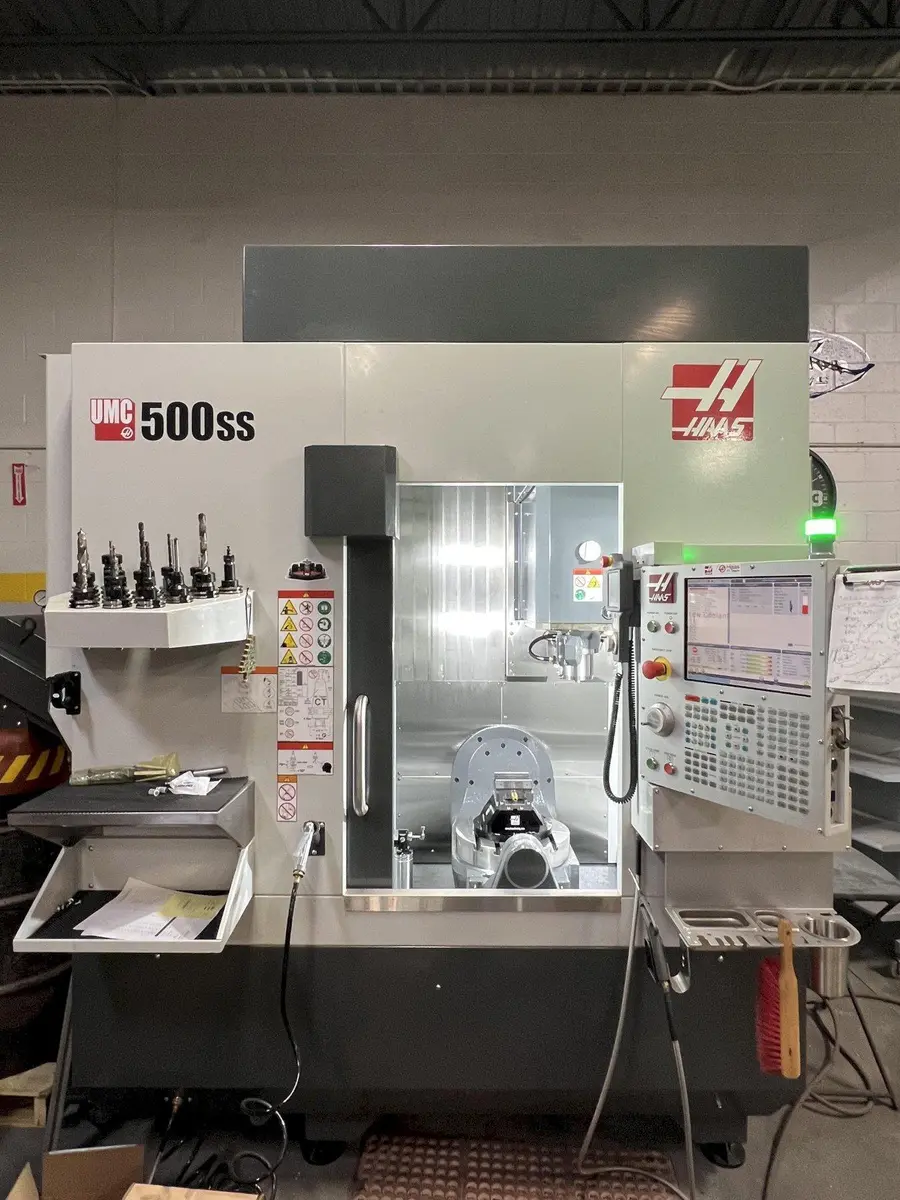

Used 2022 HAAS UMC-500SS | Universal Machining Centers

AGE (YEAR).................. 2022
TRAVELS X................... 24" (610 MM)
TRAVELS Y................... 16" (406 MM)
TRAVELS Z................... 16" (406 MM)
SPINDLE NOSE TO PLATTER MAX. 20" (508 MM)
SPINDLE NOSE TO PLATTER MIN. 4" (102 MM)

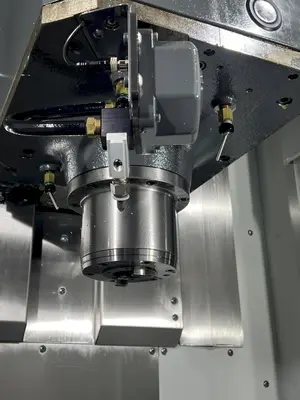

SPINDLE SPEED MAX........... 12,000 RPM
SPINDLE TAPER............... CT40
SPINDLE MOTOR............... 30 HP.
MAX CUTTING RATE............ 650 IPM
RAPIDS ON X................. 1200 IPM
RAPIDS ON Y................. 1200 IPM
RAPIDS ON Z................. 1200 IPM

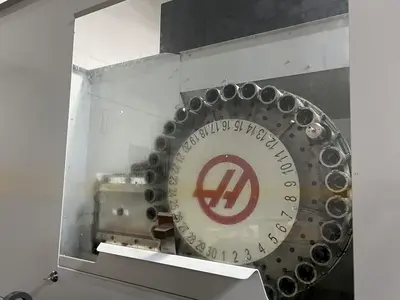

TOOL CHANGER................ 30 + 1 ATC
TOOL TO TOOL................ 1.8 SEC
CHIP TO CHIP................ 2.4 SEC
ELECTRICS................... 220 V / 3PH
WEIGHT...................... 12000 LBS

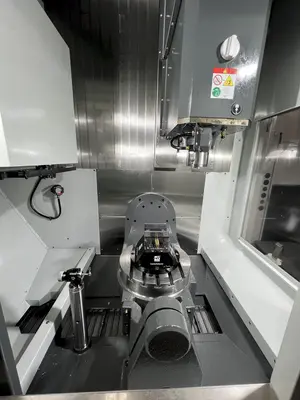

B AXIS TILT:
TRAVEL 120 DEG TO 35- DEG
MAX SPEED - 179 DEG/SEC
MAX TORQUE 1854 FT-LBF
BRAKE TORQUE 900 FT-LBF

C AXIS ROTATION:
TRAVEL: 360 DEG.
MAX SPEED: 179 DEG/SEC
MAX TORQUE 1854 FT-LBF
BRAKE TORQUE 900 FT-LBF
MAX PART SWING: 18"

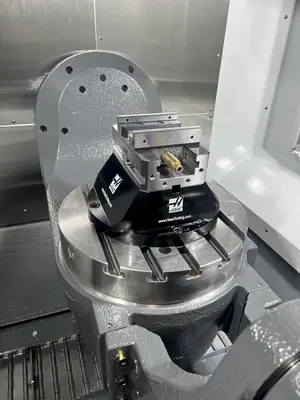

PLATTER INFO:
PLATTER DIAMETER: 15.7"
MAX WEIGHT CAP: 500 LBS
